| Model | Product Model | MV-VC2040-128G40-1T |
| Type | VC2000 Vision Controller，J6412，8GB+128G SSD+ 1THDD； | |
| Performance | CPU | J6412 |
| Memory | 8 GB | |
| Storage | 128 GB SSD + 1 TB HDD | |
| GPU | Intel® UHD Graphics for 10th Gen Intel® Processors | |
| Operating system | Unactivated 64-bit Windows 10 | |
| Encryption | Encryption method | Not supported |
| External interface | Video output | HDMI interface × 1, VGA interface × 1Supports dual display outputs, max. resolution 1920 × 1080 @60 Hz |
| Digital I/O | Opto-isolated input × 8, opto-isolated output × 8 | |
| Network interface | GigE interface × 4 | |
| USB interface | USB 2.0 × 2, USB 3.0 × 2 | |
| Serial port | RS-232 × 1, supports switching to RS-485 or RS-422 | |
| Light interface | Light interface with 24 VDC constant voltage × 4 (Max. current 3 A for single light interface, total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control) | |
| Electrical feature | Power supply | 24 VDC |
| Power consumption | Typ. 48 W (without light source) | |

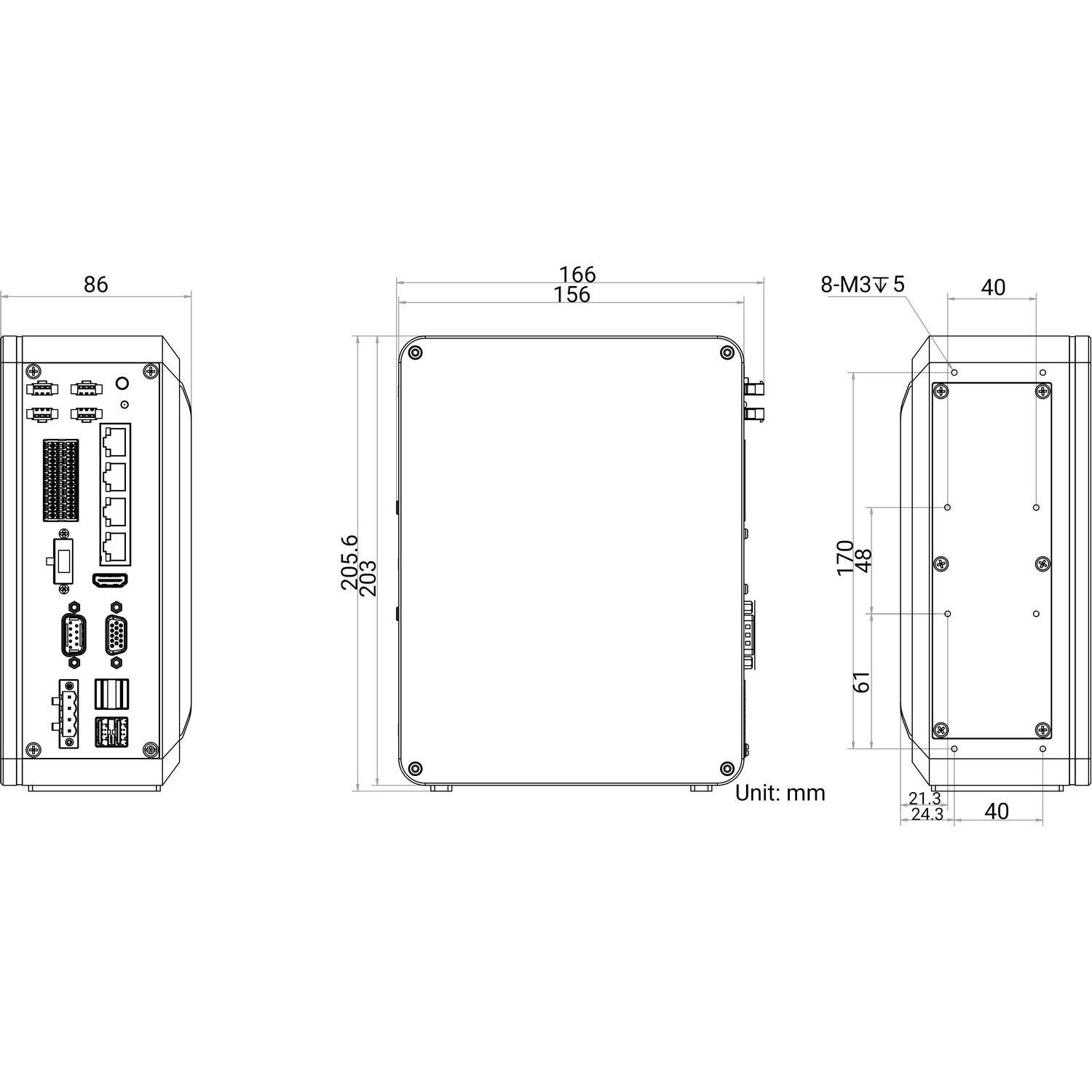

| Mechanical | Dimension | 166 mm × 205.6 mm × 86 mm (6.5" × 8.1" × 3.4") |
| Weight | Approx. 2 kg (4.4 lb.) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Certification | CCC, CE, KC |
MV-VC2040-128G40-1T
HIKROBOT Vision Controller Industrial PC
HIKROBOT Vision Controller Industrial PC
- Adopts Intel® Elkhart Lake processor to provide calculation.
- Supports GPIO function.
- Supports 4-channel light source control.
- Adopts GigE interfaces for stable data transmission.
- Built-in USB interface or dongle is optional.
