MV-VC2040-128G40-NN

HIKROBOT Vision Controller Industrial PC

Celeron J6412 CPU, 8GB RAM, 128GB SSD, 166x205.6x86mm, Win10

HIKROBOT Vision Controller Industrial PC

  • Adopts Intel® Elkhart Lake processor to provide calculation.
  • Supports GPIO function.
  • Supports 4-channel light source control.
  • Adopts GigE interfaces for stable data transmission.
  • Built-in USB interface or dongle is optional.

Product Downloads:

DrawingData SheetUser Manual

Compare

ModelProduct ModelMV-VC2040-128G40-NN
TypeVC2000 Vision Controller,J6412,8GB+128G SSD;
PerformanceCPU J6412
Memory8 GB
Storage128 GB SSD
GPUIntel® UHD Graphics for 10th Gen Intel® Processors
Operating systemUnactivated 64-bit Windows 10
EncryptionEncryption methodNot supported
External interfaceVideo outputHDMI interface × 1, VGA interface × 1Supports dual display outputs, max. resolution 1920 × 1080 @60 Hz
Digital I/OOpto-isolated input × 8, opto-isolated output × 8
Network interfaceGigE interface × 4
USB interfaceUSB 2.0 × 2, USB 3.0 × 2
Serial portRS-232 × 1, supports switching to RS-485 or RS-422
Light interfaceLight interface with 24 VDC constant voltage × 4 (Max. current 3 A for single light interface, total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control)
Electrical featurePower supply24 VDC
Power consumptionTyp. 48 W (without light source)

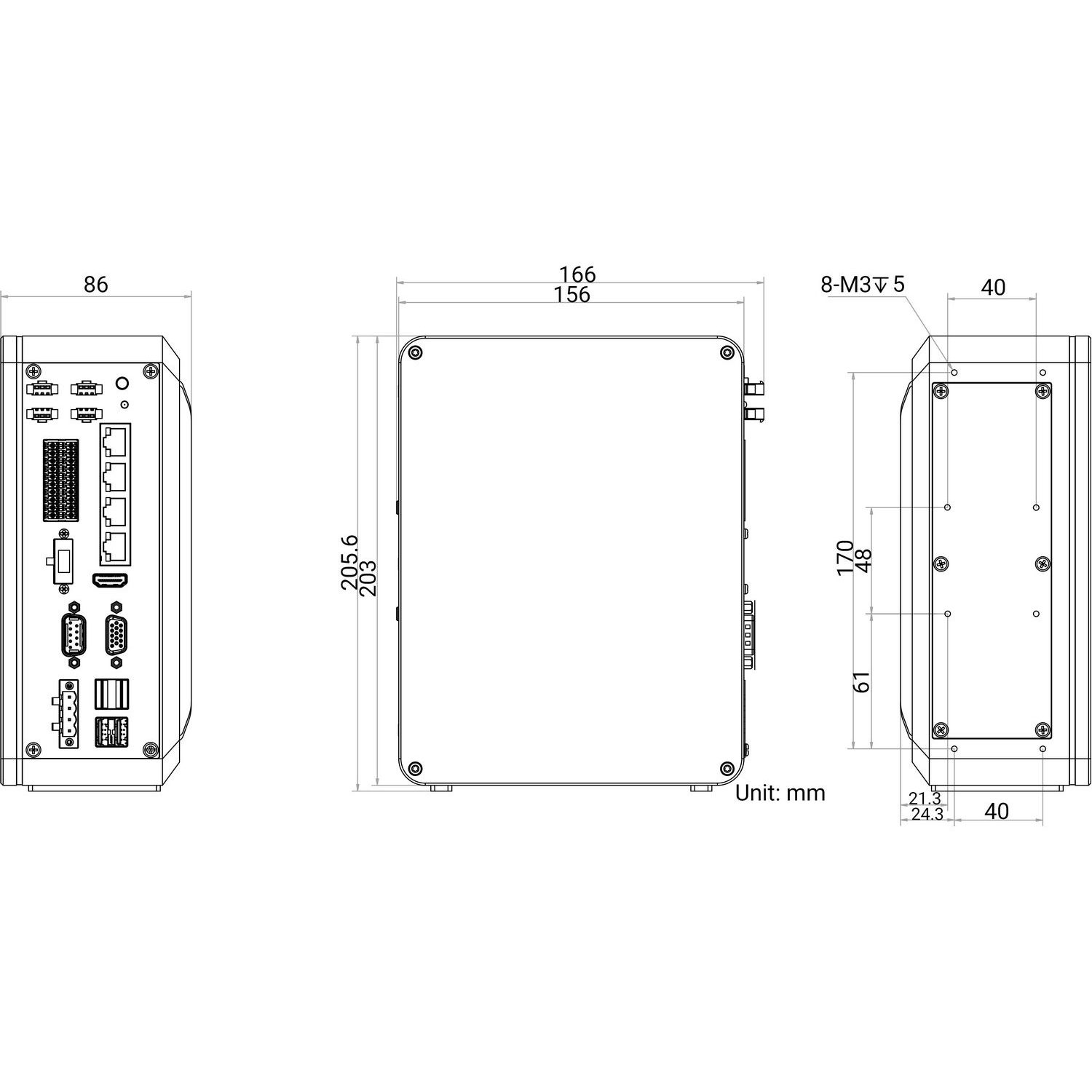

MechanicalDimension166 mm × 205.6 mm × 86 mm (6.5" × 8.1" × 3.4")
WeightApprox. 2 kg (4.4 lb.)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
GeneralCertificationCCC, CE, KC
