MV-VC3101P-128G60

HIKROBOT Vision Controller Industrial PC

G4900 CPU, 8GB RAM, 128GB SSD, 161.4x208.5x105.5mm, Win10

HIKROBOT Vision Controller Industrial PC

  • Equipped with desktop-level Intel 8th generation CPU, providing powerful computing performance
  • Powerful expansion slot configuration to meet the expansion of commonly used image acquisition interfaces for machine vision, with stable performance
  • Support GPIO function, output supports NPN/PNP switching
  • Adopt Intel Gigabit network port, support high-speed and stable image transmission
  • Support PCIE3.0 x16 interface
  • Optional built-in USB interface or built-in dongle device, easy to deploy and maintain on site
  • Additional light source and IO expansion modules, up to 2 modules supported

Product Downloads:

User ManualDrawingData Sheet

Compare

ModelModelMV-VC3101P-128G60
NameG4900, 8GB+128G SSD, no POE, support PCIE expansion, no VM encryption
PerformanceProcessorIntel® CeleronTM G4900
Memory8GB
Storage128G SSD
Graphics ProcessorIntel® HD Graphics 610
Operating SystemWindows 10 64-bit, not activated
External InterfaceVideo Output1 HDMI port, 1 VGA port
Supports simultaneous independent display output
Maximum support 1920 × 1080 @60Hz
Digital I/OSupports 3-way optocoupler isolation input
Supports 8-way optocoupler isolation output (supports NPN/PNP switching)
Network Interface6 Intel Gigabit Ethernet port
USB port4 USB2.0 ports
4 USB3.0 ports
1 built-in USB2.0 port
Serial port2 full-function RS-232
Expansion port1 PCIE3.0 x16 port
Electrical characteristicsTypical power consumption95 W
Power supply24 VDC

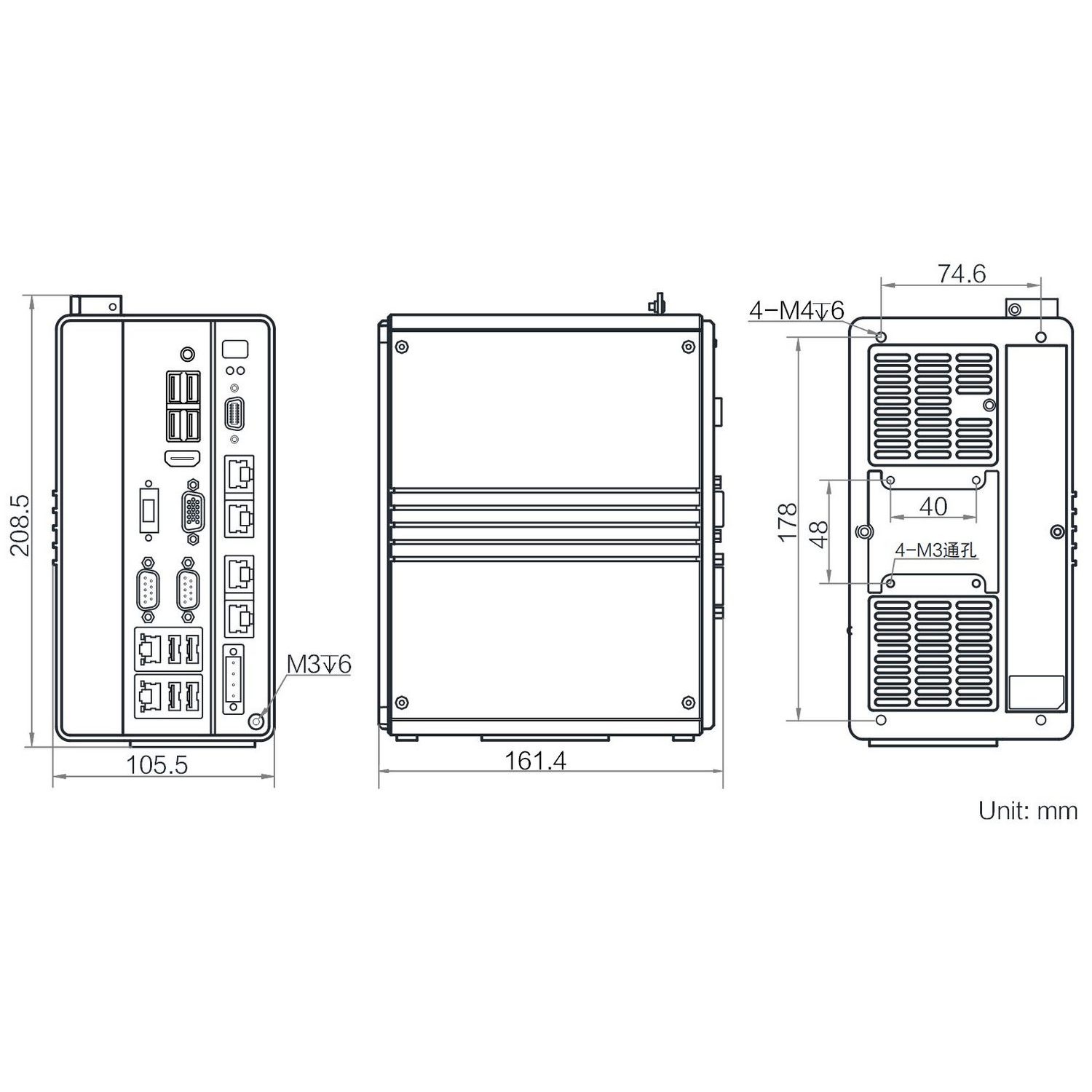

StructureDimensions161.4 mm×208.5 mm×105.5 mm
WeightApprox. 2.1 kg
Temperature0 ~ 50 °C
Humidity20%~95% RH non-condensing
General SpecificationsCertificationCE
