| Model | Model | MV-VC3101X-128G60 |
| Name | VC3000X visual controller, G6900, 8GB+128G SSD, no POE, support PCIE expansion; | |
| Performance | Processor | Intel@ Core 12th CeleronTM G6900@ LGA1700 type CPU.Max.65W TDP |
| Memory | 8GB | |
| Storage | 128G SSD | |
| Graphics Processor | Intel® HD Graphics 710 | |
| Operating System | Windows 10, not activated | |
| Encryption | Encryption Method | None |
| External Interface | Video Output | 1 HDMI Port, 1 VGA Port Supports simultaneous independent display output HDMI port supports up to 1920 × 1080 @60Hz, VGA port supports up to 1920 × 1440 @60Hz |
| Digital I/O | Support 8-way optocoupler isolation input Support 16-way optocoupler isolation output (support NPN/PNP switching) | |
| Network interface | 6 Gigabit Ethernet ports, including 2 Intel Gigabit Ethernet ports and 4 Netcom Gigabit Ethernet ports | |
| USB interface | 4 USB2.0 interfaces 4 USB3.0 interfaces | |
| Serial port | 2-way full-function RS-232, support RS-485 and RS-422 switching | |
| Light source interface | 4-way 24 V constant voltage light source driver, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W | |
| Electrical Characteristics | Power Supply | 24 VDC |
| Typical Power Consumption | 144 W | |

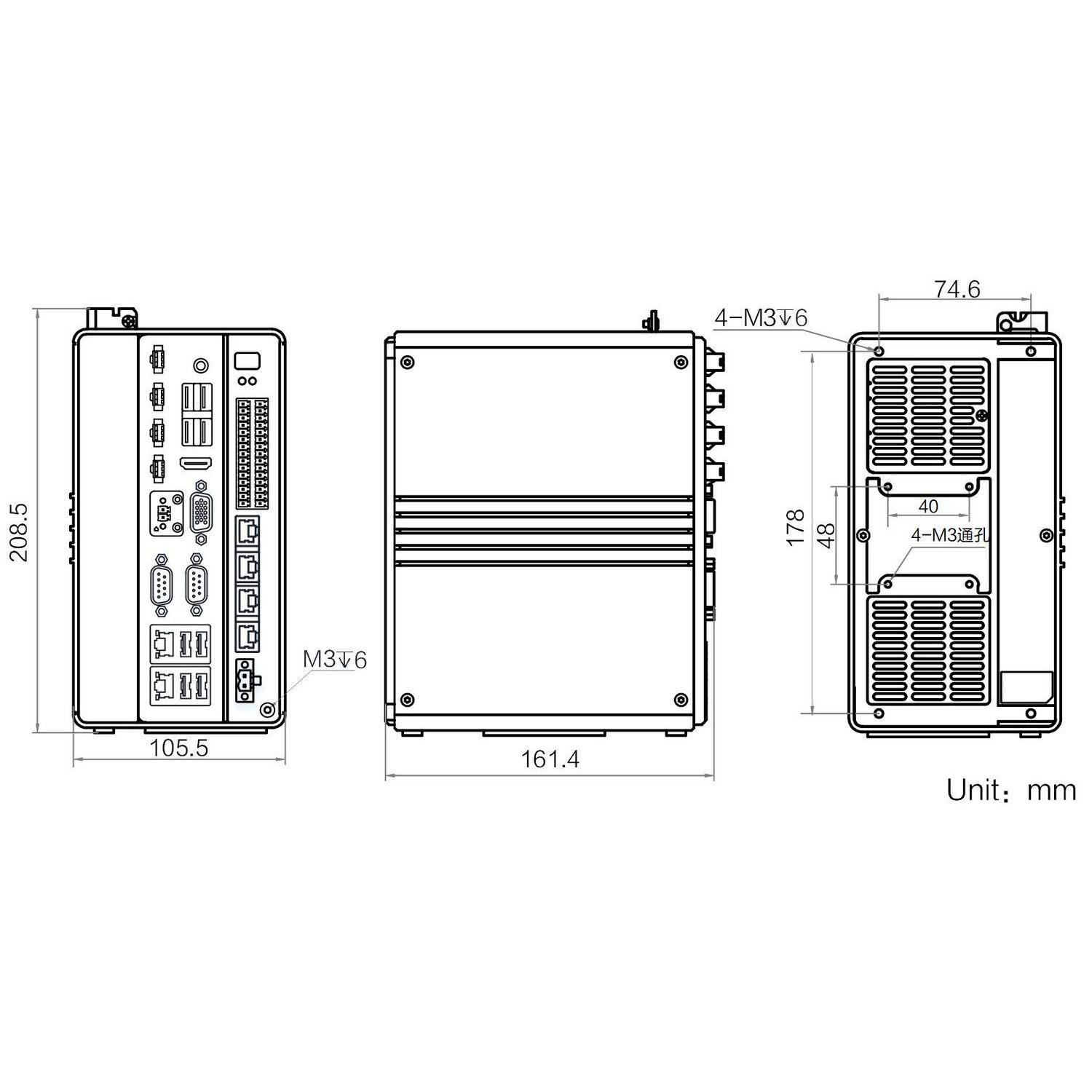

| Structure | Dimensions | 161.4 mm × 208.5 mm × 105.5 mm |
| Weight | Approx. 2.1 kg | |
| Temperature | 0 ~ 50 °C | |
| Humidity | 20% ~ 95% RH non-condensing | |
| General Specifications | Certification | CE, KC |

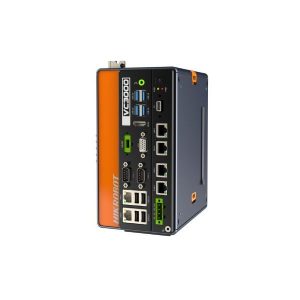

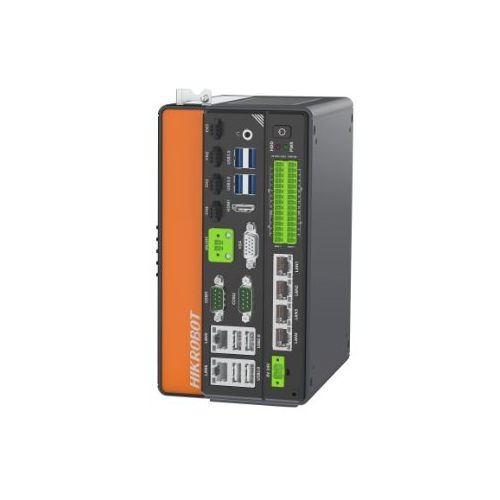

MV-VC3101X-128G60
HIKROBOT Vision Controller Industrial PC
HIKROBOT Vision Controller Industrial PC
- Equipped with desktop-level Intel 12th generation CPU, providing powerful computing performance
- Powerful expansion slot configuration, meeting the expansion of commonly used image acquisition interfaces for machine vision, stable performance
- Support 24-way GPIO input and output functions, output supports NPN/PNP switching
- Adopts Gigabit network port, supports high-speed and stable image transmission
