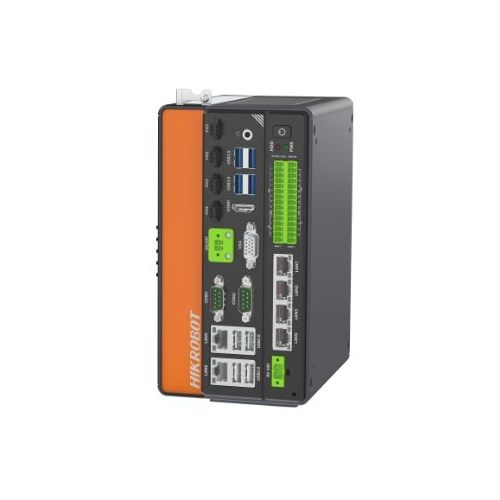

MV-VC3102X-128G60

HIKROBOT Vision Controller Industrial PC

8 GB RAM, G6900 CPU, 128 GB SSD + 2 TB HDD, mSATA × 1, Win10 x64

HIKROBOT Vision Controller Industrial PC

  • Equipped with desktop-level Intel 12th generation CPU, providing powerful computing performance
  • Powerful expansion slot configuration, meeting the expansion of commonly used image acquisition interfaces for machine vision, stable performance
  • Support 24-way GPIO input and output functions, output supports NPN/PNP switching
  • Adopts Gigabit network port, supports high-speed and stable image transmission

Product Downloads:

DrawingData SheetUser Manual

Compare

ModelModelMV-VC3102X-128G60
NameVC3000X visual controller, G6900, 8GB+128G SSD+2T HDD, no POE, support PCIE expansion;
PerformanceProcessorIntel@ Core 12th CeleronTM G6900@ LGA1700 type CPU.Max.65W TDP
Memory8GB
Storage128G SSD and 2T HDD, 1 mSATA expansion interface
Graphics processorIntel® HD Graphics 710
Operating systemWindows 10, not activated
EncryptionEncryption methodNone
External interfaceVideo output1 HDMI port, 1 VGA port
Supports simultaneous independent display output
HDMI port supports up to 1920 × 1080 @60Hz, VGA port supports up to 1920 × 1440 @60Hz
Digital I/OSupport 8-way optocoupler isolation input
Support 16-way optocoupler isolation output (support NPN/PNP switching)
Network interface6 Gigabit Ethernet ports, including 2 Intel Gigabit Ethernet ports and 4 Netcom Gigabit Ethernet ports
USB interface4 USB2.0 interfaces
4 USB3.0 interfaces
Serial port2-way full-function RS-232, support RS-485 and RS-422 switching
Light source interface4-way 24 V constant voltage light source driver, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W
Electrical CharacteristicsPower Supply24 VDC
Typical Power Consumption144 W

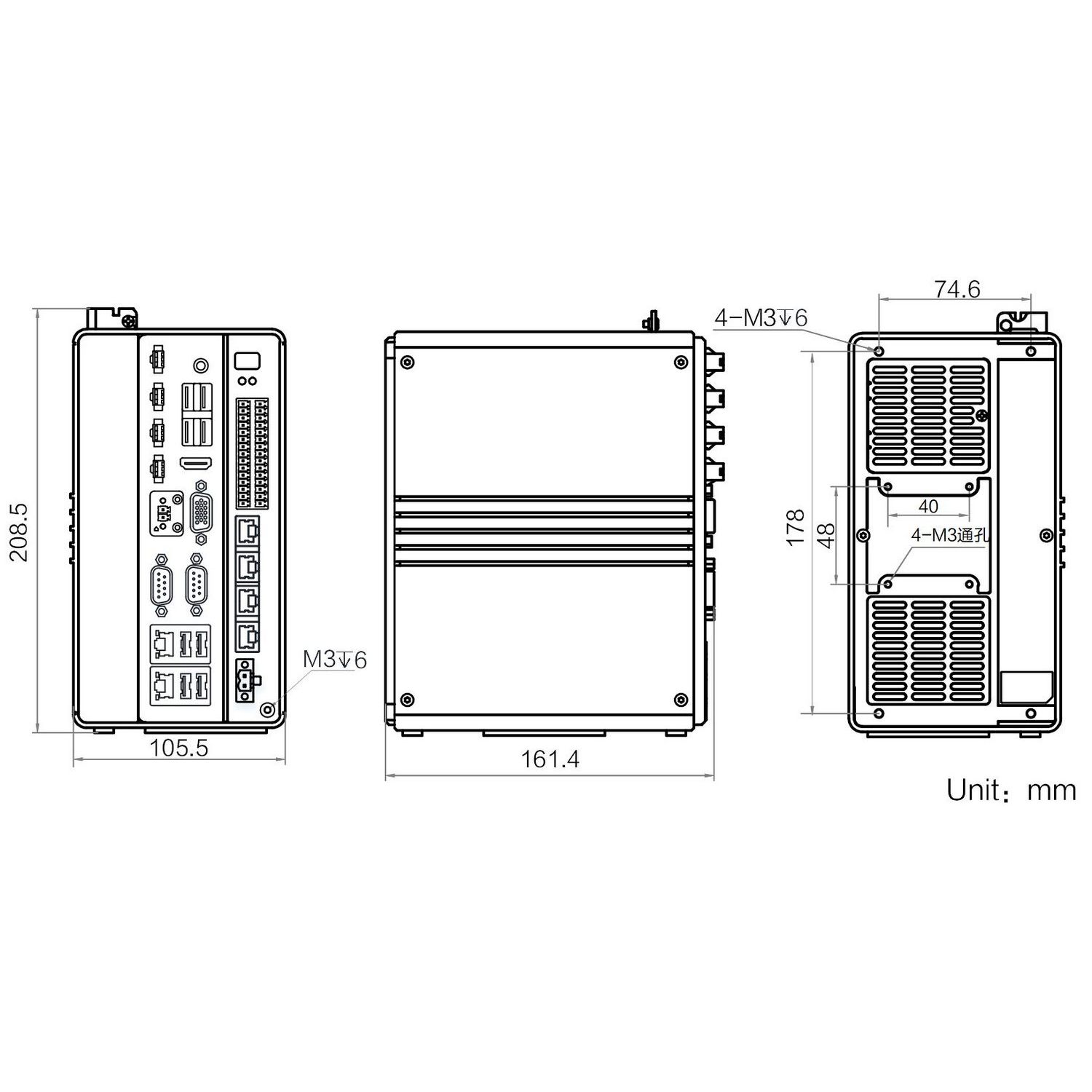

StructureDimensions161.4 mm × 208.5 mm × 105.5 mm
WeightApprox. 2.1 kg
Temperature0 ~ 50 °C
Humidity20% ~ 95% RH non-condensing
General SpecificationsCertificationCE, KC
