| Model | Model | MV-VC3301H-128G60 |
| Name | I3-8100, 8GB+128G SSD, no POE, supports PCIE expansion; | |
| Performance | Processor | Intel® CoreTM i3-8100 |
| Memory | 8 GB | |
| Storage | 128G SSD | |
| Graphics Processor | Intel® HD Graphics 630 | |
| Operating System | Windows 10 64-bit, not activated | |
| Encryption | Encryption Method | None |
| External Interface | Video Output | 1 HDMI Port, 1 VGA Port Supports simultaneous independent display output Maximum support 1920 × 1080 @60Hz |
| Digital I/O | Support 8-way optocoupler isolation input Support 16-way optocoupler isolation output (support NPN/PNP switching) | |
| Network interface | 6 Gigabit Ethernet ports | |
| USB interface | 4 USB2.0 interfaces 4 USB3.0 interfaces 1 built-in USB2.0 interface | |
| Serial port | 2-way full-function RS-232, support RS-485 and RS-422 switching | |
| Light source interface | 4-way 24 V constant voltage light source driver, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W | |
| Expansion interface | 1 PCIE3.0 x16 interface | |
| Electrical characteristics | Power supply | 24 VDC |
| Typical power consumption | 95 W | |

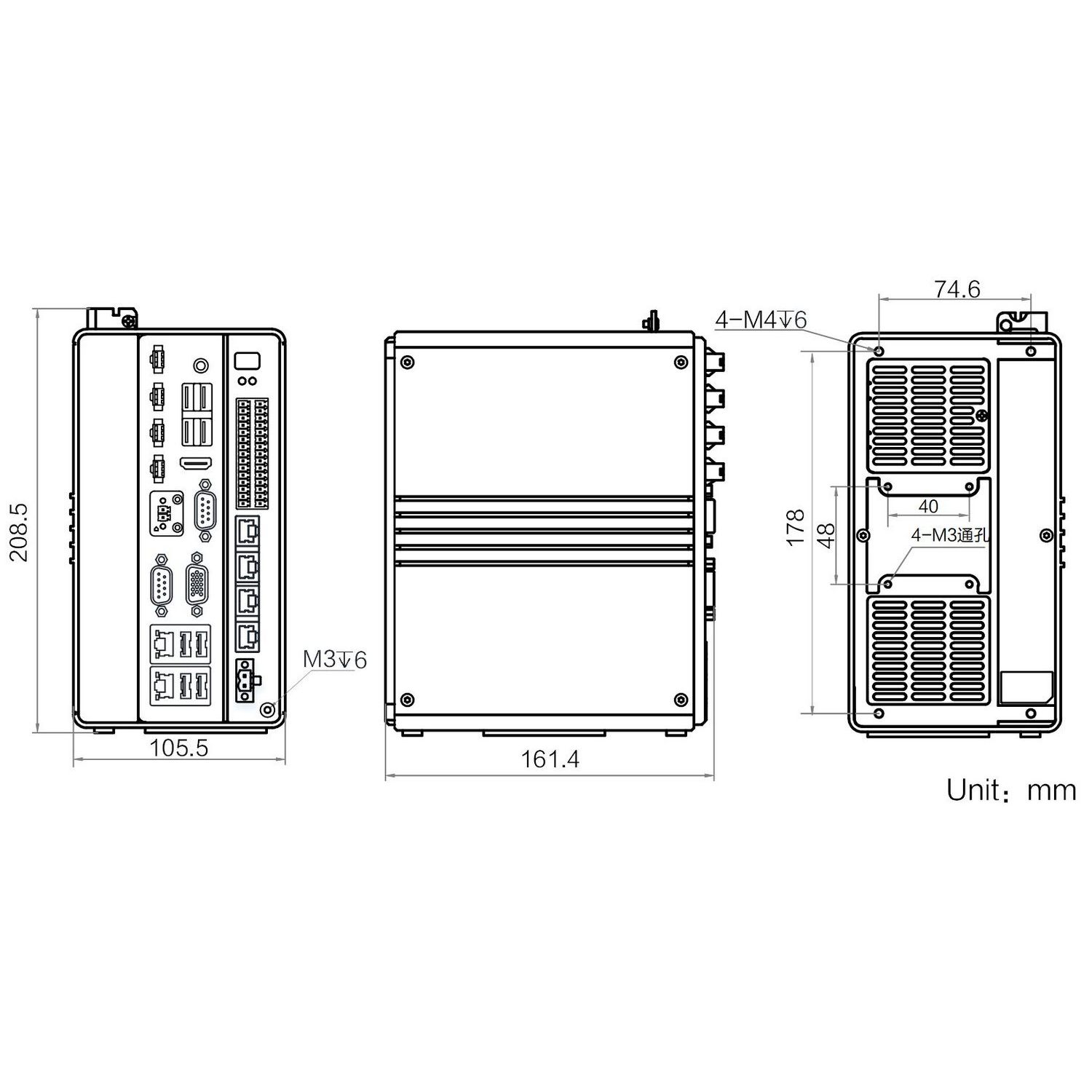

| Structure | Dimensions | 161.4 mm × 208.5 mm × 105.5 mm |
| Weight | Approximately 2.1 kg | |
| Temperature | 0 ~ 50 °C | |
| Humidity | 20%~95% RH without condensation | |
| General Specifications | Certification | CE,KC |
MV-VC3301H-128G60

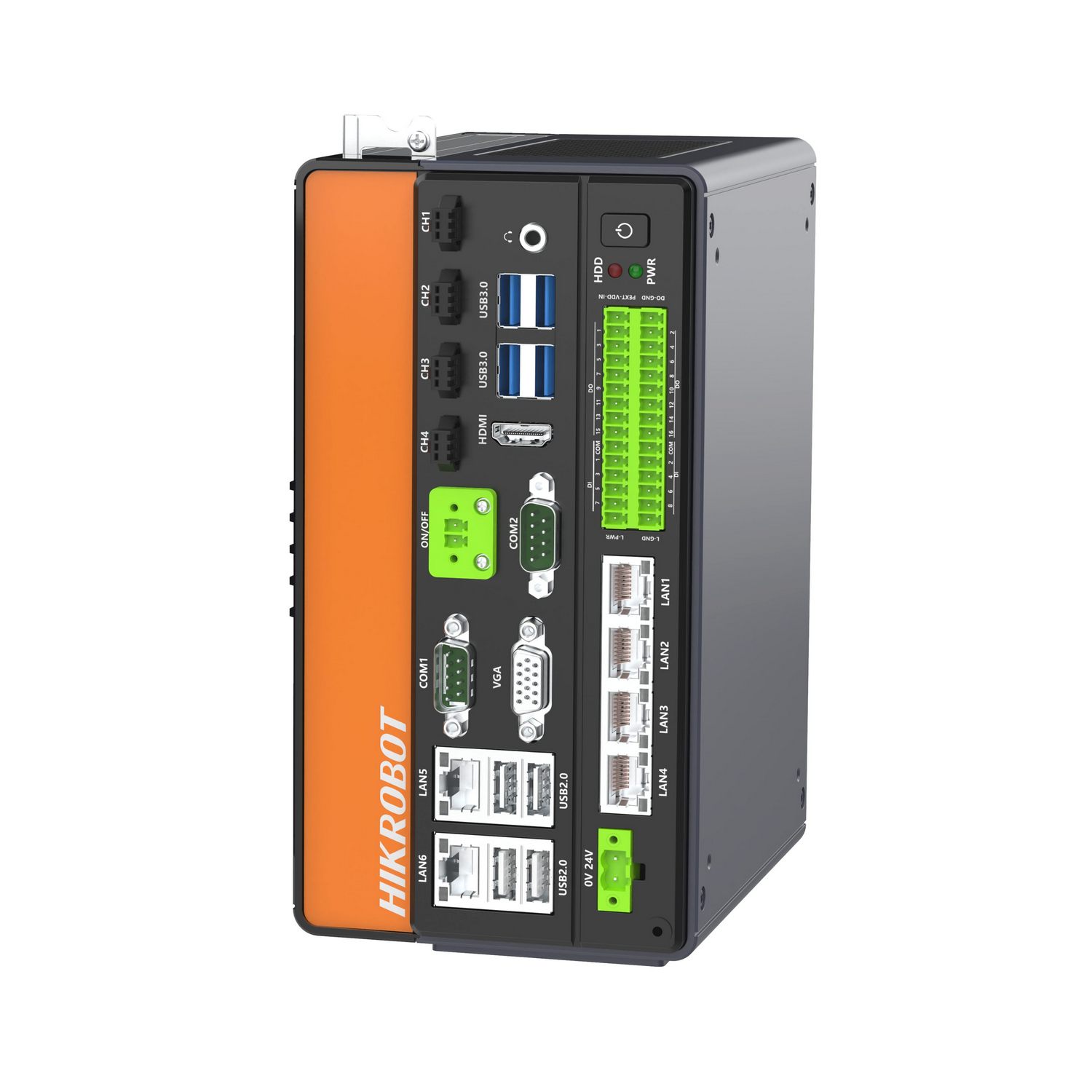

HIKROBOT Vision Controller Industrial PC
HIKROBOT Vision Controller Industrial PC
- Equipped with desktop-level Intel 8th generation CPU, providing powerful computing performance
- Powerful expansion slot configuration to meet the expansion of commonly used image acquisition interfaces for machine vision, stable performance
- Support GPIO function, output supports NPN/PNP switching
- Support PCIE3.0 x16 interface
- Optional built-in USB interface for easy on-site deployment and maintenance
