MV-VC3301P-128G60

HIKROBOT Vision Controller Industrial PC

I3-8100 CPU, 8GB RAM, 128GB SSD, 161.4x208.5x105.5mm, Win10

HIKROBOT Vision Controller Industrial PC

  • Equipped with desktop-level Intel 8th generation CPU, providing powerful computing performance
  • Powerful expansion slot configuration, meeting the expansion of commonly used image acquisition interfaces for machine vision, stable performance
  • Support GPIO function, output supports NPN/PNP switching
  • Adopt Intel Gigabit network port, support high-speed and stable image transmission
  • Support PCIE3.0 x16 interface
  • Optional built-in USB interface or built-in dongle device, easy to deploy and maintain on site
  • Additional light source and IO expansion modules, up to 2 modules supported

Product Downloads:

User ManualData SheetDrawing

Compare

ModelModelMV-VC3301P-128G60
NameI3-8100, 8GB+128G SSD, no POE, supports PCIE expansion, without VM encryption
PerformanceProcessorIntel® CoreTM i3-8100
Memory8 GB
Storage128G SSD
Graphics ProcessorIntel® HD Graphics 630
Operating SystemWindows 10 64-bit, not activated
External InterfaceVideo Output1 HDMI port, 1 VGA port
Support simultaneous independent display output
Maximum support 1920 × 1080 @60Hz
Digital I/OSupport 3-way optocoupler isolation input
Support 8-way optocoupler isolation output (support NPN/PNP switching)
Network Interface6 Intel Gigabit Network Ports
USB Interface4 USB2.0 Interfaces
4 USB3.0 Interfaces
1 built-in USB2.0 Interface
Serial Port2-way full-function RS-232
Expansion Interface1 PCIE3.0 x16 interface
Electrical characteristicsPower supply24 VDC
Typical power consumption95 W

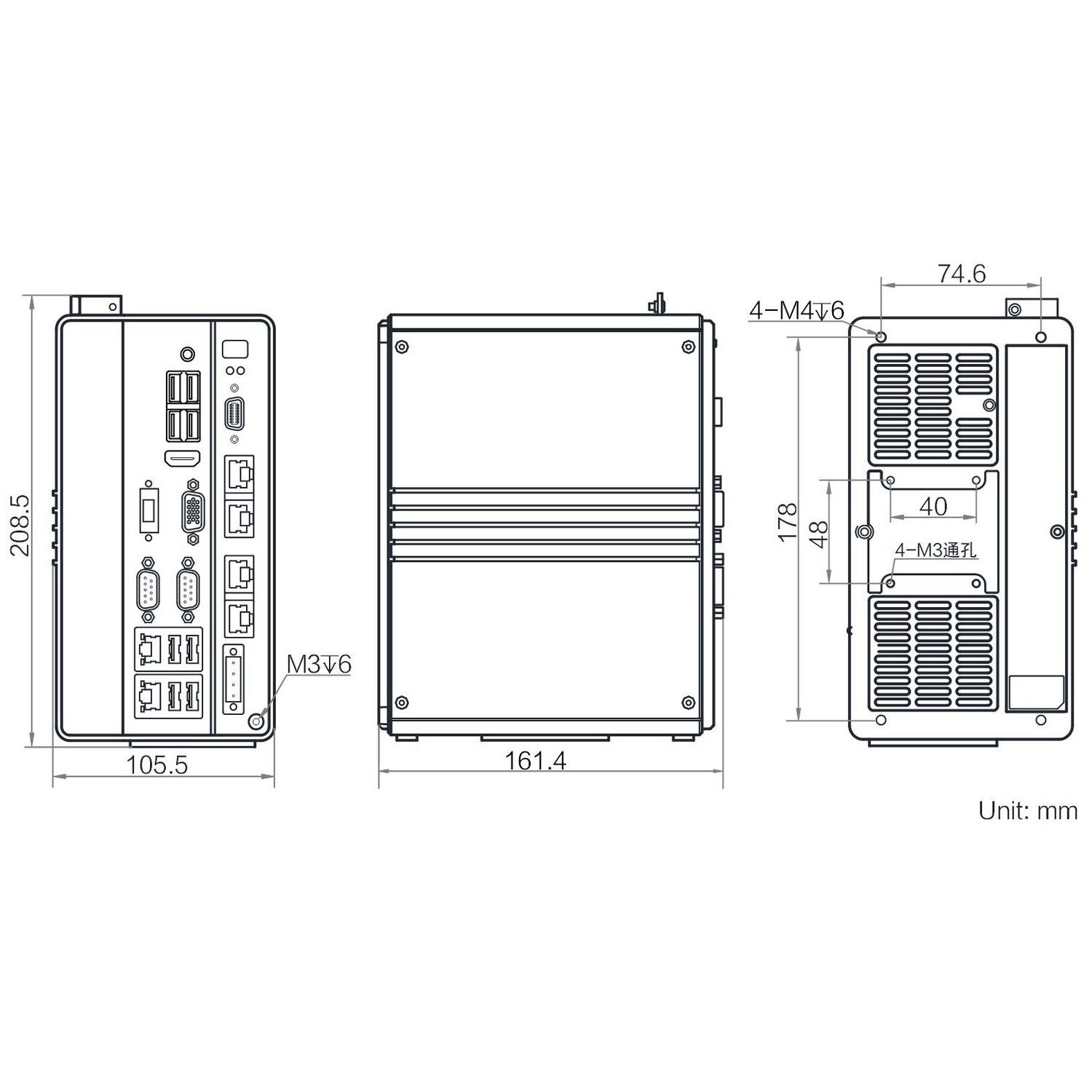

StructureDimensions161.4 mm×208.5 mm×105.5 mm
WeightApproximately 2.1 kg
Temperature0 ~ 50 °C
Humidity20%~95% RH non-condensing
General specificationsCertificationCE
