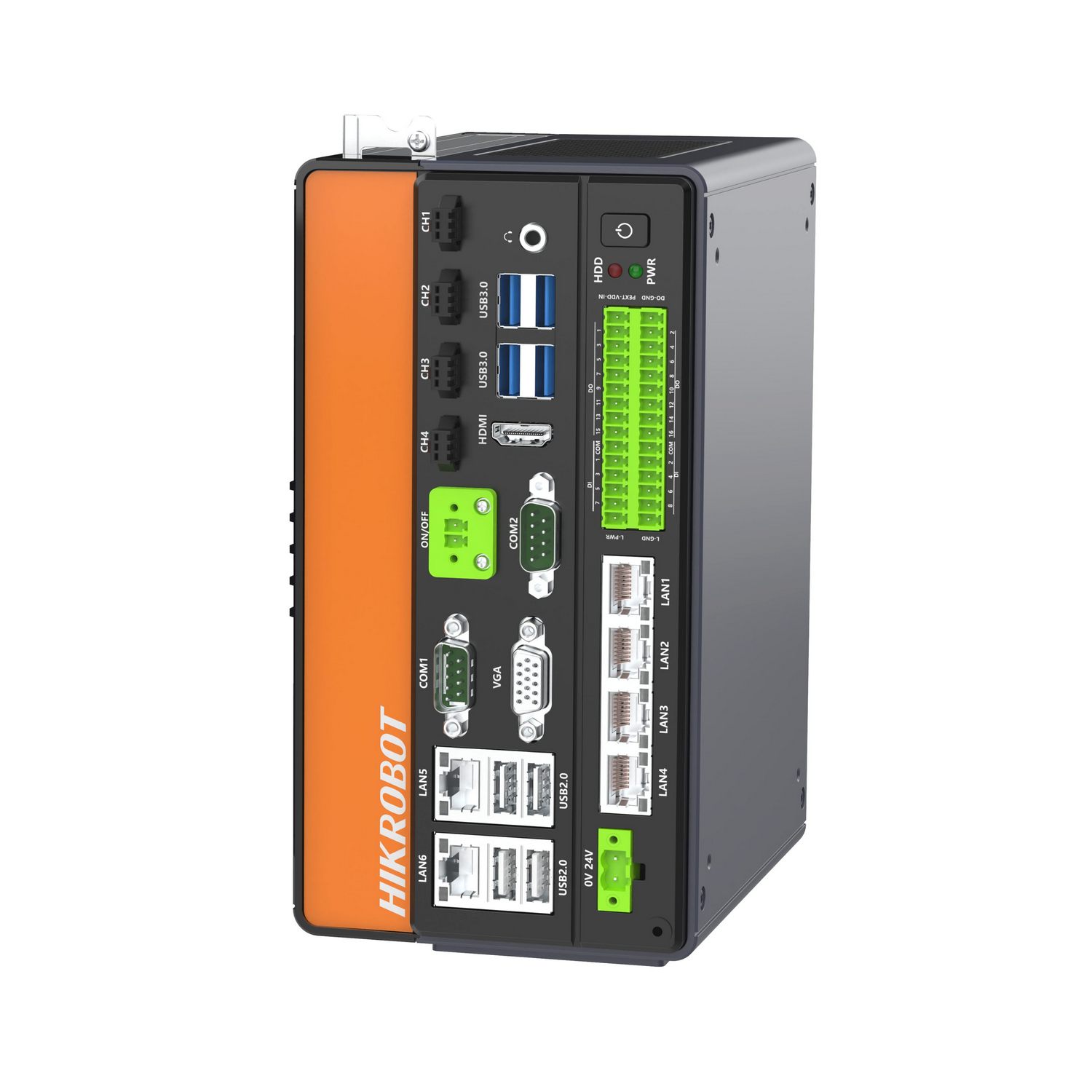

MV-VC3704H-128G60

HIKROBOT Vision Controller Industrial PC

16 GB RAM, i7-8700 CPU, 128 GB SSD + 2 TB HDD, Win10 x64

HIKROBOT Vision Controller Industrial PC

  • Equipped with desktop-level Intel 8th generation CPU, providing powerful computing performance
  • Powerful expansion slot configuration, meeting the expansion of commonly used image acquisition interfaces for machine vision, stable performance
  • Supports GPIO function, output supports NPN/PNP switching
  • Supports PCIE3.0 x16 interface
  • Optional built-in USB interface for easy on-site deployment and maintenance

Product Downloads:

User ManualDrawingData Sheet

Compare

ModelModelMV-VC3704H-128G60
NameI7-8700, 16GB+128G SSD+2T HDD, no POE, support PCIE expansion;
PerformanceProcessorIntel® CoreTM i7-8700
Memory16 GB
Storage128G SSD and 2T HDD, 1 mSATA expansion interface
Graphics processorIntel® HD Graphics 630
Operating systemWindows 10 64-bit, not activated
EncryptionEncryption methodNone
External interfaceVideo output1 HDMI port, 1 VGA port
Supports simultaneous independent display output
Maximum support 1920 × 1080 @60Hz
Digital I/OSupport 8-way optocoupler isolation input
Support 16-way optocoupler isolation output (support NPN/PNP switching)
Network interface6 Gigabit Ethernet ports
USB interface4 USB2.0 interfaces
4 USB3.0 interfaces
1 built-in USB2.0 interface
Serial port2-way full-function RS-232, support RS-485 and RS-422 switching
Light source interface4-way 24 V constant voltage light source driver, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W
Expansion interface1 PCIE3.0 x16 interface
Electrical characteristicsPower supply24 VDC
Typical power consumption95 W

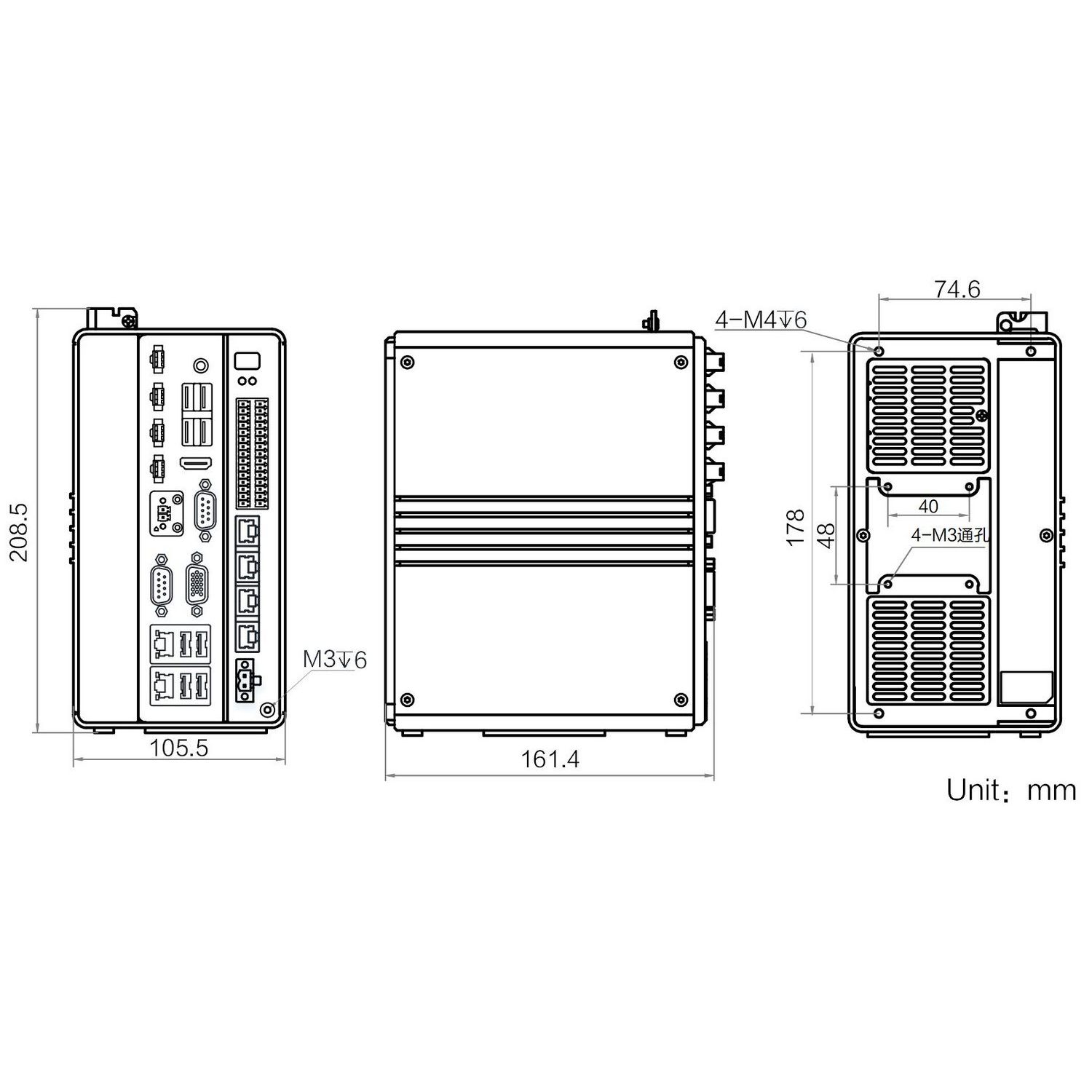

StructureDimensions161.4 mm × 208.5 mm × 105.5 mm
WeightApproximately 2.1 kg
Temperature0 ~ 50 °C
Humidity20%~95% RH without condensation
General SpecificationsCertificationCE, KC
