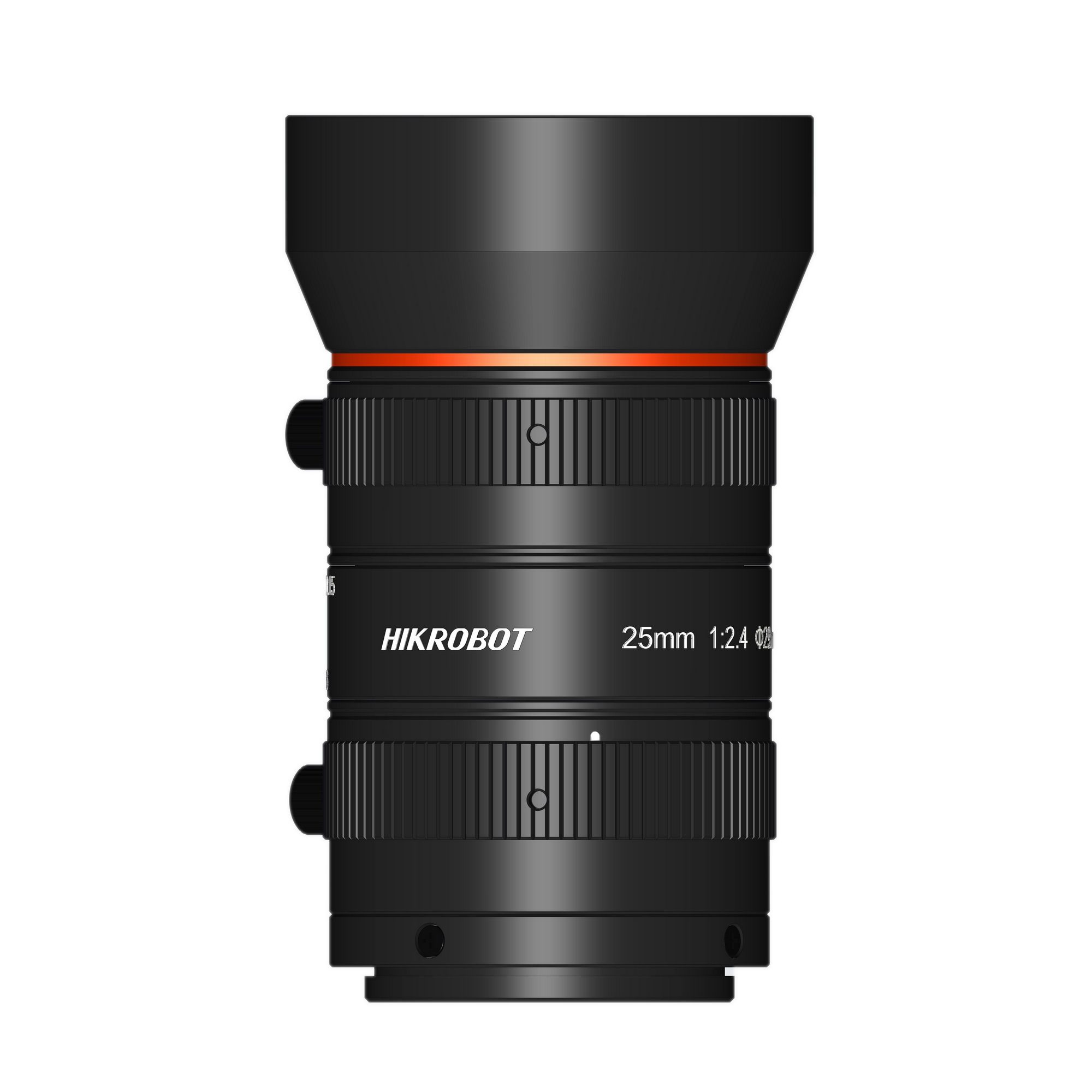

MVL-AF2524M-M42

HIKROBOT Lens, FA Series, AF

25mm, F2.4 ~ F16, Ø 29mm, M42 × P1

HIKROBOT Lens, FA Series, AF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

Data SheetDrawing

SKU: MVL-AF2524M-M42 Categories: , Tags: , , ,
Compare
  • High precision lens, suitable for 4K7U linear array cameras
  • Excellent image clarity consistency, large aperture, low distortion
  • Ultra high resolution at maximum aperture F2.4
  • Maximum image size Φ29mm

ModelProduct ModelMVL-AF2524M-M42
Type25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X, M42-Mount
PerformanceFocal length25 mm
F-NumberF2.4 ~ F16
Image SizeΦ29 mm
Optical Distortion-0.34%
Magnification Range0.143x ~ 0.001x
Working Distance Range150 ~ inf mm
MechanicalIris ControlManual
Focus ControlManual
Filter ThreadM58 × P0.75
MountM42 × P1
Flange Back Length12 mm

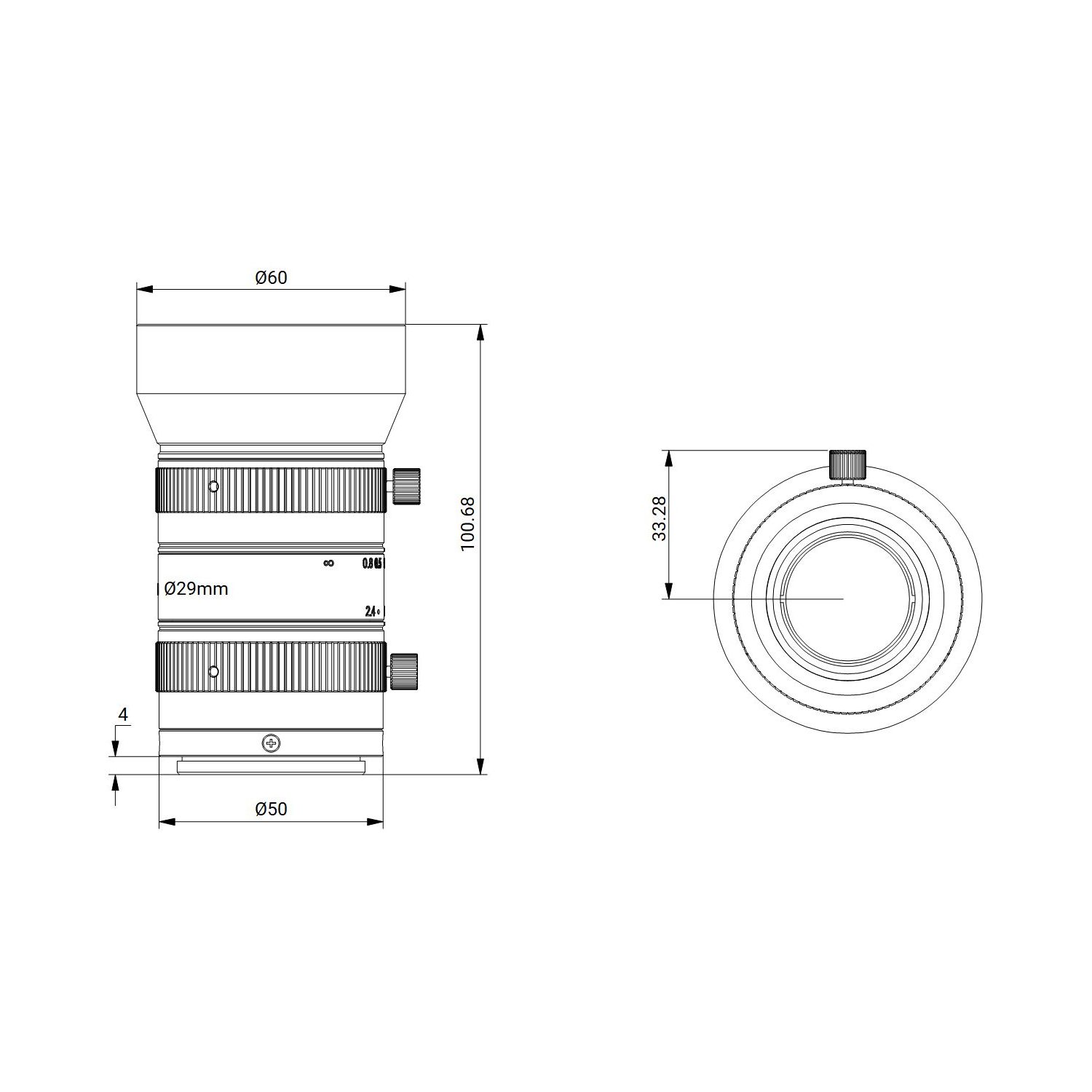

DimensionΦ60 × 96.68 mm
Weight501 g
Temperature-10 ~ 50°C
GeneralCertificationRoHS2.0
