- Ultra high resolution and consistency of image clarity
- Bigger aperture, lower distortion and higher relative illumination rate
- Achromatic optical system design, Better imaging performance with color camera
- Excellent vibration resistance performance, optical axis shifting within pixel level
- Good stability at high and low temperature
- Multilayer and broadband coating design, compatible with visible and near-infrared applications

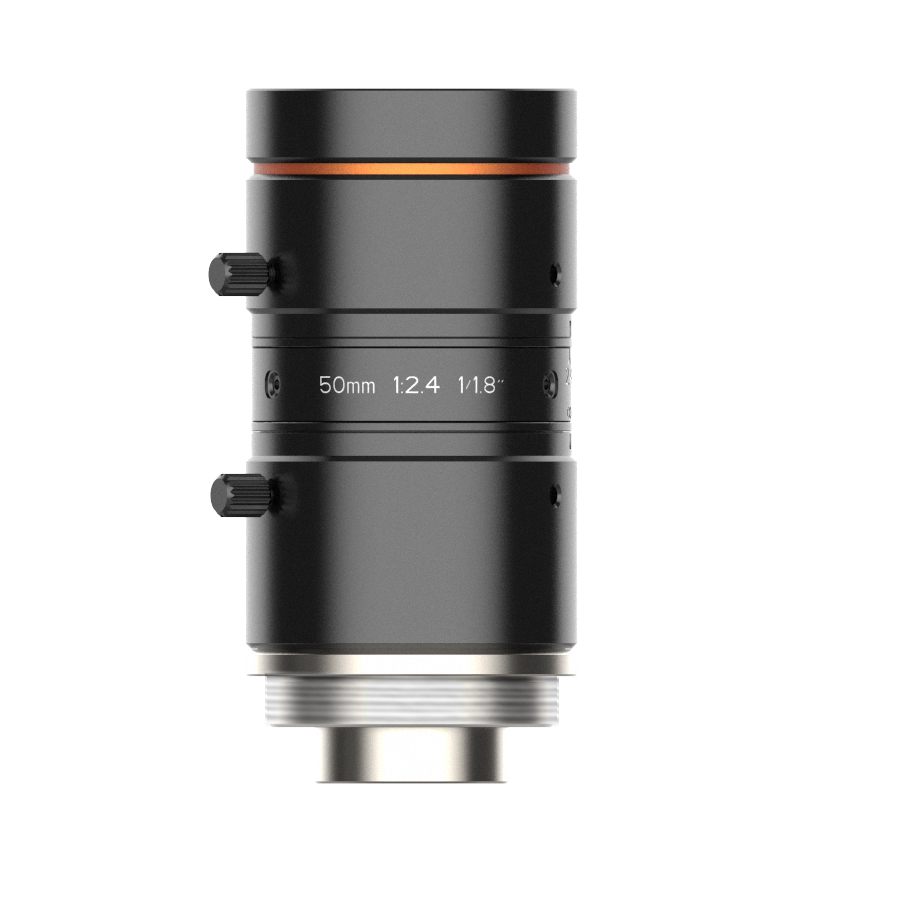

MVL-HF5024M-10MP
HIKROBOT Lens, FA Series, HF
HIKROBOT Lens, FA Series, HF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | MVL-HF5024M-10MP |
| Type | 50mm, F2.4, 1/1.8″, 10MP Lens，C-Mount | |
| Performance | Focal length | 50 mm |
| F-Number | F2.4 ~ F16 | |
| Image Size | Φ9 mm(1/1.8”) | |
| Distortion | 0.03% | |
| Minimum Object Distance | 0.3 m | |
| Field of View | D（8.96mm）：9.10° H（7.38mm）：7.48° V （4.92mm）：5.00° | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M27 × 0.5 | |
| Mount | C-Mount | |
| Flange Back Length | 17.526 mm | |

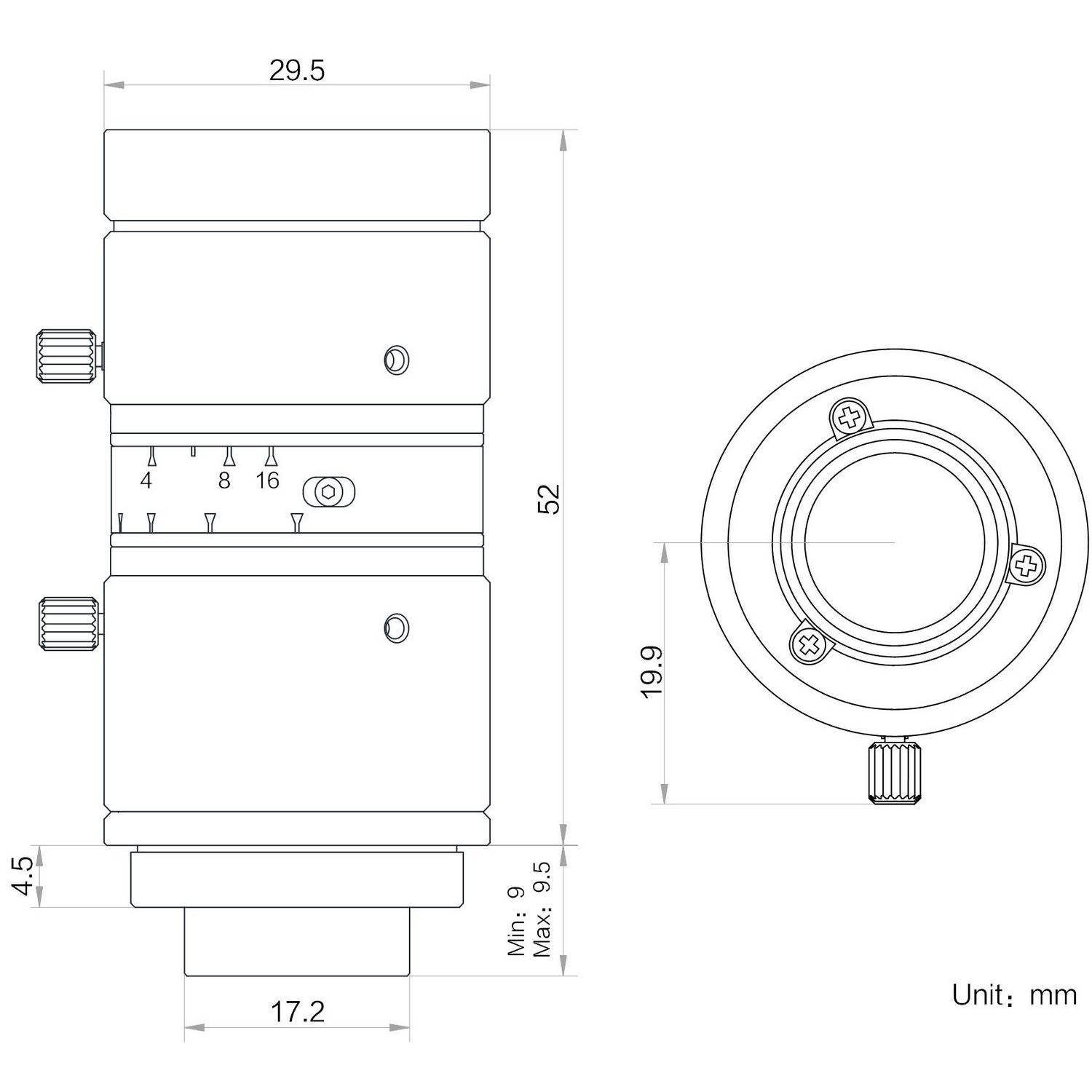

| Dimension | Φ29.5 × 52 mm | |
| Weight | 85.9 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
