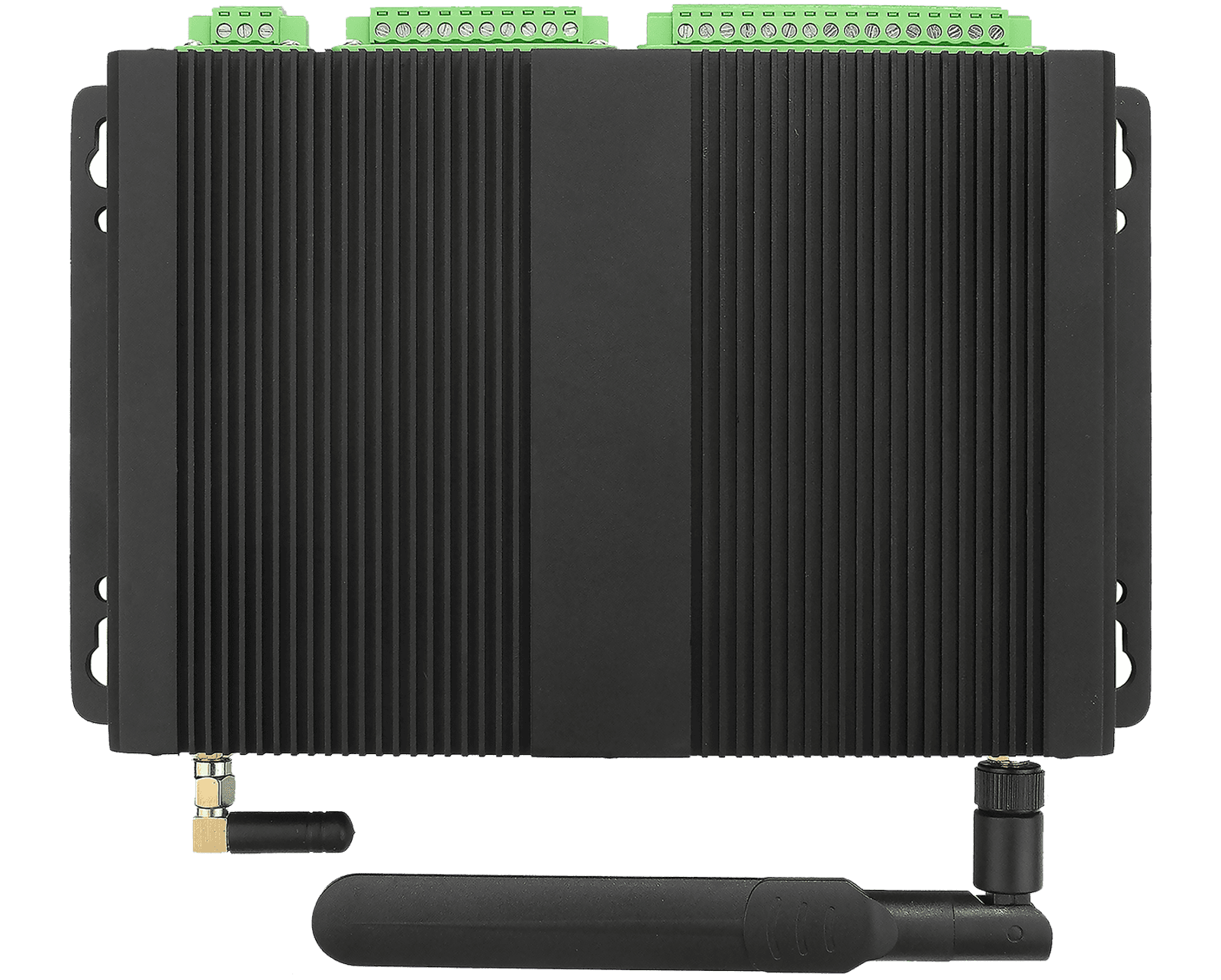

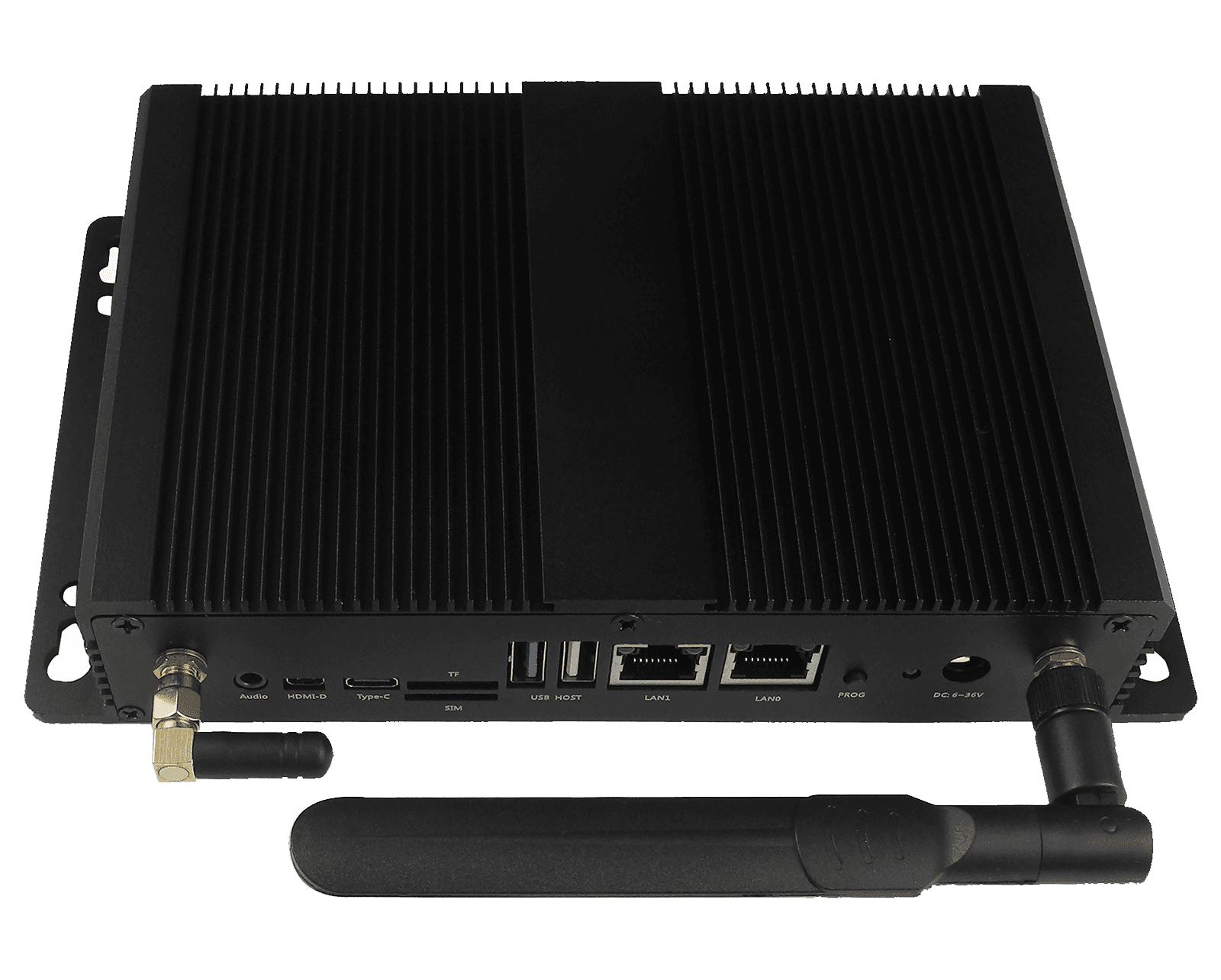

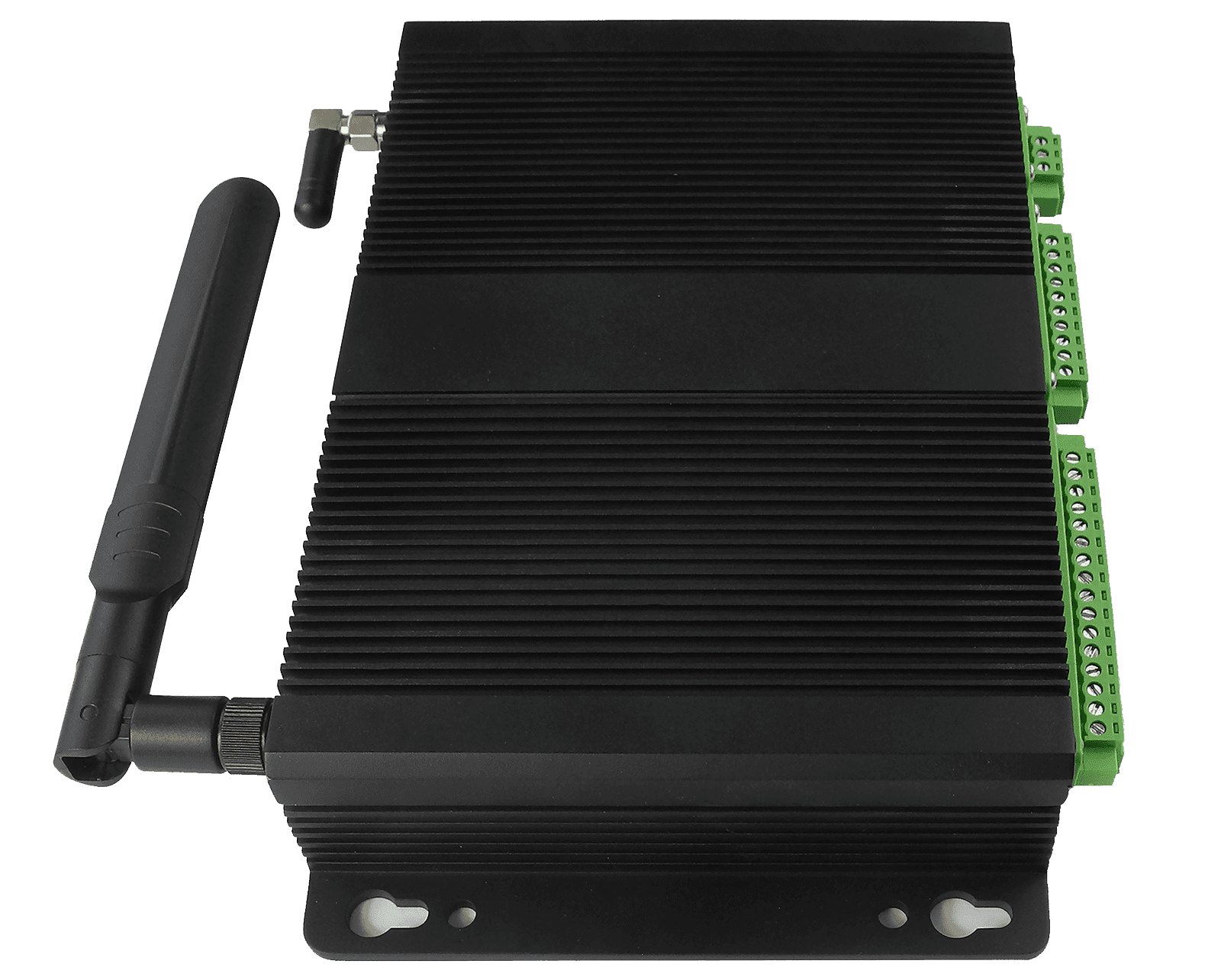

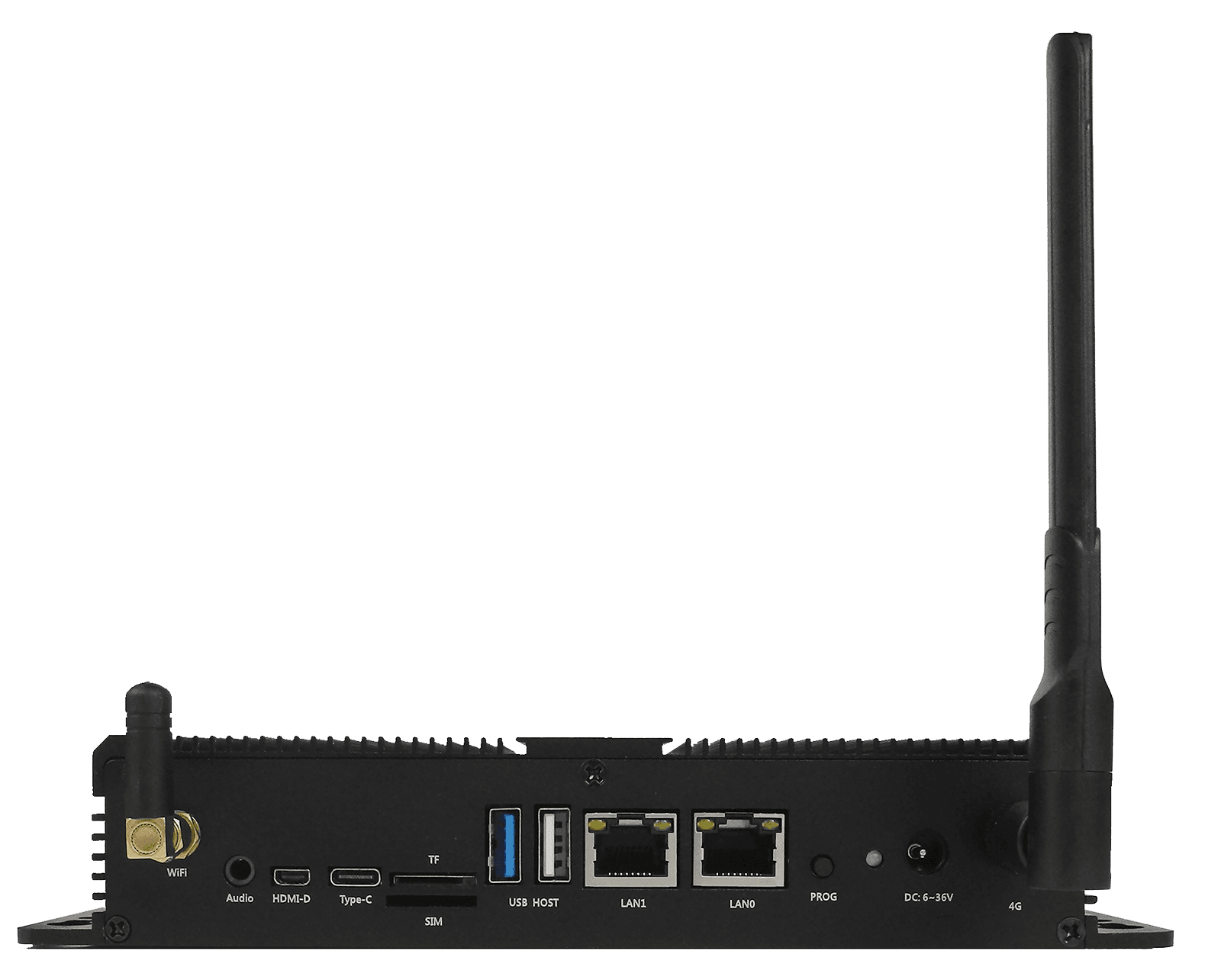

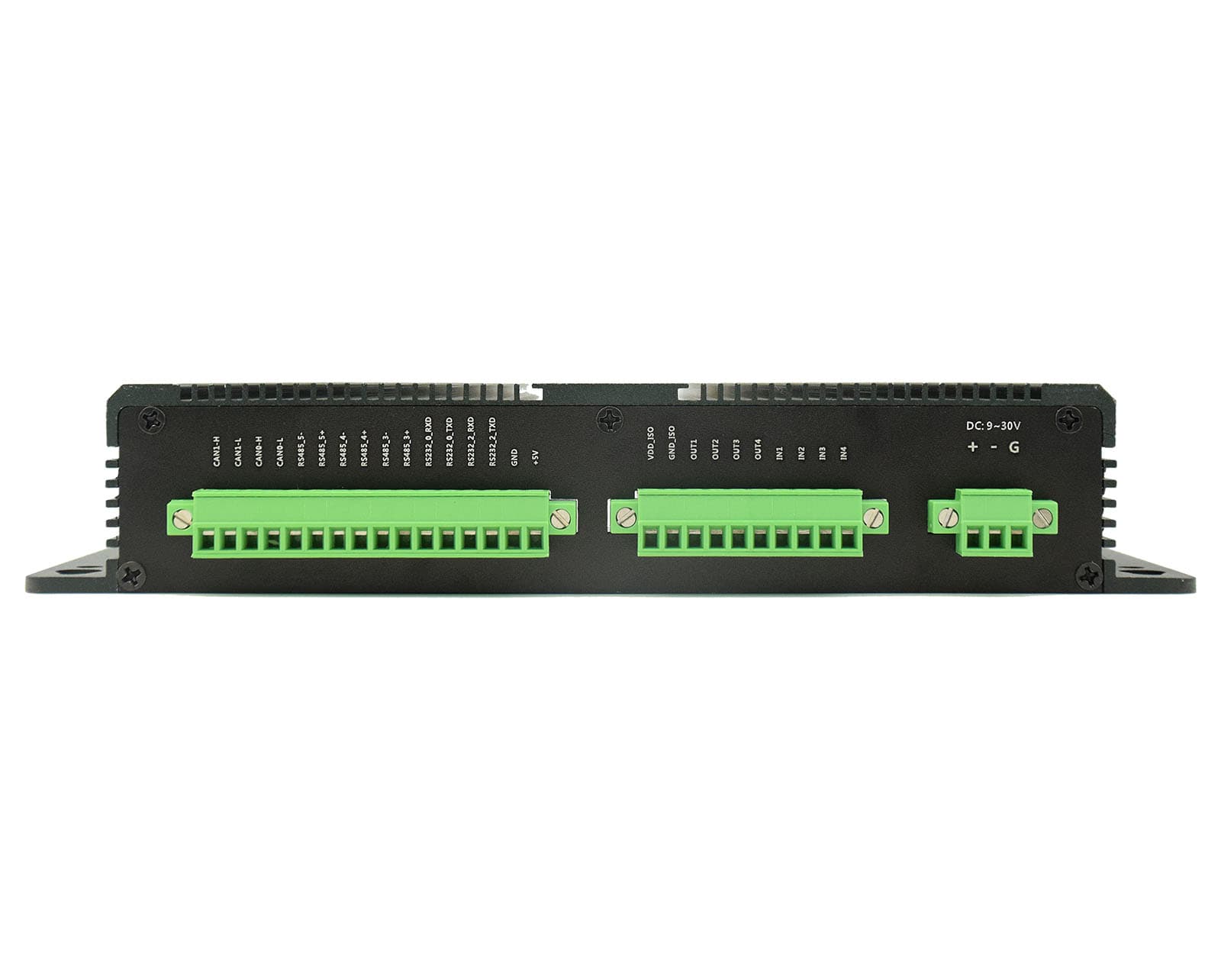

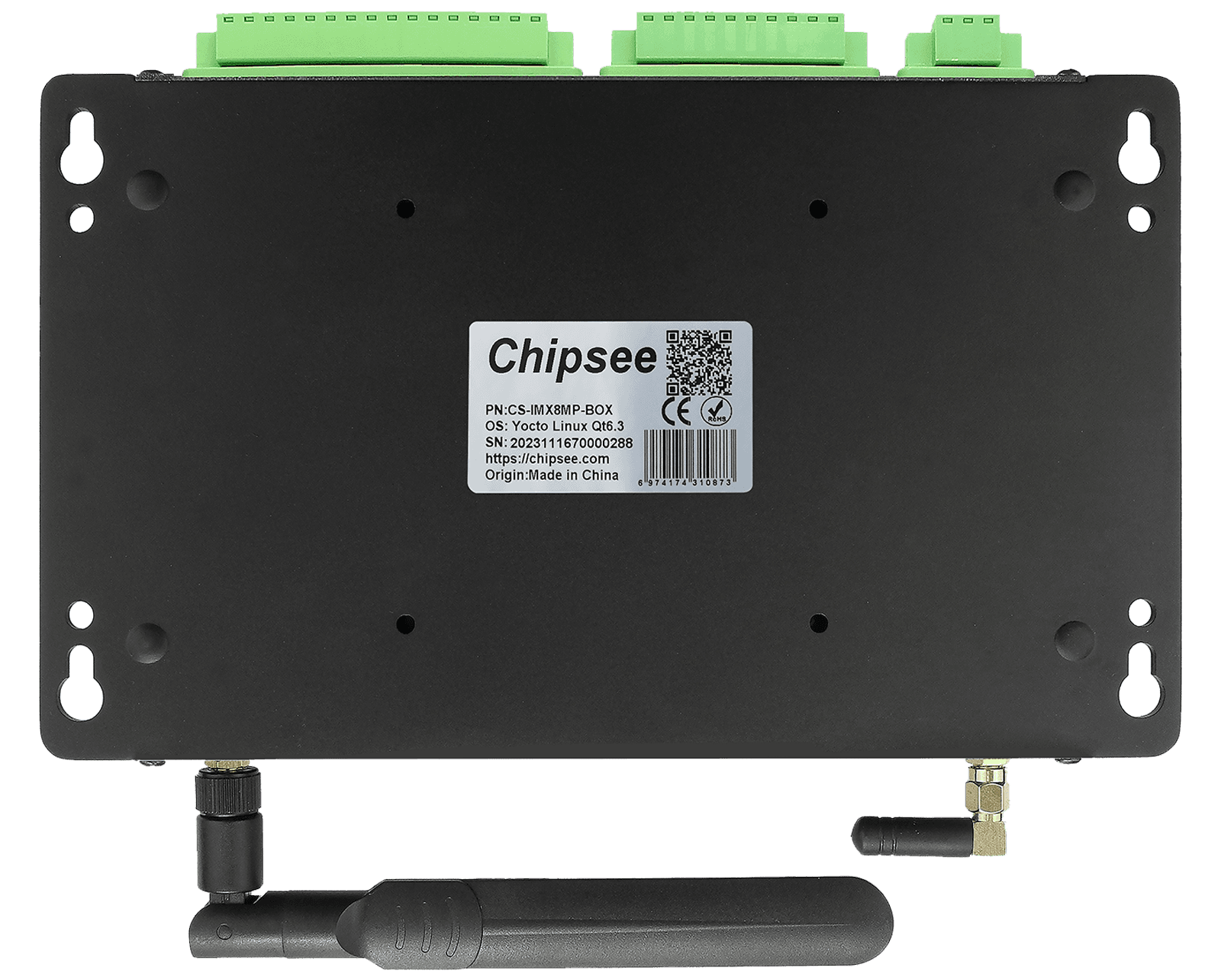

Бокс компютри — ARM: NXP i.MX8MP, LPDDR4 4GB, 32GB, Yocto
Спецификации
- SKU
- CS-IMX8MP-BOX
- Нетно тегло
- 900 g
- Форм-фактор
- Box
- Процесор
- ARM: NXP i.MX8MP
- Тактова честота на процесора
- NPU 2.3TOPS; Quad Cortex A53, 1.6GHz
- Оперативна памет
- LPDDR4 4GB
- Вградена памет (eMMC)
- 32GB
- Постоянна памет
- TF Card, Supports up to 128GB SDHC
- USB
- 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 2 x CAN by default (1 x CAN can be configured to RS232 optionally)
- RS232
- 2 x RS232 by default (Optional 6 x RS232 at most, including 1 debug port)
- RS485
- 3 x RS485 at most by default
- LAN
- 2 x RJ45, GbE
- HDMI
- 1 x HDMI-D (Micro HDMI) OUT
- GPIO
- 8 Channels, 4 Input, 4 Output
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Wi-Fi / Bluetooth
- Onboard
- 4G / LTE
- Optional
- Зумер
- Onboard, driven by GPIO
- SSD
- Not supported
- Аудио
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Операционна система
- Yocto
- Ток
- 350mA (max) at 15V
- Входно захранване
- 9-30V DC
- Консумация
- 5.25W (max)
- Работна температура
- -40°C to +85°C
- Начин на монтаж
- Rear, VESA
