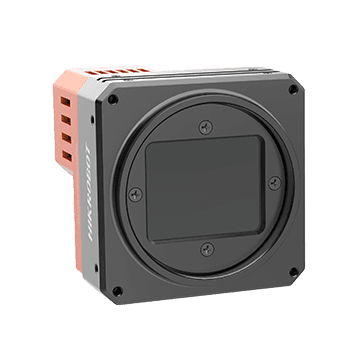

101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with TEC

Name: 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with TEC
Brand: Hikrobot
SKU: MV-CH1010-10CM-M72-TF

MV-CH1010-10CM-M72-TFHikrobotСензор: IMX461 Rolling shutter →

Заяви оферта Datasheet PDF Ръководство CAD чертеж

> 25 MP Camera Link Area Scan камери — IMX461, Rolling shutter, CMOS, M72-mount

Model

Product Model: MV-CH1010-10CM-M72-TF
Type: 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with TEC

Performance

Sensor type: CMOS, rolling shutter
Sensor model: Sony® IMX461
Pixel size: 3.76 μm × 3.76 μm
Sensor size: 55 mm
Размер на сензора (изчислен)от резолюция × стъпка на пиксела: 43.8 × 32.86 mm
Диагонал на сензора: 54.75 mm
Resolution: 11648 × 8740
Max. frame rate: 8.1 fps @ 11648 × 8740 Mono 8
Configuration mode: Base, Medium, Full, 80-bit
Tap geometry: 2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y
Tap number: 2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock: 40 MHz, 60 MHz, 70 MHz, 85 MHz
Dynamic range: 78 dB
SNR: 45 dB
Gain: 0 dB to 36 dB
Exposure time: 14 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode, supports Global Reset
Mono/color: Mono
Pixel format: ADC 12-bit mode: Mono 8/10/12 ADC 16-bit mode: Mono 8/10/12/16
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal reverse image output

Electrical feature

Data interface: Camera Link with SDR interface
Digital I/O: 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
Power supply: Camera with fan: 12 VDC to 24 VDC; Camera with TEC: 24 VDC
Power consumption: Camera with TEC non-cooling: Typ. 14 W @ 24 VDC Camera with TEC cooling: Typ. 48 W @ 24 VDC

Mechanical

Lens mount: M72*0.75, flange back length 19.55 mm
Dimension: Camera with fan: 90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8") Camera with TEC: 100 mm × 100 mm × 87.2 mm (3.9" × 3.9" × 3.4")
Weight: Camera with fan: Approx. 790 g (1.7 lb.) Camera with TEC: Approx. 1.7 kg (3.7 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or frame grabber software meeting with GenlCam Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility: Camera Link V2.0, GenlCam
Certification: CE, RoHS, KC

Фърмуер

MV_CH1010_10CM_STD_V2.0.2_201124_HIKROBOT.zip →

Избор на обектив

Търся

Ширина на сензораmmОт datasheet-а, не от „инчовия“ форматРаботно разстояниеmmЗрително полеmmПиксели по ширинаpx

Фокусно разстояние

131 mm

Мащаб: 0.44×

Резолюция на пиксел

0.0408 mm/px

Най-малък откриваем детайл: 0.123 mm

Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.

Съвместими кабели за данни

MV-ACCL-SDR-SDR-HF-7M

Camera Link cable(SDR-SDR)，high flex，7m

MV-ACCL-SDR-SDR-ST-5M

Camera Link cable(SDR-SDR)，standard，5m

Frame grabber-и

MV-GC1002-V2

CML FrameGrabber，with DB15 connector

Обективи, които пасват на тази камера

Филтрирано по байонет M72-mount и по покритие на сензора — кръгът на изображението е поне 54.75 mm, колкото е диагоналът на тази матрица. По-малък кръг затъмнява ъглите на кадъра. Питайте ни за потвърждение
