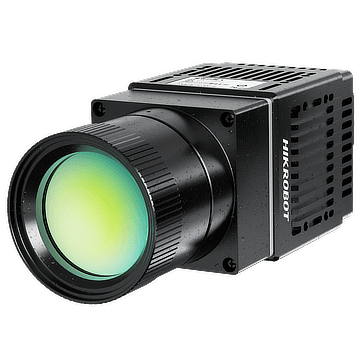

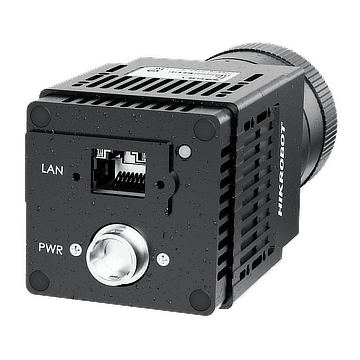

0.3MP LWIR Camera，GigE，6mm，Temperature measurement type
MV-CI003-GL-T6Hikrobot
< 1 MP GigE Area Scan камери — 6.3 mm, 1.0, IP40
Model
- Product Model
- MV-CI003-GL-T6
- Type
- 0.3MP LWIR Camera，GigE，6mm，Temperature measurement type
Performance
- Sensor type
- Vanadium oxide uncooled detector
- Pixel size
- 17 μm
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 10.88 × 8.7 mm
- Диагонал на сензора
- 13.93 mm
- Resolution
- 640 × 512
- Max. frame rate
- 50 fps @ 640 × 512
- NETD
- < 50 mk (F1.0, 30 °C)
- Pixel format
- Mono 16, Float 32, YUV422(YUYV)Packed, YUV 422 Packed
- Color palettes
- White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot
- Image process
- Supports brightness, contrast, Gamma correction
- Focal length
- 6.3 mm
- Field of view
- 88.5° × 73.2°
- Space resolution
- 2.70
- Aperture
- 1.0
- Thermal object distance
- 0.6 m
- Temperature measurement range
- –20 °C to 150 °C or 0 °C to 550 °C (–4 °F to 302 °F or 32 °F to 1022 °F)
- Temperature measurement accuracy
- ± 2 °C (35.6 °F) or ± 2% of the readings
- Max. temperature measurement distance
- 5 m (@ target size 01 × 0.1 m2)
Electrical feature
- Data interface
- Gigabit Ethernet, compatible with Fast Ethernet
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC
- Power consumption
- Typ. 2.8 W @ 12 VDC
Mechanical
- Installation method
- Supports installation from 4 sides
- Dimension
- 48 mm × 48 mm × 117.9 mm (1.9" × 1.9" × 4.6")
- Weight
- Approx. 370 g (0.8 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –20 °C to 60 °C (–4 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- MVS
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux.
- Compatibility
- GigE Vision V2.0, GenICam
- Certification
- CE, RoHS, KC
