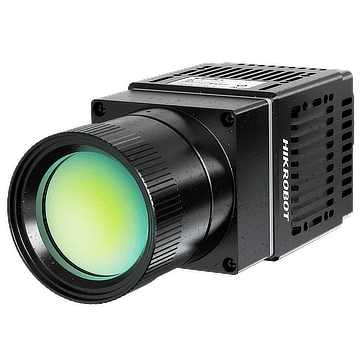

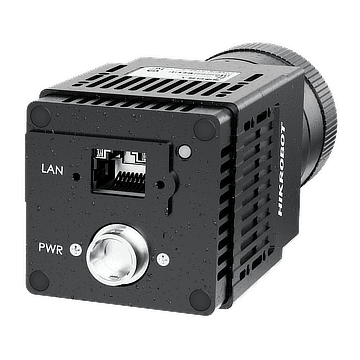

0.3MP LWIR Camera，GigE，6mm，Temperature measurement type
MV-CI003-GL-T6Hikrobot
< 1 MP GigE Area Scan Cameras — 6.3 mm, 1.0, IP40
Model
- Product Model
- MV-CI003-GL-T6
- Type
- 0.3MP LWIR Camera，GigE，6mm，Temperature measurement type
Performance
- Sensor type
- Vanadium oxide uncooled detector
- Pixel size
- 17 μm
- Sensor size (computed)from resolution × pixel pitch
- 10.88 × 8.7 mm
- Sensor diagonal
- 13.93 mm
- Resolution
- 640 × 512
- Max. frame rate
- 50 fps @ 640 × 512
- NETD
- < 50 mk (F1.0, 30 °C)
- Pixel format
- Mono 16, Float 32, YUV422(YUYV)Packed, YUV 422 Packed
- Color palettes
- White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot
- Image process
- Supports brightness, contrast, Gamma correction
- Focal length
- 6.3 mm
- Field of view
- 88.5° × 73.2°
- Space resolution
- 2.70
- Aperture
- 1.0
- Thermal object distance
- 0.6 m
- Temperature measurement range
- –20 °C to 150 °C or 0 °C to 550 °C (–4 °F to 302 °F or 32 °F to 1022 °F)
- Temperature measurement accuracy
- ± 2 °C (35.6 °F) or ± 2% of the readings
- Max. temperature measurement distance
- 5 m (@ target size 01 × 0.1 m2)
Electrical feature
- Data interface
- Gigabit Ethernet, compatible with Fast Ethernet
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC
- Power consumption
- Typ. 2.8 W @ 12 VDC
Mechanical
- Installation method
- Supports installation from 4 sides
- Dimension
- 48 mm × 48 mm × 117.9 mm (1.9" × 1.9" × 4.6")
- Weight
- Approx. 370 g (0.8 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –20 °C to 60 °C (–4 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- MVS
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux.
- Compatibility
- GigE Vision V2.0, GenICam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
32.6 mm
Magnification: 0.11×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
