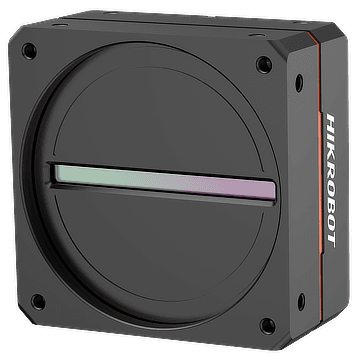

16k Camera Link Line Scan Cameras，Mono

Name: 16k Camera Link Line Scan Cameras，Mono
Brand: Hikrobot
SKU: MV-CL161-41CM

MV-CL161-41CMHikrobot

< 1 MP Camera Link Line Scan камери — CMOS, M72-mount, IP40

Model

Sensor type: CMOS
Pixel size: 3.5 μm
Resolution: 16384 × 1
Image mode: 1-line
Max. line rate: 10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), and 50 kHz (80-bit)
Configuration mode: Base, Medium, Full, 80-bit
Tap geometry: 1 × 2, 1 × 4, 1 × 8, 1 × 10
Tap number: 2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock: 40 MHz, 66 MHz, 80 MHz, 85 MHz
Dynamic range: 64.7 dB
SNR: 44.3 dB
Gain: Supports 1 ×, 2 ×, 4 ×, 8 ×
Exposure time: 2 μs to 10 ms
Exposure mode: Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
Mono: Mono
Pixel format: Mono 8/10/12
Binning: Supports 1 × 1, 2 × 2, 4 × 4
Reverse image: Supports horizontal reverse image output
Trigger mode: External trigger, internal trigger
External trigger mode: Line trigger, frame trigger, line + frame trigger

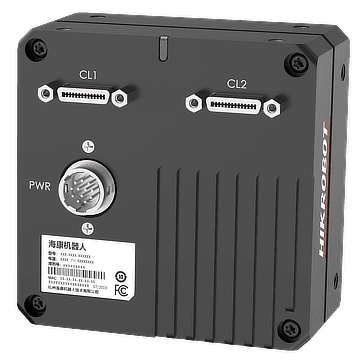

Data interface: Camera Link (SDR connector); USB interface for updating firmware
Digital I/O: 12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power supply: 12 VDC to 24 VDC
Power consumption: Typ. 7.2 W @ 12 VDC

Lens mount: M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension: 76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7")
Weight: Approx. 320 g (0.7 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 5% RH to 90% RH (no condensation)

Client software: MVS and frame grabber software meeting with Camera Link Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility: Camera Link V1.2, GenICam
Certification: CE, RoHS, KC
