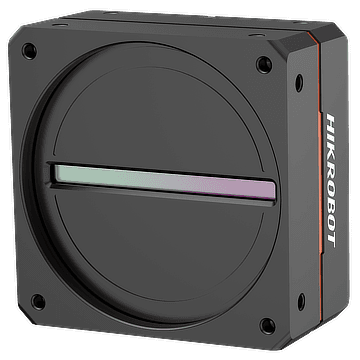

16k Camera Link Line Scan Cameras，Mono
The CL series covers 2K-16K pixels and equipped with GigE/Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras. The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data; Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs. The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.
Model
- Product Model
- MV-CL161-41CM
- Type
- 16k Camera Link Line Scan Cameras，Mono
Performance
- Sensor type
- CMOS
- Pixel size
- 3.5 μm
- Resolution
- 16384 × 1
- Image mode
- 1-line
- Max. line rate
- 10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), and 50 kHz (80-bit)
- Configuration mode
- Base, Medium, Full, 80-bit
- Tap geometry
- 1 × 2, 1 × 4, 1 × 8, 1 × 10
- Tap number
- 2 Taps, 4 Taps, 8 Taps, 10 Taps
- Pixel clock
- 40 MHz, 66 MHz, 80 MHz, 85 MHz
- Dynamic range
- 64.7 dB
- SNR
- 44.3 dB
- Gain
- Supports 1 ×, 2 ×, 4 ×, 8 ×
- Exposure time
- 2 μs to 10 ms
- Exposure mode
- Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
- Mono
- Mono
- Pixel format
- Mono 8/10/12
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Reverse image
- Supports horizontal reverse image output
- Trigger mode
- External trigger, internal trigger
- External trigger mode
- Line trigger, frame trigger, line + frame trigger
Electrical feature
- Data interface
- Camera Link (SDR connector); USB interface for updating firmware
- Digital I/O

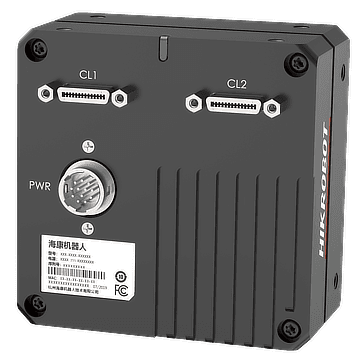

- 12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
- Power supply
- 12 VDC to 24 VDC
- Power consumption
- Typ. 7.2 W @ 12 VDC
Mechanical
- Lens mount
- M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
- Dimension
- 76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7")
- Weight
- Approx. 320 g (0.7 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 5% RH to 90% RH (no condensation)
General
- Client software
- MVS and frame grabber software meeting with Camera Link Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11
- Compatibility
- Camera Link V1.2, GenICam
- Certification
- CE, RoHS, KC
