Вижън компоненти — PCI-E gen2 × 8
Model
- Product Model
- MV-GT1004
- Type

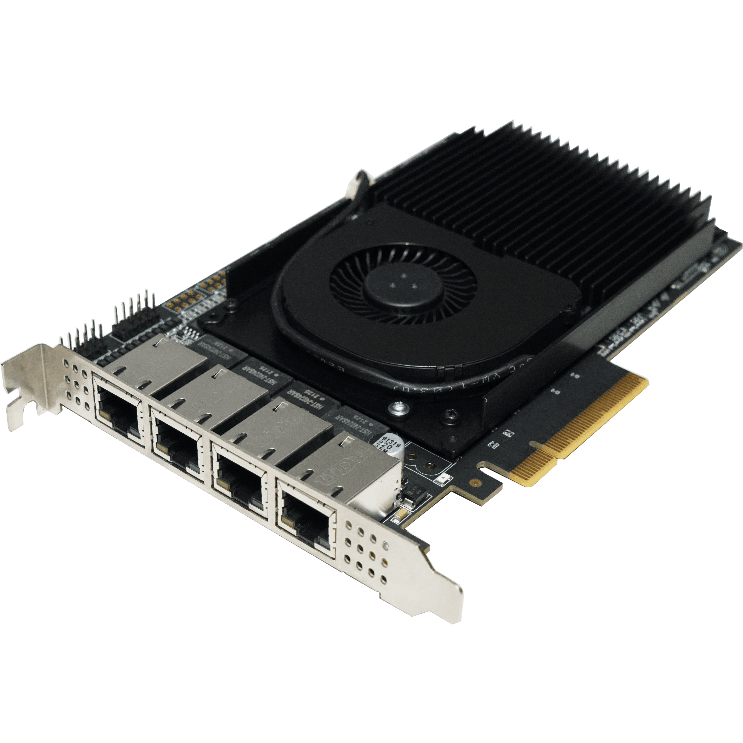

- Quad 10GigE Frame Grabbers
Memory
- On-board memory
- 2 GB DDR3-RAM
Host interface
- Interconnect
- PCI-E gen2 × 8
- Delivery bandwidth
- 3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth)
- Indicator
- 1
Camera interface
- Standard
- GigE Vision V2.0
- Interface
- RJ45 × 4
- Camera type supported
- GigE industrial camera and 10 GigE industrial camera
- Camera quantity supported
- 4 at most (total bandwidth up to 27 Gbps)
- Camera connection speed
- 10 Gbps
- Stream
- 4
- Stream indicator
- 4 pairs
Processing feature
- Pixel format
- Mono 8/10/10p/12/12p/16 Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
GPIO
- I/O Type
- Configurable input/output × 8, compatible with single-ended/differential Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output Line 2/3 supports 3.3 VDC to 24 VDC input and 3.3 VDC output
- Connector
- 9-pin header
Electrical feature
- Power consumption
- Typ. 24 W
Mechanical
- Dimension
- 181 mm × 126.3 mm × 21.4 mm (7.1" × 5.0" × 0.8")
- Temperature
- Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Client software
- MVS
- Operating system
- Windows 7/10/11, Ubuntu18.04 to 22.04 on Linux
- Certification
- CE, KC, RoHS
