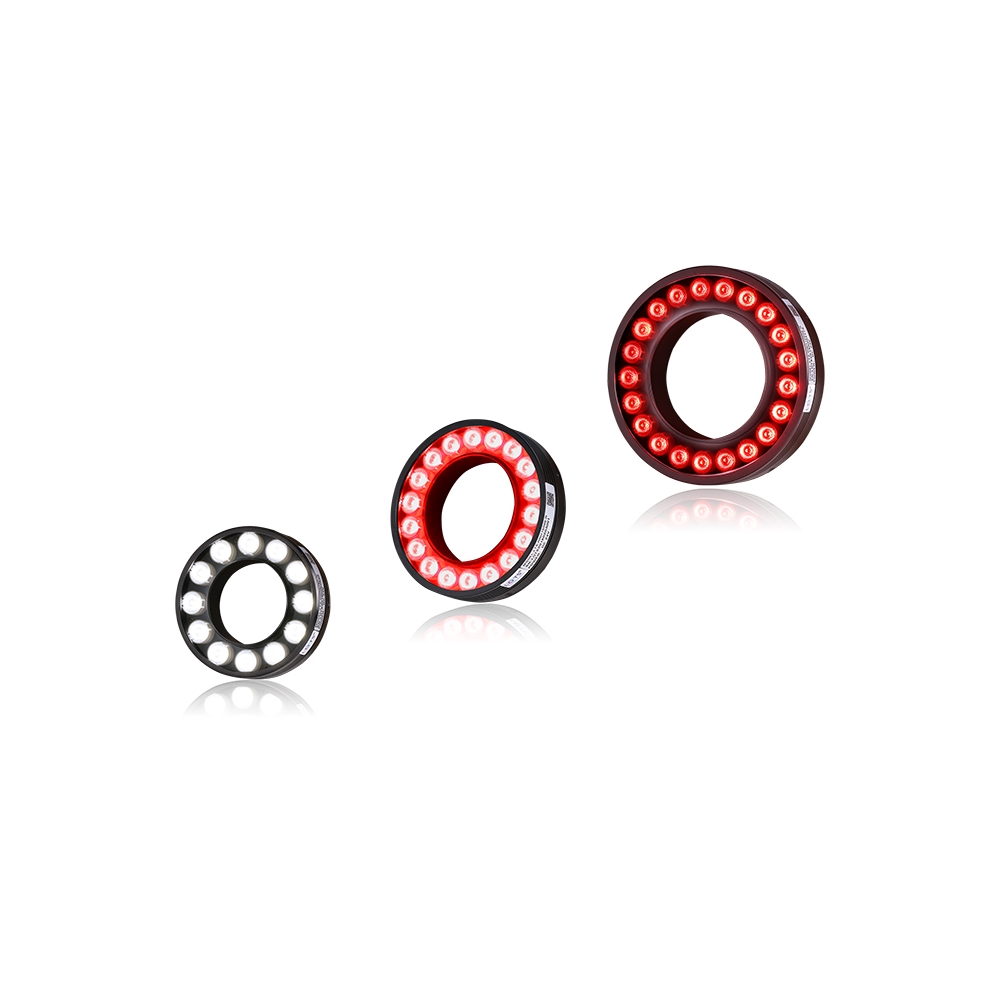

LOTS High Power Ring Light Industrial Machine Lighting

Designed by the high power LED array, supported by a condenser lens, so that more light beam, higher brightness.
Can achieve long-distance high brightness lighting, suitable for large area lighting use, make up for low brightness of small particles LED light.

Features:

Highlight, 1-3W, High power LED vertical distribution
Evenly arranged to bring maximum brightness
Can achieve long-distance high illumination effect

Compare

Applications:

Remote shooting lighting
High-speed motion shooting lighting
Medical lighting

Illumination property diagram (LTS-RNH4590-W model) & Uniformity (Relative irradiance):

Effect contrast photograph; High power ring light: LTS-RNH4590-W / Ring light: LTS-RN5590-W

Imaging instance：stitch inspection:

Coding rules:

(Use the color circles below to get to the specific variant of the products)

Model	Color	Dimension	Voltage	Power
LTS-RNH4590-R/BGW	/	Outer dia. φ45mm, Inner dia. φ13mm, Height 22mm	24V	2.4W
LTS-RNH8490-R/BGW	/	Outer dia. φ60mm, Inner dia. φ47mm, Height 33.5mm	24V	2.4W/4.8W
LTS-RNH10090-R/BGW	/	Outer dia. φ100mm, Inner dia. φ60mm, Height 24mm	24V	4.8W/7.2W
LTS-RNH11090-R/BGW	/	Outer dia. φ110mm, Inner dia. φ70mm, Height 24mm	24V	4.8W/9.6W
LTS-RNH12090-R/BGW	/	Outer dia. φ120mm, Inner dia. φ70mm, Height 33mm	24V	4.8W/7.2W
LTS-RNH15090-R/BGW	/	Outer dia. φ150mm, Inner dia. φ100mm, Height 33mm	24V	7.2W/9.6W
LTS-RNH22090-R/BGW	/	Outer dia. φ220mm, Inner dia. φ172mm, Height 24mm	24V	9.6W/14.4W
LTS-RNH30090-R/BGW	/	Outer dia. φ300mm, Inner dia. φ252mm, Height 24mm	24V	12.0W/19.2W
* UV & IR light can be customized as required.

LTS-RNH30090-B
