- Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc.
- Adopts noise reduction function to provide high-quality images.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
MV-CB004-10GC-S
HIKROBOT Board Level Camera CB Series
HIKROBOT Board Level Camera CB Series
The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures.
The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.
Product Downloads:
| Model | Product Model | MV-CB004-10GC-S |
| Type | 0.4MP Board Level Camera, GigE,IMX297,Color,M12-mout | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | IMX297 | |
| Pixel size | 6.9 μm × 6.9 μm | |
| Sensor size | 1/2.9″ | |
| Resolution | 720 × 540 | |
| Max. frame rate | 125.2 fps @720 × 540 | |
| Dynamic range | 74 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec | |
| Exposure mode | Off/ Once/ Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p,YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.6 W@12 VDC | |
| Mechanical | Lens mount | M12-mount |

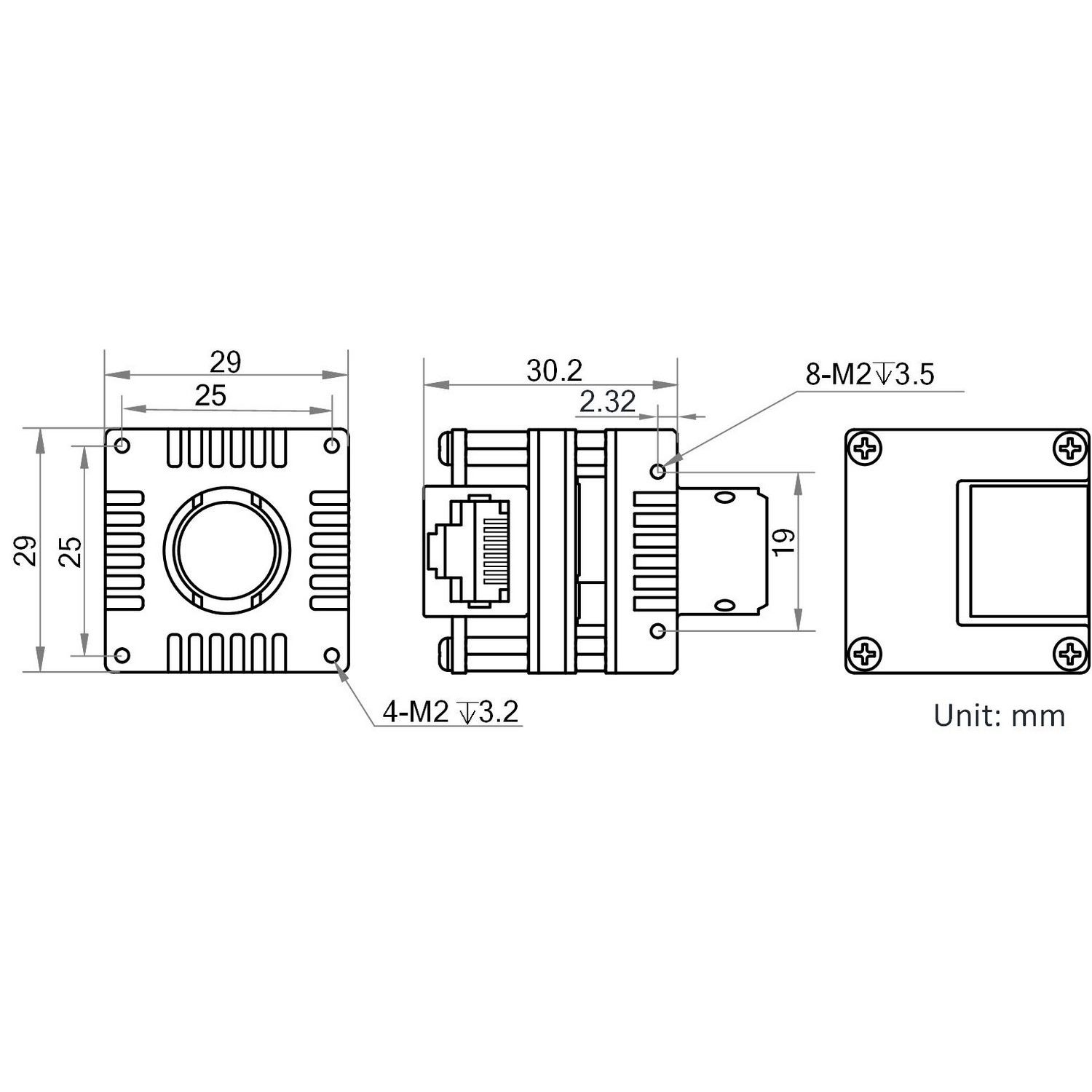

| Dimension | 29 mm × 29 mm × 30.2 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 45 g (0.1 lb.) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, FCC, RoHS, KC |
