- USB3.0 supports FPC connection to meet limited spatial requirements.
- Supports senor and mainboard separation for complex spatial requirements.
- Supports auto or manual adjustment for gain, exposure time, white balance, LUT, Gamma correction, etc.
- Adopts image interpolation algorithm for color reproduction.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on protocol and standard.
MV-CB050-11UC-C
HIKROBOT Board Level Camera CB Series
HIKROBOT Board Level Camera CB Series
The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures.
The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.
Product Downloads:
| Model | Product Model | MV-CB050-11UC-C |
| Type | 5MP Board Level Camera，USB3.0 , FPC interface，Color，C-mount | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | IMX264 | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 2/3″ | |
| Resolution | 2448 × 2048 | |
| Max. frame rate | 60 fps @2448 × 2048 | |
| Dynamic range | 72 dB | |
| SNR | 40.2 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) | |
| Power supply | 5 VDC (USB3.0 provides power supply) | |
| Power consumption | Typ. 2.8 W @5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | C-Mount |

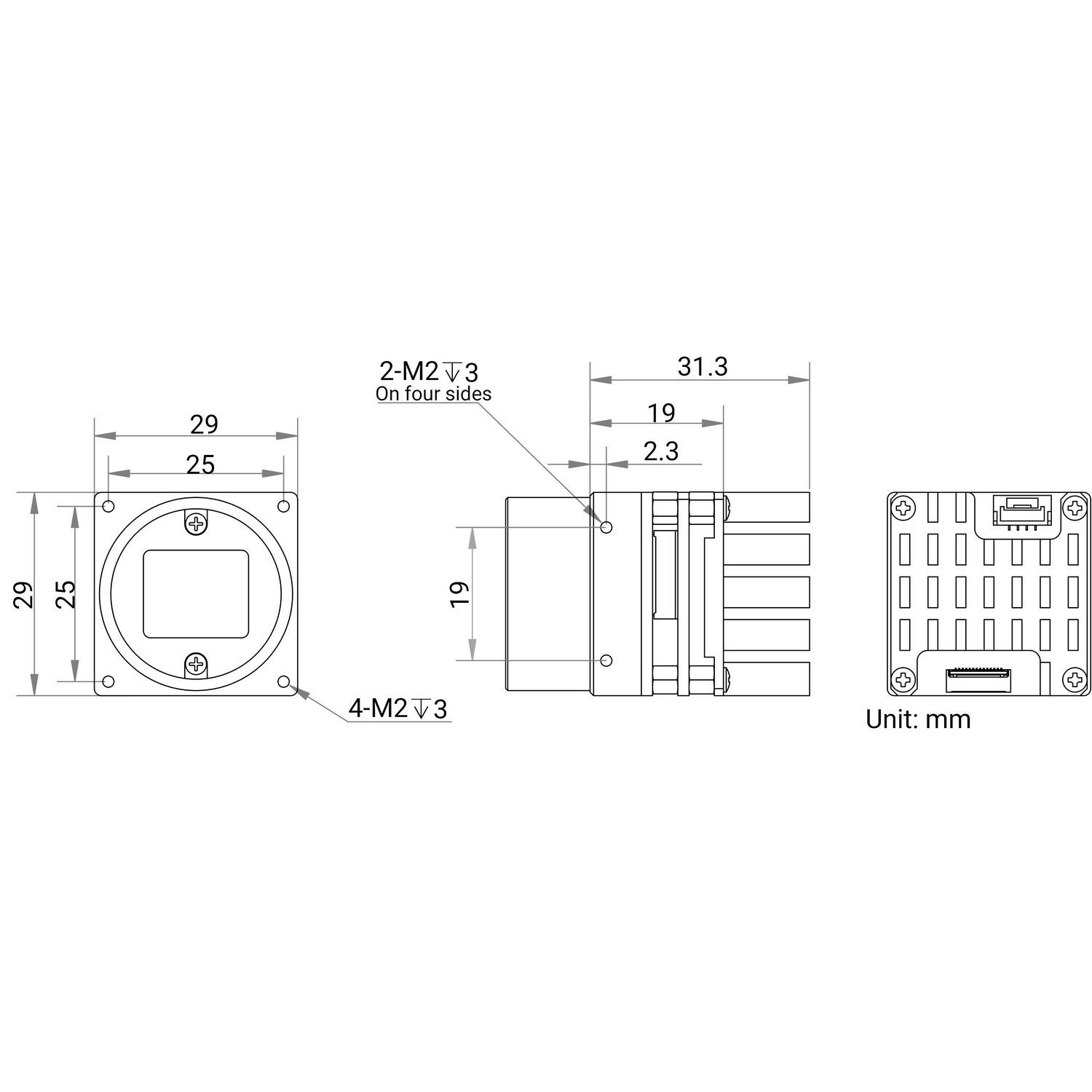

| Dimension | 29 mm × 29 mm × 31.3 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 37 g (0.08 lb.) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10 and 32/64-bit Linux | |
| Compatibility | USB3 Vision, GenlCam | |
| Certification | CE, RoHS, KC |
