- Compact design for flexible installation.
- Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc.
- Supports HDR function with different exposure time and gain.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
MV-CB060-10UC-S
HIKROBOT Board Level Camera CB Series
HIKROBOT Board Level Camera CB Series

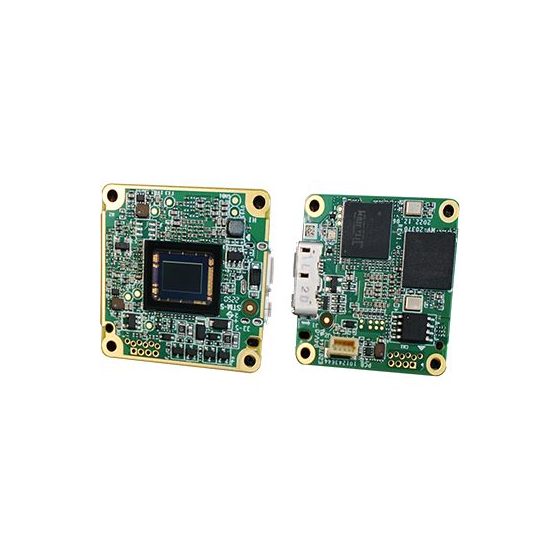

The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures.

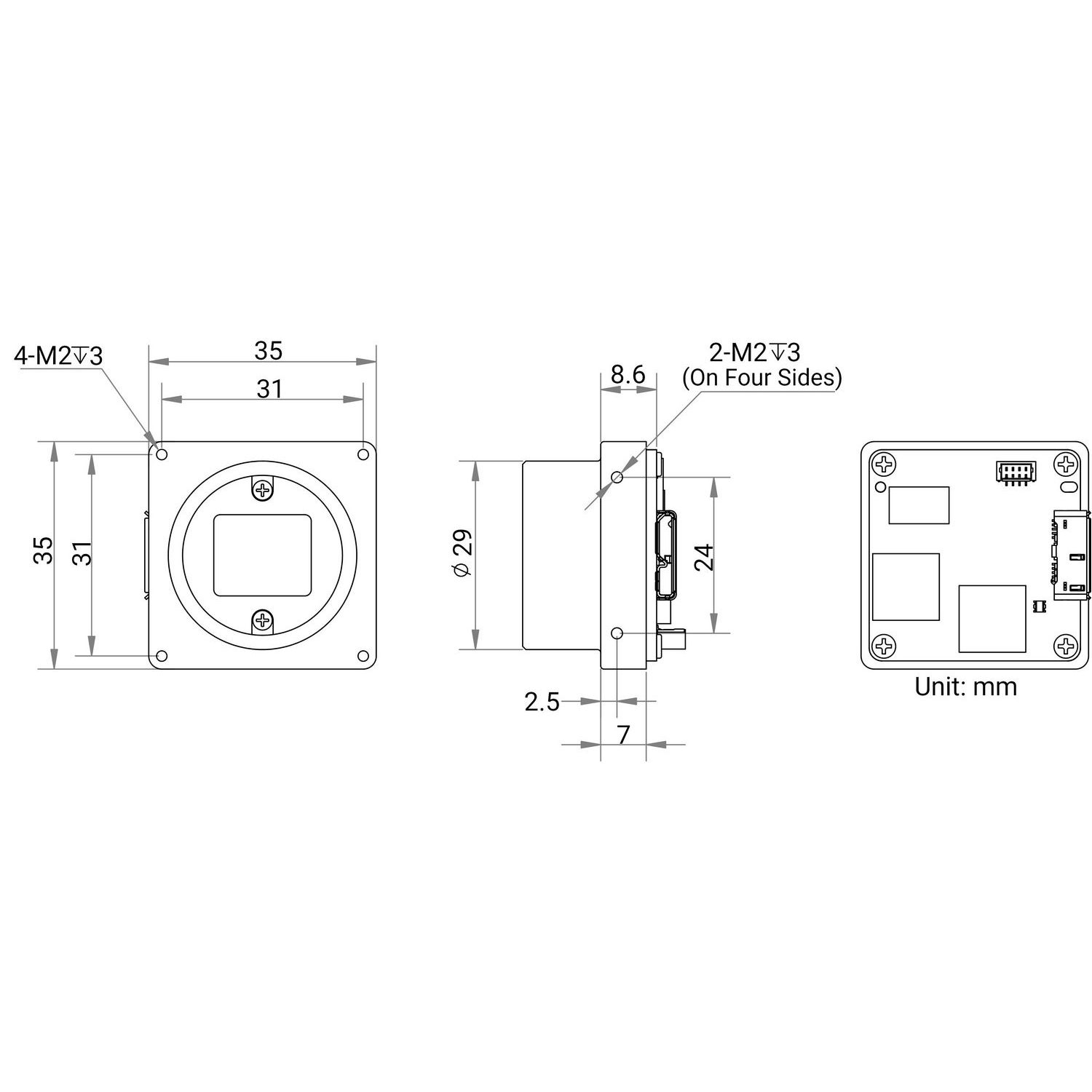

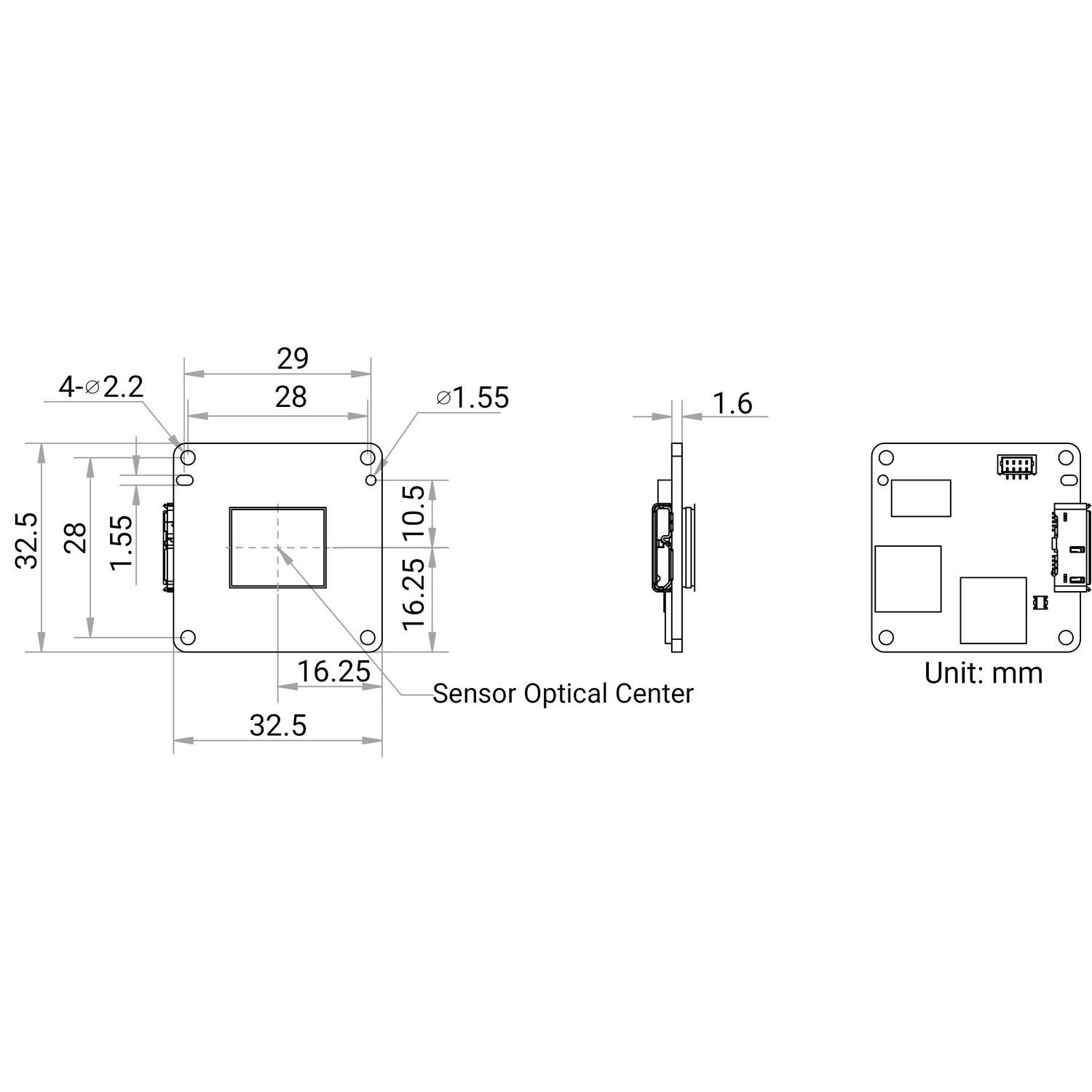

The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.
Product Downloads:
| Model | Product Model | MV-CB060-10UC-S |
| Type | 6MP Board Level Camera, USB3, IMX178, Color, M12-mount, V4 | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | IMX178 | |
| Pixel size | 2.4 μm × 2.4 μm | |
| Sensor size | 1/1.8" | |
| Resolution | 3072 × 2048 | |
| Max. frame rate | 60.9 fps @3072 × 2048 Bayer RG 8 | |
| Dynamic range | 66 dB | |
| SNR | 41.5 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | 8 μs to 1 sec | |
| Exposure mode | Off/ Once/ Continuous exposure mode, supports Global Reset and Trigger Rolling | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) | |
| Power supply | USB3.0 power supply | |
| Power consumption | Typ. 1.8 W@5 VDC | |

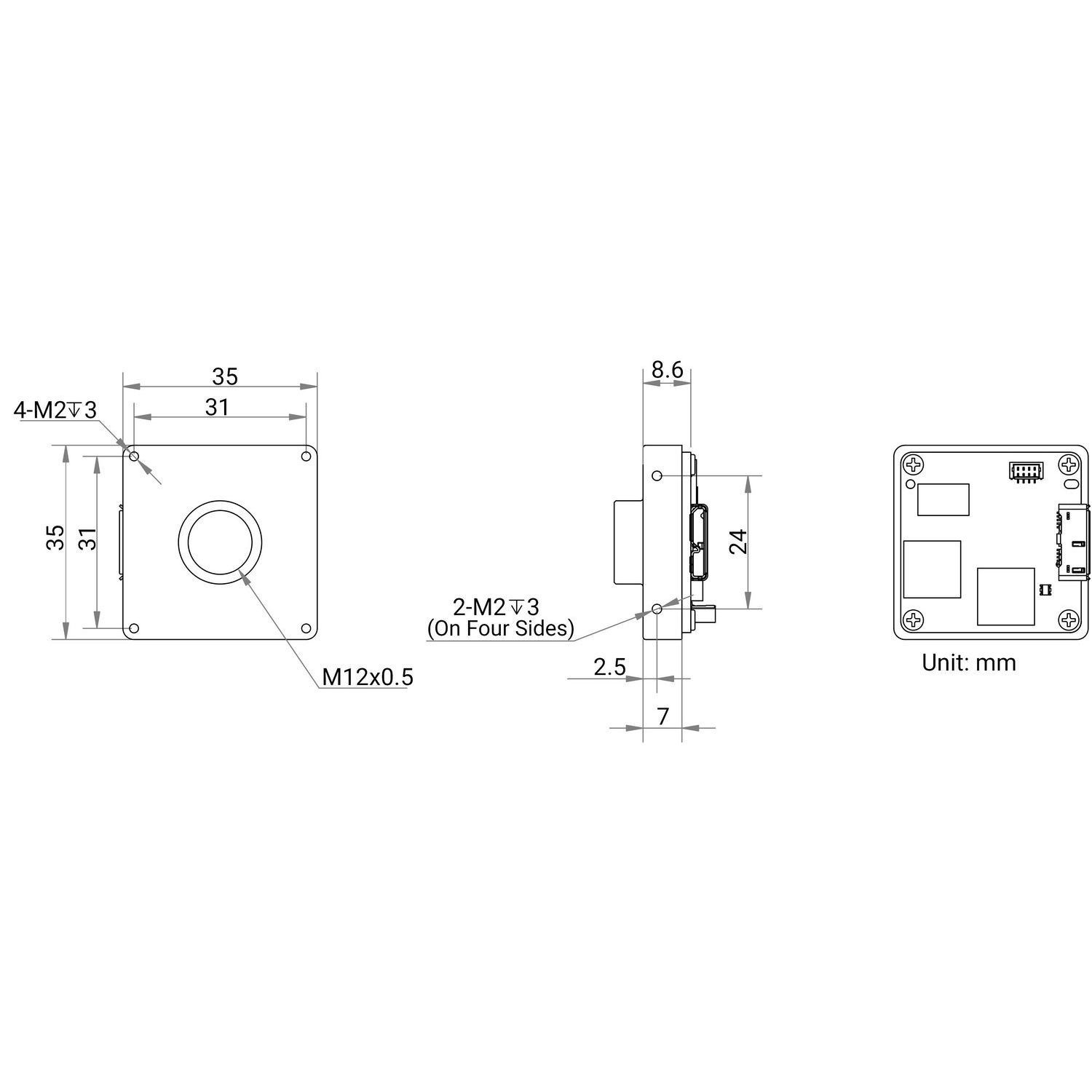

| Mechanical | Lens mount | M12-mount |
| Dimension | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") | |
| Weight | Approx. 43.5 g (0.1 lb.) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | USB3 Vision, GenICam | |
| Certification | CE, RoHS, KC |
