- Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
MV-CH120-10UM
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH120-10UM |
| Type | 12MP Area Scan Camera, USB3, IMX304, Mono, V4 | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | IMX304 | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1.1” | |
| Resolution | 4096 × 3000 | |
| Max. frame rate | 30.5 fps @4096 × 3000 Mono 8 | |
| Dynamic range | 72.2 dB | |
| SNR | 40.2 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply | |
| Power consumption | Typ. 2.9 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | C-Mount |

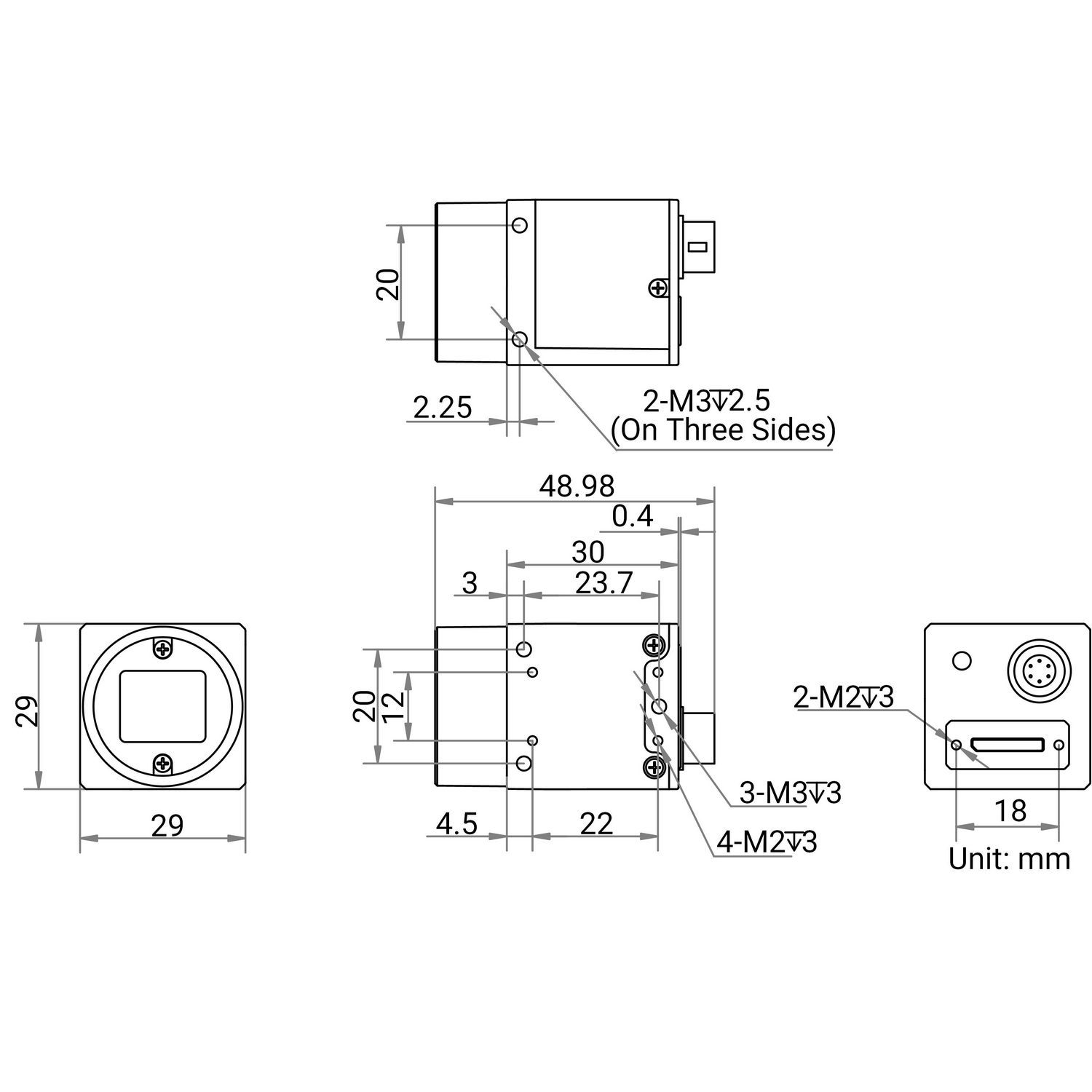

| Dimension | 29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 80 g (0.2 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | USB 3.0 Vision, GenlCam | |
| Certification | CE, RoHS, KC |
