- Supports auto or manual adjustment for gain and exposure time, and manual adjustment for LUT and Gamma correction.
- Supports LSC, sequencer, passive transmission, etc.
- Color camera supports white balance, CCM, Super Palette, Super Bayer, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
MV-CH120-20GM
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH120-20GM |
| Type | 12MP Area Scan Camera, GigE, XGS12000, Mono, V4 | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | XGS12000 | |
| Pixel size | 3.2 µm × 3.2 µm | |
| Sensor size | 1″ | |
| Resolution | 4096 × 3072 | |
| Max. frame rate | 9.6 fps @4096 × 3072 Mono 8 | |
| Dynamic range | 66.4 dB | |
| SNR | 40 dB | |
| Gain | 0 dB to 18 dB | |
| Exposure time | UltraShort exposure mode: 52 μs to 161 μsStandard exposure mode: 162 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.6 W@12 VDC | |
| Mechanical | Lens mount | C-mount |

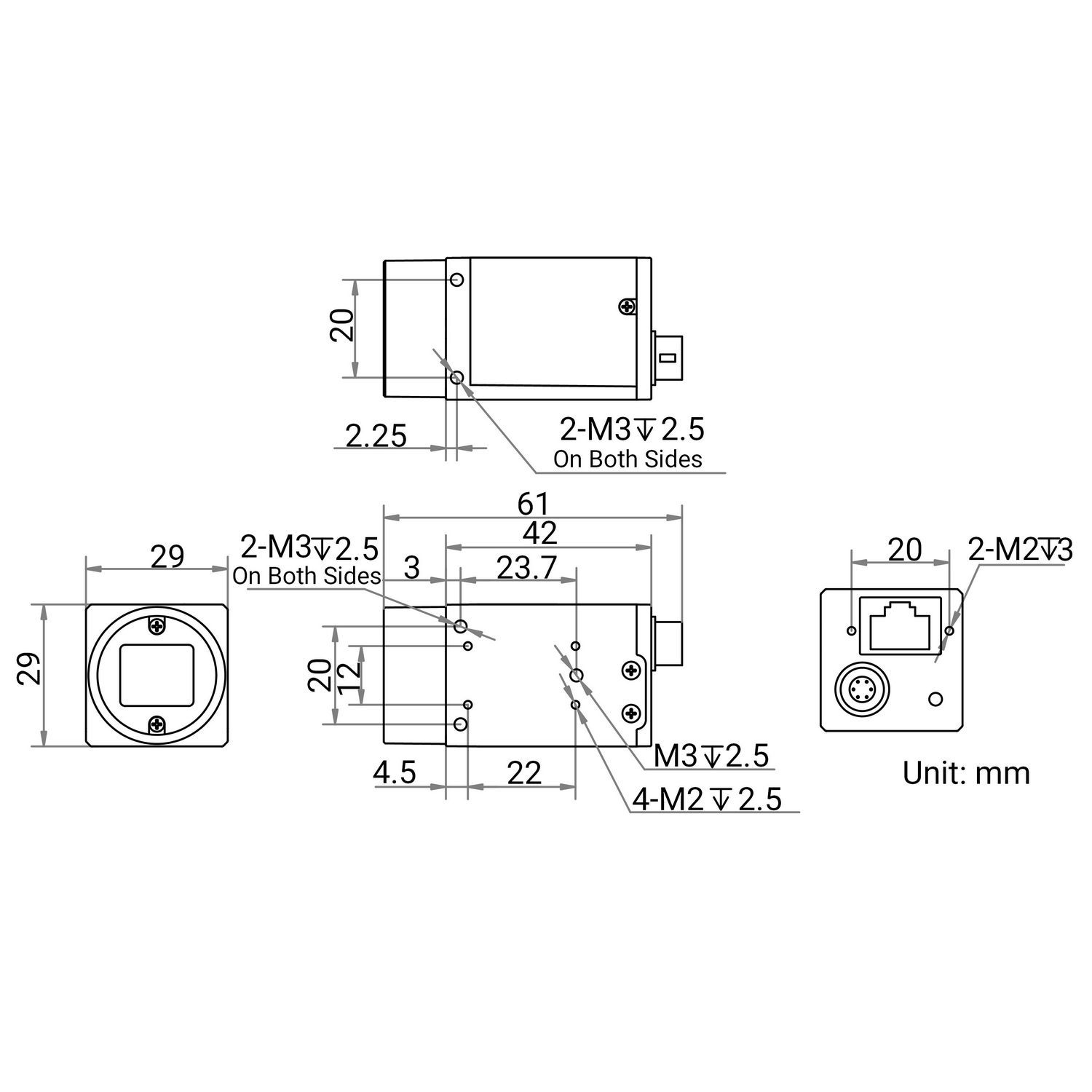

| Dimension | 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″) | |
| Weight | Approx. 100 g (0.2 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision 2.0, GenlCam | |
| Certification | CE, RoHS, KC |
