- Adopts brand new design to reduce power consumption.
- Supports sequencer, passive transmission, etc.
- Color camera supports white balance, CCM, Super Palette, Super Bayer, etc.
- Supports hard trigger, software trigger, free run, etc.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
MV-CS020-10UC
HIKROBOT Area Scan Camera CS Series
HIKROBOT Area Scan Camera CS Series
The new second-generation CS series industrial cameras are equipped with excellent image sensors, high dynamic range, good signal-to-noise ratio, excellent image quality, excellent power consumption design, compatible with machine vision standard protocols and GenlCam standards, and seamlessly connect with third-party software.
New-generation appearance structure, four-sided installation support, wider voltage access, wider temperature width, better adapt to complex visual application scenarios.
The camera has built-in a variety of complex algorithms and functions, such as lossless compression, 2D noise reduction, lens shading correction, CCM, etc., which can improve the camera image quality in all directions, while ensuring the camera has a higher frame rate and more excellent quality.
Product Downloads:
| Model | Product Model | MV-CS020-10UC |
| Type | 2MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Color | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | IMX430 | |
| Pixel size | 4.5 μm × 4.5 μm | |
| Sensor size | 1/1.7″ | |
| Resolution | 1624 × 1240 | |
| Max. frame rate | 90 fps @1624 × 1240 Bayer RG 8 | |
| Dynamic range | 71.5 dB | |
| SNR | 43.7 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 5 μsStandard exposure mode: 6 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12,Bayer RG 8/10/10Packed/12/12Packed,YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply | |
| Power consumption | Typ. 2.4 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | C-mount |

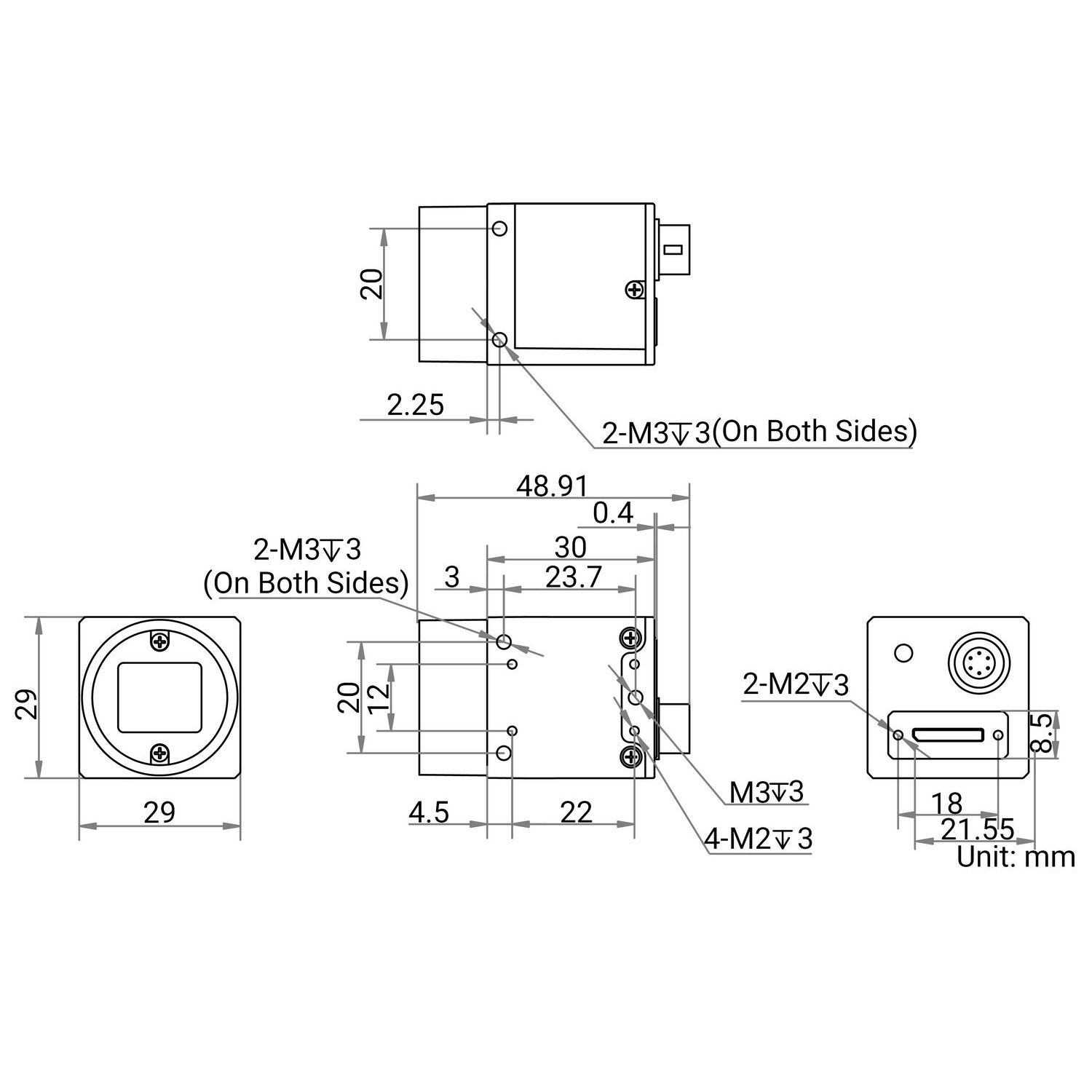

| Dimension | 29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 80 g (0.18 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | USB3 Vision, GenlCam | |
| Certification | CE, RoHS, KC |
