- Adopts brand new design to reduce power consumption.
- Supports increasing frame rate via ROI, and supports binning, horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, and free run.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
MV-CU060-10UM
HIKROBOT Area Scan Camera CU Series
HIKROBOT Area Scan Camera CU Series
The CU series is designed with low power-consuming platform and stable performance, which creates a universal industrial camera product that satisfies the requirements for stability and necessary functions, helping users to obtain vision applications more easily.
With the built-in ISP algorithms like wide dynamic range, noise reduction and sharpness, it can be flexibly adjusted according to the user’s actual scenarios, so as to minimize external interference, stabilize imaging, and reduce the burden on the back-end algorithm.
Product Downloads:
| Model | Product Model | MV-CU060-10UM |
| Type | 6MP Area Scan Camera, USB3, IMX178, Mono | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | IMX178 | |
| Pixel size | 2.4 μm × 2.4 μm | |
| Sensor size | 1/1.8″ | |
| Resolution | 3072 × 2048 | |
| Max. frame rate | 59.6 fps @3072 × 2048 Mono 8 | |
| Dynamic range | 66.4 dB | |
| SNR | 41.5 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | 8 μs to 1 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply | |
| Power consumption | Typ. 1.9 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | C-mount |

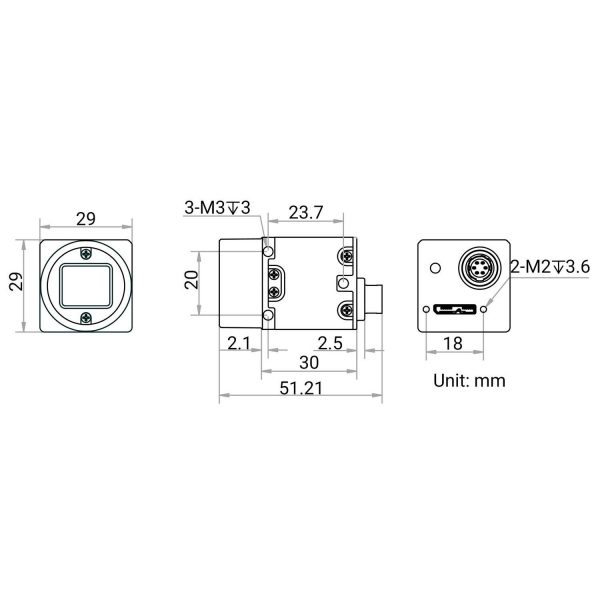

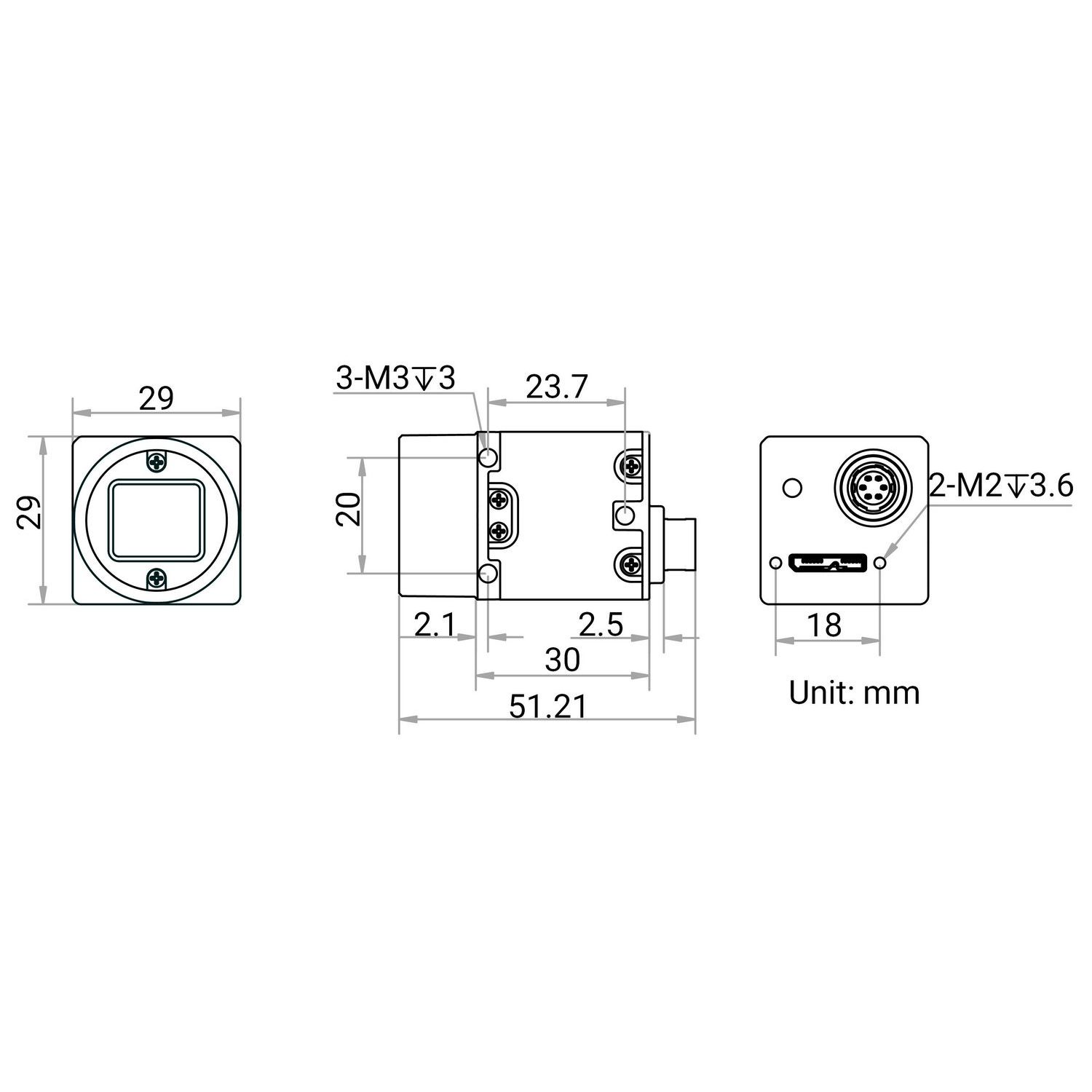

| Dimension | 29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 76 g (0.2 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | USB3 Vision, GenlCam | |
| Certification | CE, RoHS, KC |
