- Adopts 6 MP rolling shutter sensor with high performance to provide high-quality images.
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Provides different lens mounts with optional mechanical autofocus lens to achieve automatic focusing.
- Supports multiple communication protocols, including TCP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, and Fins.
- Adopts controllable light source design providing diversified light.
- Ingress protection rating 67.

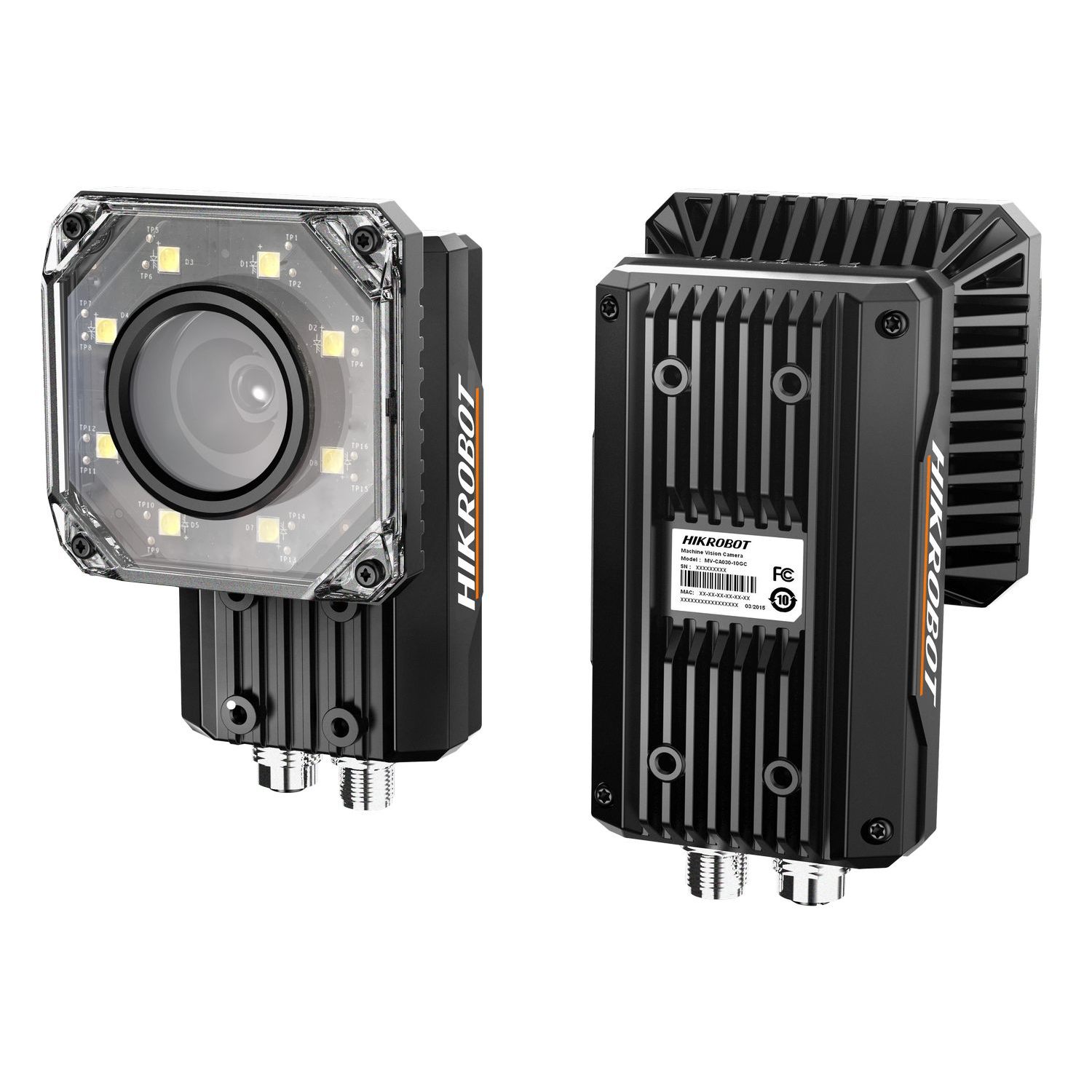

MV-ID5060M-25S-WBN
HIKROBOT Smart Code Reader ID5000 Series
HIKROBOT Smart Code Reader ID5000 Series
Based on multi-core deep learning processor, the full-featured code reader brings powerful code reading performance. Equipped with mechanical focus lens and various components, ID5000 can reach up to 20M pixels, suitable for various code reading applications.
The Smart Code Reading Camera adopts embedded multi-core algorithm. The reconstructed data stream is processed in parallel among the underlying CPU, FPGA, and DSP chips; multi-threading of shooting, positioning and decoding is realized, and the efficiency of collective auditing learning technology is improved by 3 times.
Covers 1.6-12MP resolution, cameras achieve super high code-reading accuracy and large field of view. A single device can replace the use of multiple code readers at one time, which makes complex systems easier.
Product Downloads:
| Model | Product Model | MV-ID5060M-25S-WBN |
| Type | 25mm Mechanical Autofocus lens 6MP Allfunction Industrial Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 112-dimensional codes: QR Code, Data MatrixStack codes: PDF 417 |
| Max. frame rate | 30 fps | |
| Max. reading speed | 90 codes/sec | |
| Sensor type | CMOS, rolling shutter | |
| Pixel size | 2.4 µm × 2.4 µm | |
| Sensor size | 1/1.8″ | |
| Resolution | 3072 × 2048 | |
| Exposure time | 16 μs to 1 sec | |
| Gain | 0 dB to 40 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. | |
| Power supply | 24 VDC | |
| Max. power consumption | 20 W @ 24 VDC (light source is enabled) | |
| Mechanical | Focal length | 25 mm (1.0″) |
| Lens mount | M12-mount, mechanical autofocus lens | |
| Lens cap | Transparent lens cap. Polarization lens cap is optional. | |
| Light source | White light. Red, blue, or infrared light is optional. | |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). | |

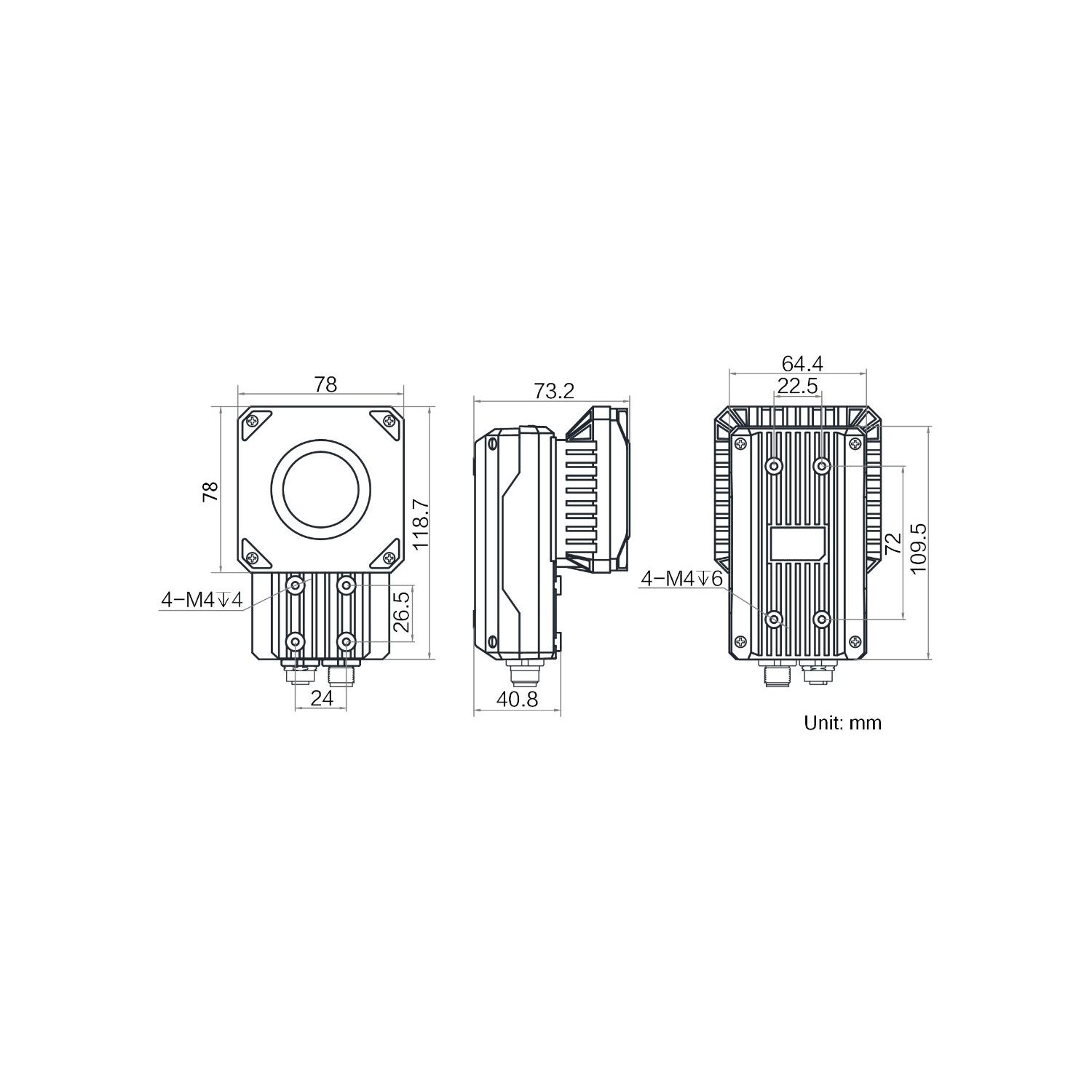

| Dimension | 118.7 mm × 78 mm × 73.2 mm (4.7″ × 3.1″ × 2.9″) | |
| Weight | Approx. 520 g (1.1 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 95% RH (non-condensation) | |
| General | Client software | IDMVS |
| Certification | CE, RoHS, KC |
