MV-LBFS-100-100-W

HIKROBOT Light Source, Flat Type

6.7W, 132x132x12.5mm, 6000 ~ 7000K, Area 100x100mm, White

HIKROBOT Light Source, Flat Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

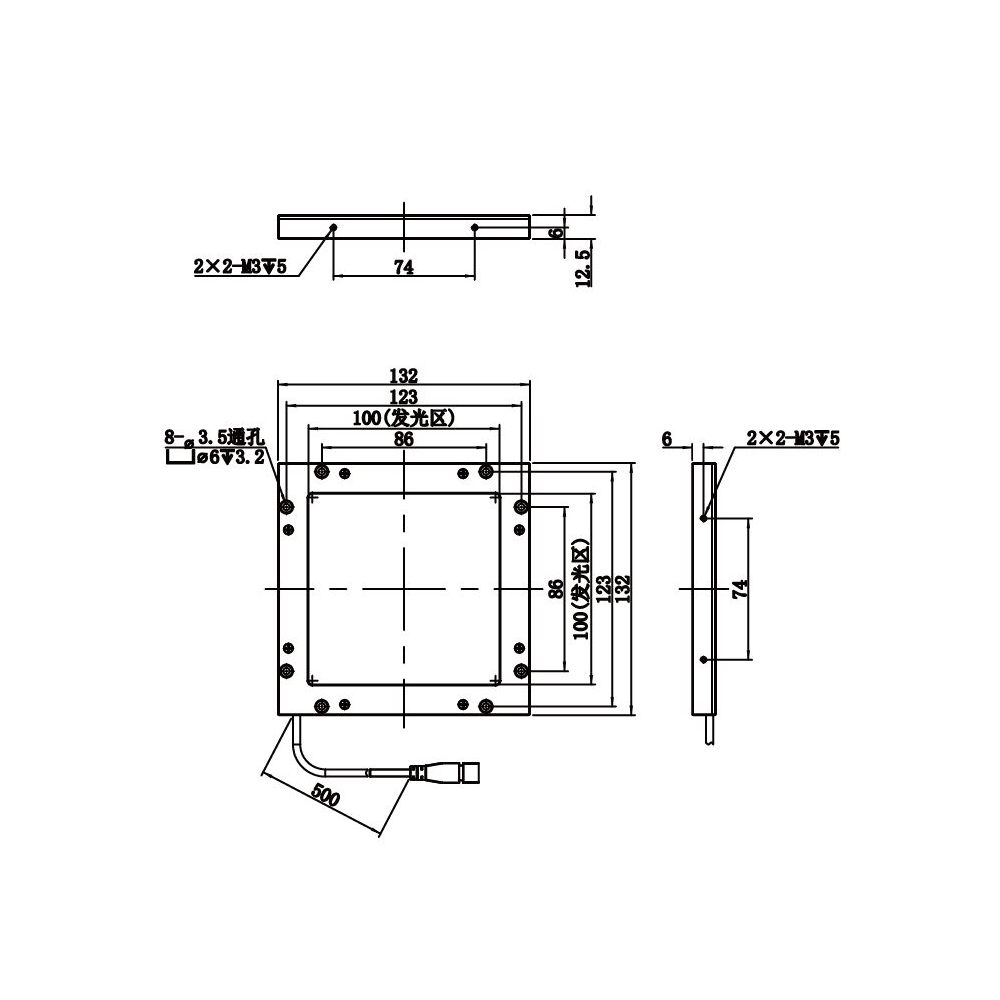

Data SheetDrawing

Compare
  • Ultra-thin thickness
  • Special light guide material, good uniformity
  • Customizable in various sizes and bands

ModelModelMV-LBFS-100-100-W
NameSide-guided surface light source MV-LBFS-100-100-W
PerformanceColorWhite
Color temperature6000~7000K
Electrical characteristicsInterface typeSMR-03V-B
Power6.7 W
StructurePower line length500 mm
Dimensions132 mm × 132 mm × 12.5 mm
Luminous surface size100 mm × 100 mm
TemperatureWorking temperature 0~40°C, storage temperature -20~60°C
Humidity20~85%RH without condensation
DiffuserStandard
