- Large luminous angle SMD LED, high-density arrangement, good uniformity
- Customizable in various sizes and bands
- A variety of installation methods are available
MV-LBSS-180-150-W
HIKROBOT Light Source, Flat Type
HIKROBOT Light Source, Flat Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LBSS-180-150-W |
| Name | Surface light source MV-LBSS-180-150-W | |
| Performance | Color | White |
| Wavelength | / | |
| Color temperature | 6000 ~ 7000K | |
| Electrical characteristics | Interface type | SMR-03V-B |
| Power | 34.6 W | |
| Structure | Power line length | 500 mm |

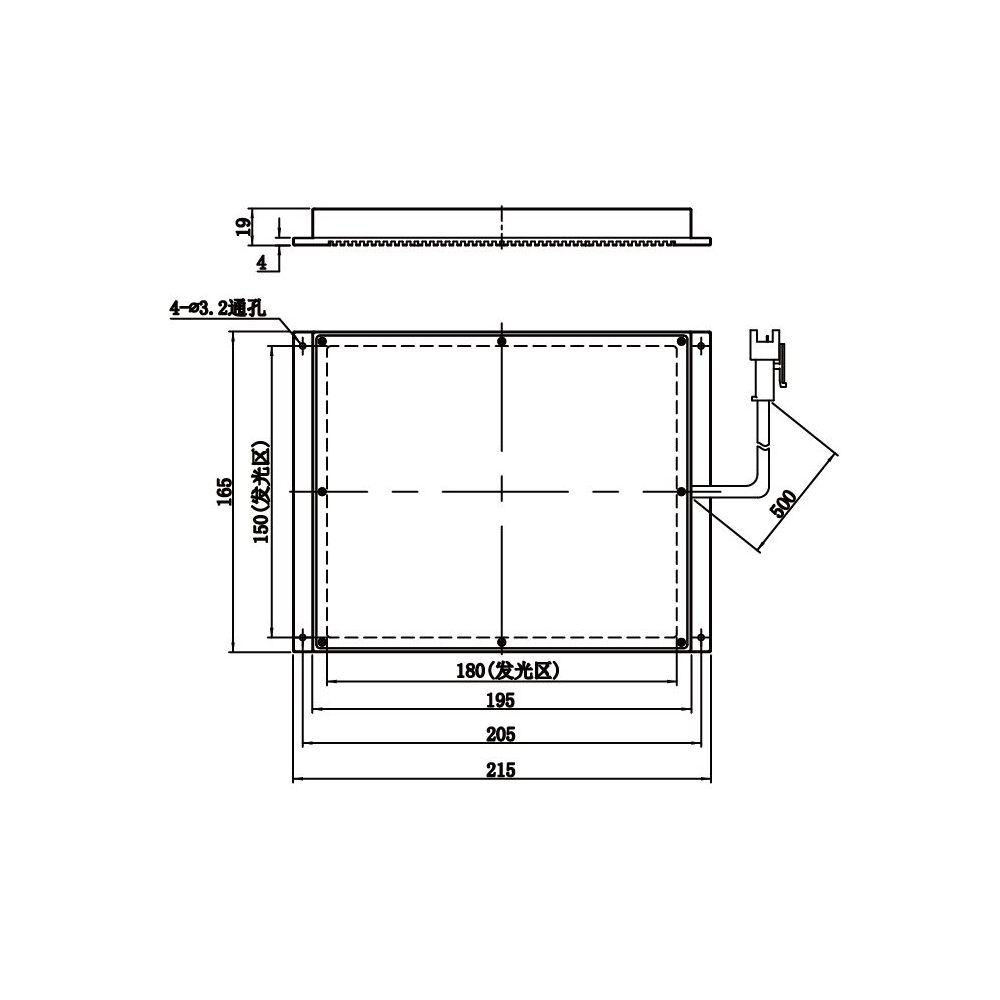

| Dimensions | 215 mm × 165 mm × 19 mm | |
| Light-emitting area size | 180 mm × 150 mm | |
| Humidity | 20~85%RH non-condensing | |
| Temperature | Operating temperature 0~40°C, storage temperature -20~60°C | |
| Diffuser | Standard |
