- High density array LED, provides uniform lighting.
- Provide side mounting lugs, flexible installation mode.
MV-LBSS-H-30-30-W
HIKROBOT Light Source, Flat Type
HIKROBOT Light Source, Flat Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Product Model | MV-LBSS-H-30-30-W |
| Type | Flat lighting，30x30 | |
| Performance | Color | White |
| Center illuminance | ≥ 2700 lux@100 mm | |
| Color temperature | 6000 ~ 7000K | |
| Electrical feature | Power consumption | 2 W |
| Output voltage | 24 VDC | |
| Connector type | SMR-03V-B | |

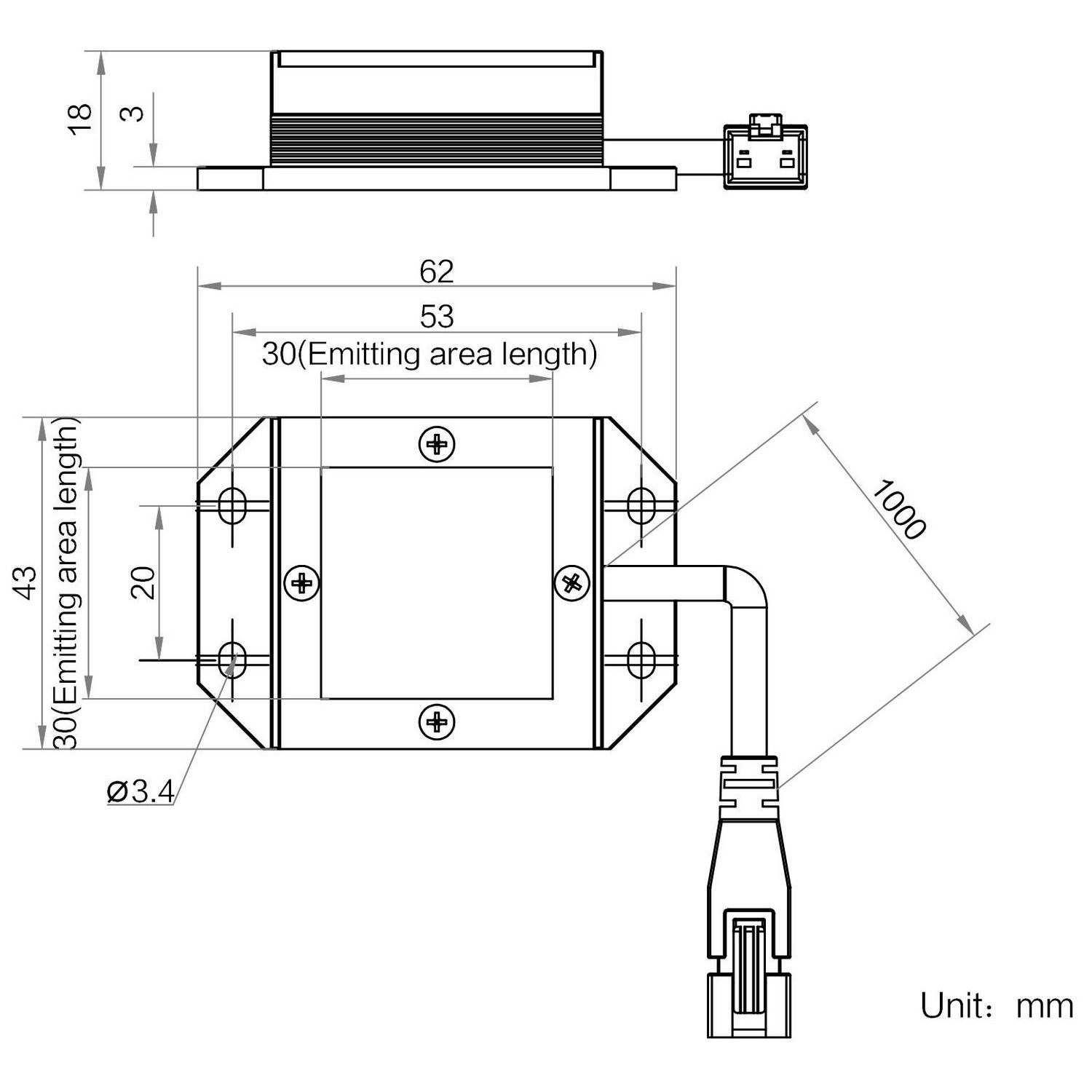

| Mechanical | Dimension | 62 mm × 43 mm × 18 mm |
| Emitting area dimensions | 30 mm × 30 mm | |
| Weight | 0.09 kg | |
| Cable length | 1 m | |
| Cooling mode | Naturual cooling | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) | |
| Humidity | 20% to 90%RH, non-condensing | |
| Diffuse plate included | Included |
