- Circular direct light source, uniform illumination in the central luminous area
- High focusing design
- Small and compact size, suitable for extremely narrow installation space

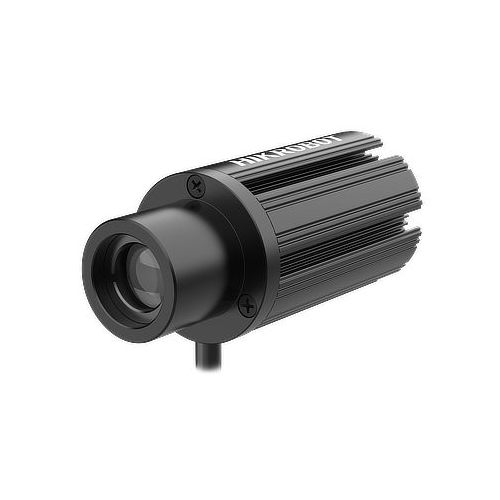

MV-LDFS-H-20-6-W
HIKROBOT Light Source, Spot Type
HIKROBOT Light Source, Spot Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LDFS-H-20-6-W |
| Name | Spotlight source, white | |
| Performance | Color | White |
| Central illumination | 65 ~ 200 mm | |
| Optimal working distance | ≥ 140k lux@WD=100 mm | |
| Color temperature | 6000 ~ 7000K | |
| Electrical characteristics | Power | 3.2 W |
| Interface type | SMR-03V-B | |

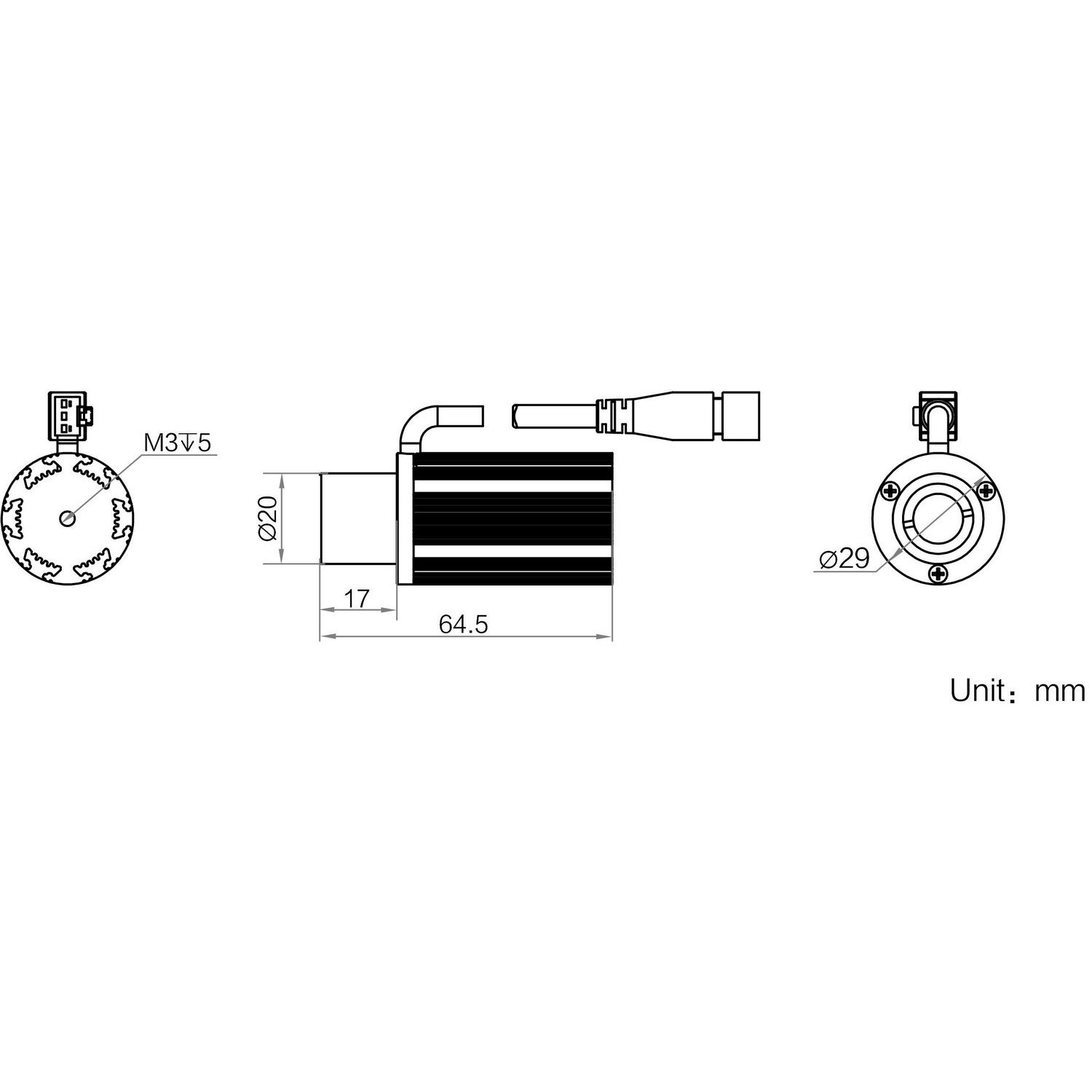

| Structure | Dimensions | 64.5 mm × Ø29 mm |
| Light outlet diameter | Ø20 mm | |
| Weight | 110 g | |
| Power cable length | 1 m | |
| Temperature | Operating temperature 0 ~ 40°C, storage temperature -20 ~ 60°C | |
| Humidity | 20 ~ 90%RH non-condensing |
