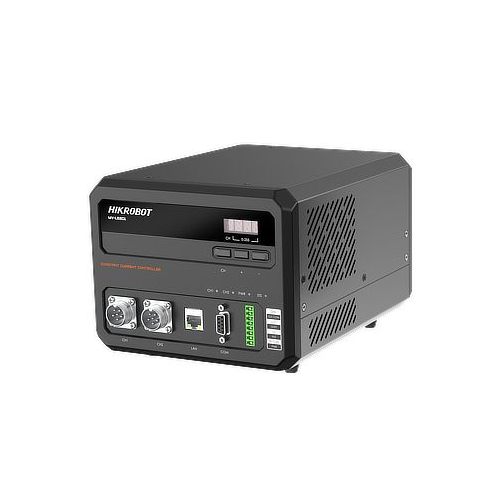

MV-LE201-200W48-2TD

HIKROBOT Light Controller, Digital, constant voltage, Input: 24VDC, Output: 48W/24VDC, Channels: 2, DB9F

Digital controller, constant voltage, Input: 24VDC, Output: 48W/24VDC, Channels: 2, DB9F

HIKROBOT Light Controller, Digital, constant voltage, Input: 24VDC, Output: 48W/24VDC, Channels: 2, DB9F

Hikrobot MV-LE series light controllers cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series by now with brand new family style design, stable and reliable performance, compatible with all light source product series.
The analog series support knob stepless dimming, helping users to achieve rapid deployment; The digital series support precise button dimming, can also flexibly configure parameters through the communication interfaces; Support Always-On & Trigger mode; Equipped with unique “Timer” linkage function, can flexibly realize multi-optical signal synchronization linkage.
Support various parameter configuration methods: panel/serial port/network port Provide demo tools (no installation needed), no need for users to query the controller communication protocol; Support MVS/SDK integration, highly match the development habits of industrial cameras, can reduce the complexity of secondary development.

Product Downloads:

DrawingUser ManualData Sheet

Compare
  • Adopts constant current to improve light source stability with max. output power of 750 W.
  • Adopts buttons and display to have quick operations.
  • Supports using serial port or network interface to set parameters and manage the device.
  • Supports external trigger interface for different lighting modes.
  • Supports overcurrent, overload, short circuit protection.

Model Product Model MV-LE201-200W48-2TD
Type Digital Light Controller,2 channel,200W/48V
Performance Drive mode Digital, constant current
Lighting mode Continued, trigger
Channel 2-channel
Dimming mode Control panel (via pressing button), software (serial port or network interface)
Brightness level 0 to 255
Lighting response time < 10 μs
Trigger mode External trigger and internal trigger
Communication protocol UDP, Serial
Applicable product Line-scan lighting
Electrical feature Input voltage 100 VAC to 240 VAC, 50 Hz/60 Hz
Input current 1.8 A (115 VAC), 1 A (230 VAC)
Output voltage 48 VDC
Output current Max. 4 A
Output power Max. 200 W
Output current for each channel Max. 4 A
Trigger in High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
Trigger out High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical Power supply interface C13 220 VAC interface
Console interface RJ45 network interface, DB9F serial port
Digital I/O Opto-isolated input × 2, opto-isolated output × 2
Lighting output connector 19M-8H (pin type)

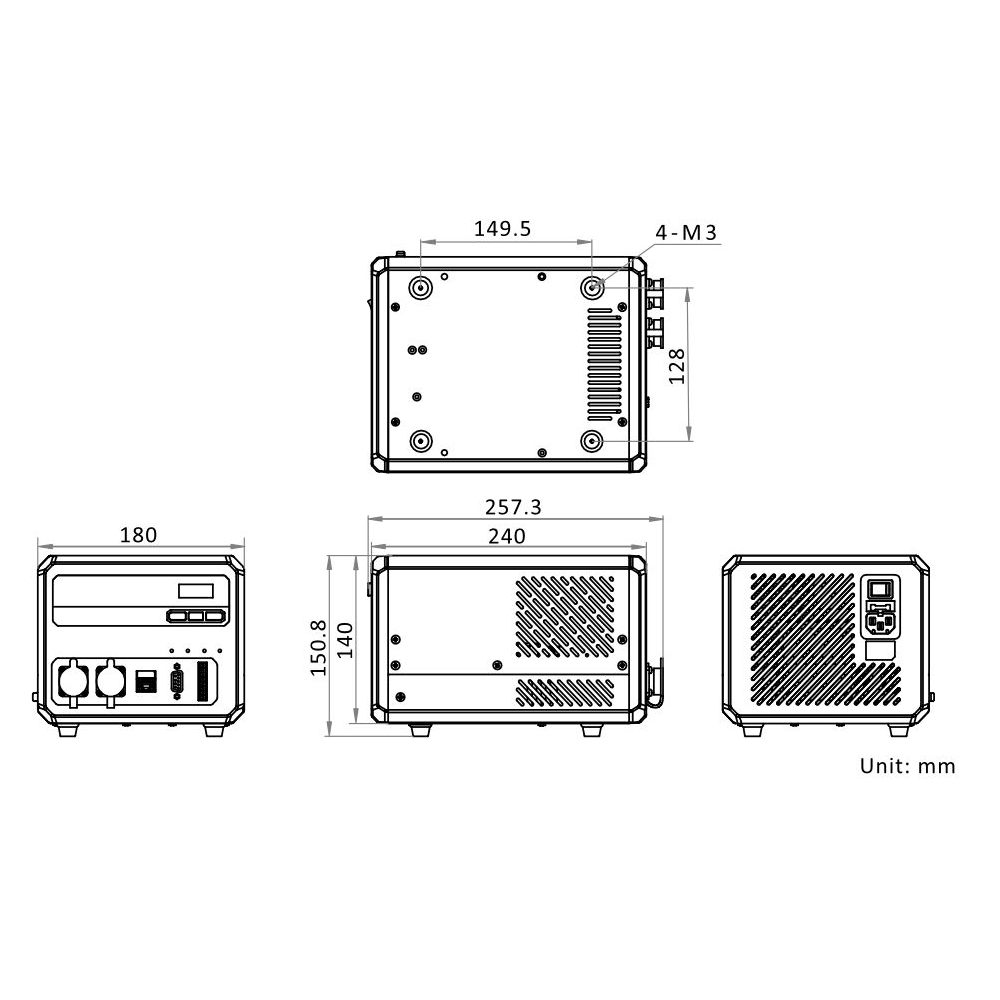

Dimension 257.3 mm × 180 mm × 150.8 mm (10.1″ ×7.1″ × 5.9″)
Shell material Plastic + SECC
Weight 2070 g (4.6 lb.)
Temperature Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity 20% to 85% RH, non-condensing
Ingress protection IP30
Cooling mode Fan cooling
General Certification CE, KC
