- Simple, compact and easy to install
- Special diffuser produces uniform high-angle lighting
MV-LGES-116-R
HIKROBOT Light Source, Dome Type
HIKROBOT Light Source, Dome Type

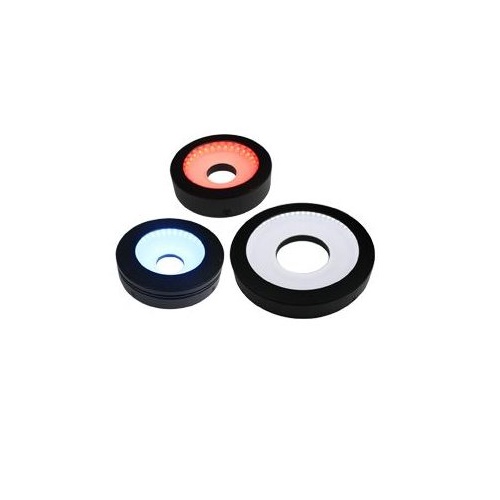

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LGES-116-R |
| Name | Flat shadowless light source MV-LGES-116-R | |
| Performance | Color | Red |
| Wavelength | 625 nm | |
| Color temperature | / | |
| Electrical characteristics | Interface type | SMR-03V-B |
| Power | 2.0 W | |
| Structure | Power line length | 500 mm |
| LED Rows | 1 | |

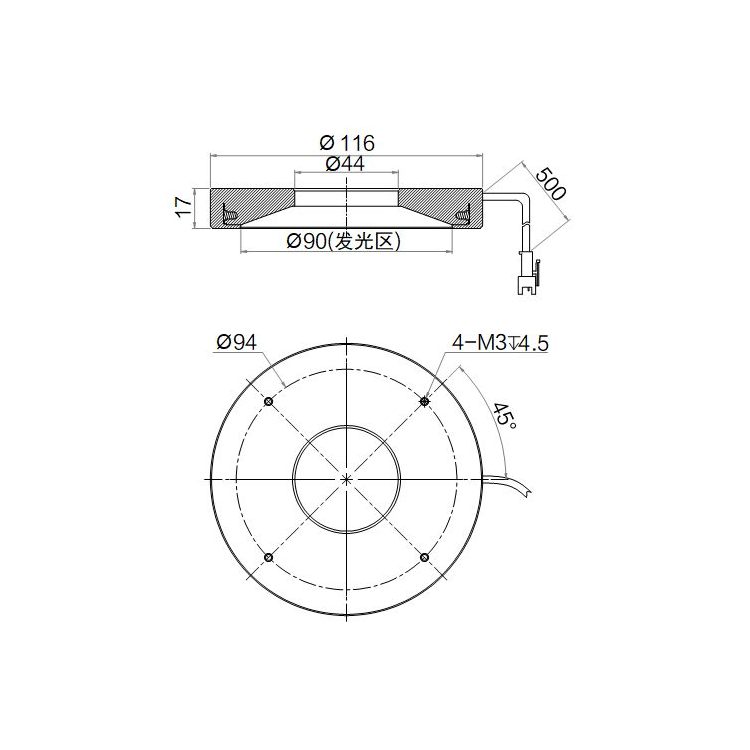

| Dimensions | Ø116 mm × 17 mm | |
| Diameter | Ø116 mm | |
| Aperture | Ø44 mm | |
| Light-emitting area | Ø90 mm | |
| Humidity | 20~85%RH without condensation | |
| Temperature | Operating temperature 0~40°C, storage temperature -20~60°C | |
| Diffuser | Standard |
