- Specially crafted hemispherical diffuser wall, good uniformity of diffused light effect
- High-power SMD LED, high brightness
- Customizable in various sizes and bands
- Multiple camera observation holes can be opened according to actual applications
MV-LGSS-260-W
HIKROBOT Light Source, Dome Type
HIKROBOT Light Source, Dome Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LGSS-260-W |
| Name | Dome light source MV-LGSS-260-W | |
| Performance | Color | White |
| Wavelength | / | |
| Color temperature | 6000~7000K | |
| Electrical characteristics | Interface type | SMR-03V-B |
| Power | 41 W | |
| Structure | Power line length | 500 mm |

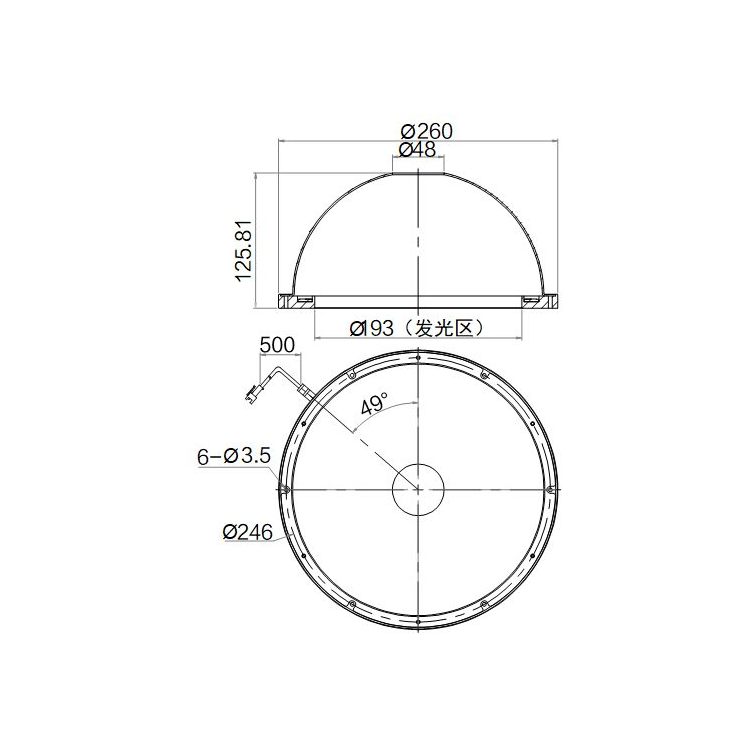

| Overall diameter | Ø260 mm | |
| Aperture | Ø48 mm | |
| Light emitting area size | Ø193 mm | |
| Temperature | Working temperature 0~40°C, storage temperature -20~60°C | |
| Humidity | 20~85%RH non-condensing | |
| Diffuser | Standard |
