- High density LED array design.
- Various outer diameter sizes and irradiation angles are available for selection.
- Compact structure design, good heat dissipation design.
- Provide diffuse plate included, improve lighting uniformity.
MV-LRDS-H-80-90-W

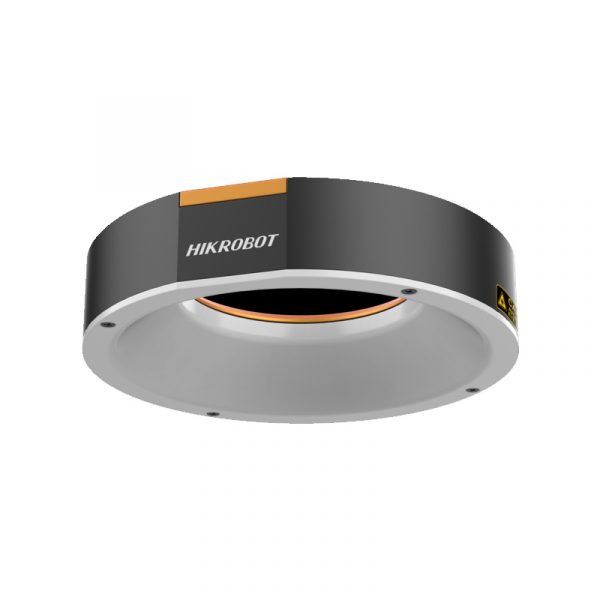

HIKROBOT Light Source, Ring Type
HIKROBOT Light Source, Ring Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Product Model | MV-LRDS-H-80-90-W |
| Type | MV-LRDS-H-80-90-W | |
| Performance | Color | White |
| Best working distance | 100~110 mm | |
| Irradiation angle | 90° | |
| Color temperature | 6000 ~ 7500K | |
| Electrical feature | Power consumption | 7.2 W |
| Input voltage | 24 VDC | |
| Connector type | SMR-03V-B | |

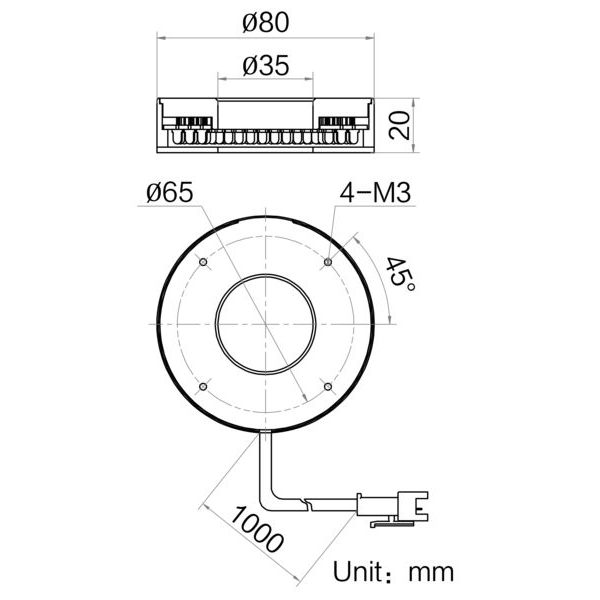

| Mechanical | Dimension | Φ80 mm × 20 mm |
| Outer dimensions | Φ80 mm | |
| Bore dimensions | Φ35 mm | |
| Emitting area length | Φ72 mm | |
| LED rows | 3 | |
| Weight | 218 g | |
| Cable length | 1 m | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) | |
| Humidity | 20% to 90%RH, non-condensing | |
| Diffuse plate included | PMMA |
