- Using SMD LED with large light emission angle, high uniformity
- Single color and multi-color can be customized
MV-LRSS-116-W
HIKROBOT Light Source, Ring Type
HIKROBOT Light Source, Ring Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LRSS-116-W |
| Name | Ring-shaped shadowless light source MV-LRSS-116-W | |
| Performance | Color | White |
| Wavelength | / | |
| Color temperature | 6000 ~ 7000K | |
| Electrical characteristics | Interface type | SMR-03V-B |
| Power | 16 W | |
| Structure | LED Rows | 1 |
| Length of power supply line | 500 mm | |

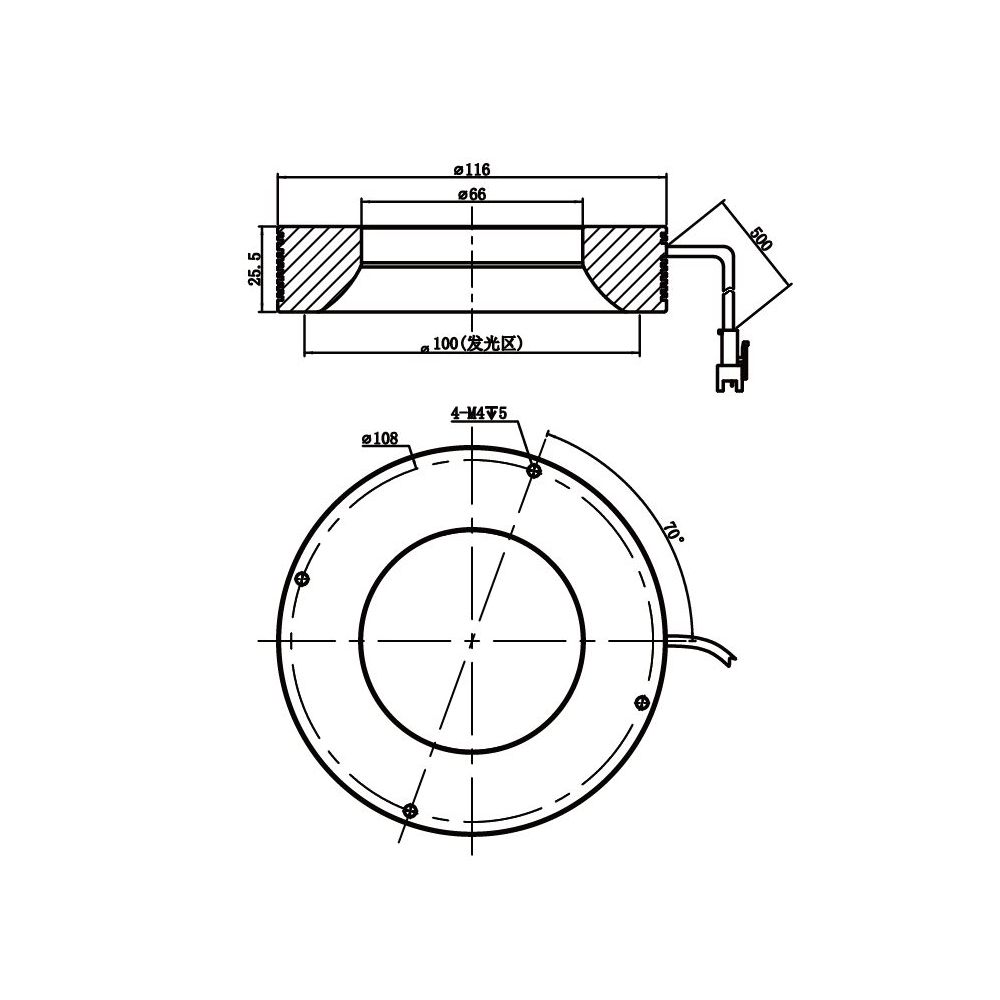

| Dimensions | Ø116 mm × 25.5 mm | |
| Outer diameter | Ø116 mm | |
| Opening aperture | Ø66 mm | |
| Luminous area diameter | Ø100 mm | |
| Temperature | Working temperature 0~40°C, storage temperature -20~60°C | |
| Humidity | 20~85%RH non-condensing | |
| Diffuser | Included |
