- Aluminum alloy one-piece shell, good heat dissipation
- Add diffusion film, good uniformity
- Nut slots on the top and bottom, flexible installation
MV-LTDS-300-W
HIKROBOT Light Source, Line Type
HIKROBOT Light Source, Line Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LTDS-300-W |
| Name | Standard Line Light SourceMV-LTDS-300-W | |
| Performance | Color | White |
| Color Temperature | 6000~7000K | |
| Electrical Characteristics | Interface Type | 20M-4J |
| Power | 46.1 W | |
| Structure | Number of Lamp Bead Rows | 1 |
| Length of Power Supply Line | 500 mm | |

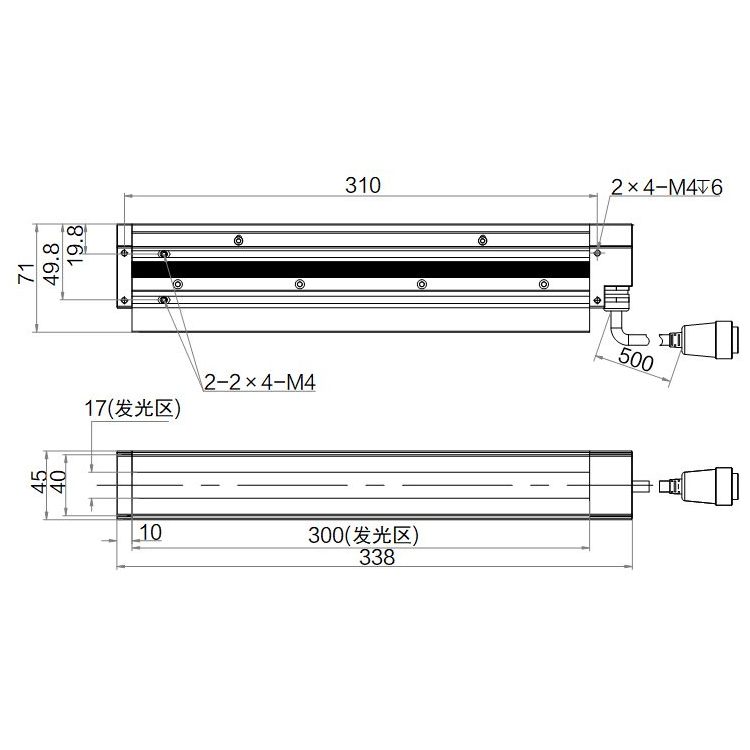

| Dimensions | 338 mm × 45 mm × 49.8 mm | |
| Light-emitting area | 300 mm × 17 mm | |
| Temperature | Operating temperature 0~40°C, storage temperature -20~60°C | |
| Humidity | 20~85%RH non-condensing | |
| Diffuser | Included |
