- The high-power LED light bead is designed with a high condensing structure, and the illumination on the surface of the lighting can reach 1 million lux.
- The enclosure is equipped with a fan for heat dissipation, which improves the working life of the lighting.
- Multi-side for flexible installation.
MV-LTDS-H-400-W
HIKROBOT Light Source, Line Type
HIKROBOT Light Source, Line Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Product Model | MV-LTDS-H-400-W |
| Type | MV-LTDS-H-400-W | |
| Performance | Color | White |
| Color temperature | 6000 ~ 7000K | |
| Center illuminance | ≥100W Lux@WD=50 mm | |
| Best working distance | 10 ~ 200 mm | |
| Electrical feature | Power consumption | 168 W |
| Connector type | 19M-8H | |

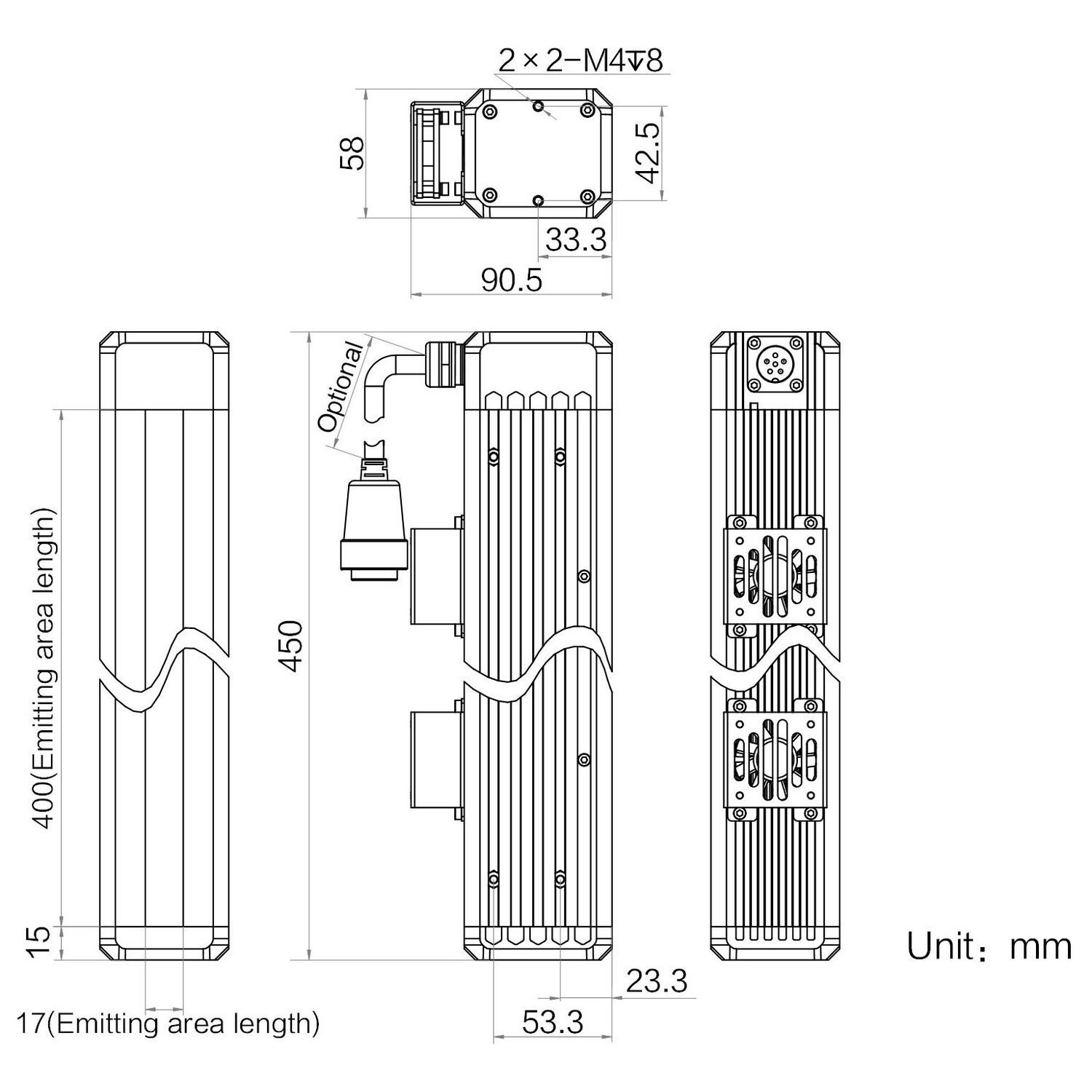

| Mechanical | Dimension | 450 mm × 58 mm × 90.5 mm |
| Emitting area dimensions | 400 mm × 17 mm | |
| LED rows | 1 | |
| Weight | 2.62 kg | |
| Cable length | Additional options | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) | |
| Humidity | 20% to 90%RH, non-condensing |
