MV-LTHS-1500-W

HIKROBOT Light Source, Line Type

653W, 1570x58x90.1mm, 6000 ~ 7000K, Area 1500x17mm, LED Rows: 1, Line, White

HIKROBOT Light Source, Line Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

DrawingData Sheet

Compare
  • Aluminum alloy one-piece shell and fan, good heat dissipation
  • Imported high-power LED, brightness up to 1 million LUX
  • Nut slots on the top and bottom for flexible installation

ModelModelMV-LTHS-1500-W
NameHigh-brightness line light source MV-LTHS-1500-W
PerformanceColorWhite
Wavelength/
Color temperature6000 ~ 7000K
Electrical characteristicsInterface typeDual-channel 19M-6H
Power653 W
StructureLED Rows1

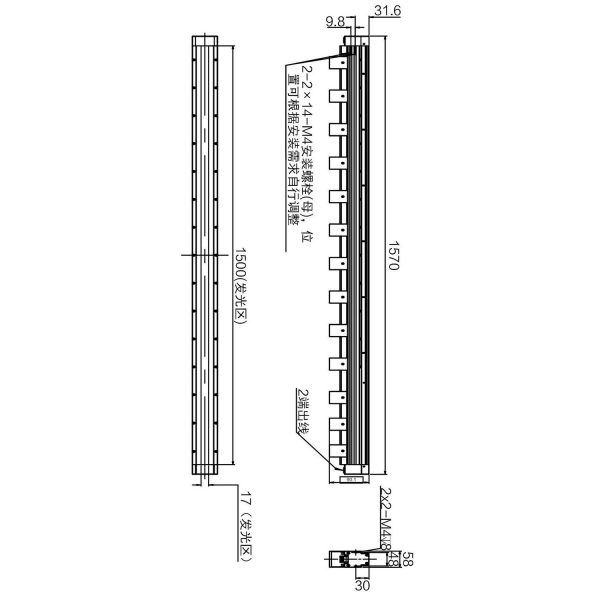

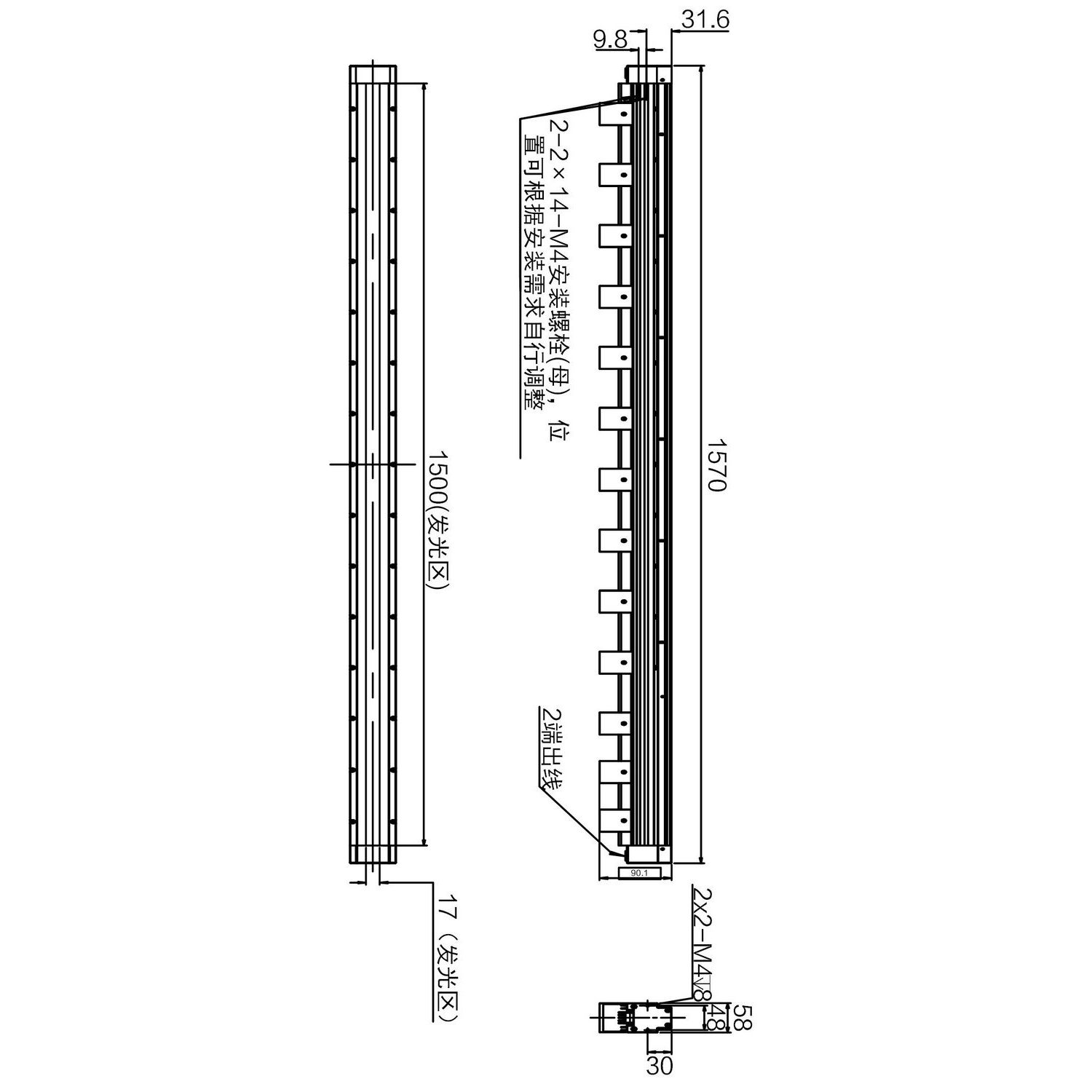

Dimensions1570 mm × 58 mm × 90.1 mm
Light-emitting area size1500 mm × 17 mm
TemperatureWorking temperature 0~40°C, storage temperature -20~60°C
Humidity20~85%RH without condensation
DiffuserIncluded
