- Aluminum alloy one-piece shell and fan for good heat dissipation
- Imported high-power LED with brightness up to 1 million LUX
- Nut slots on the top and bottom for flexible installation
MV-LTHS-800-W

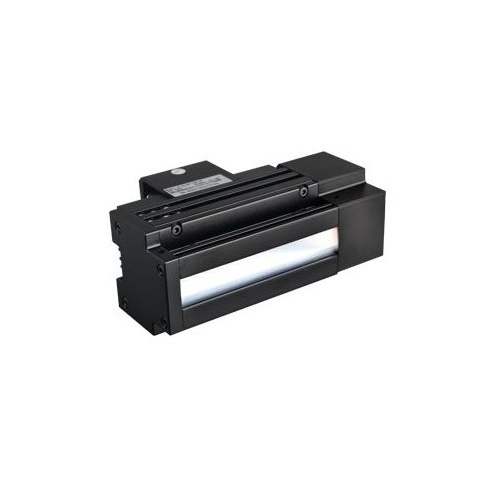

HIKROBOT Light Source, Line Type
HIKROBOT Light Source, Line Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LTHS-800-W |
| Name | High-brightness line light source MV-LTHS-800-W | |
| Performance | Color | White |
| Wavelength | / | |
| Color temperature | 6000 ~ 7000K | |
| Electrical characteristics | Interface type | Dual-channel 19M-6H |
| Power | 384 W | |
| Structure | LED Rows | 1 |

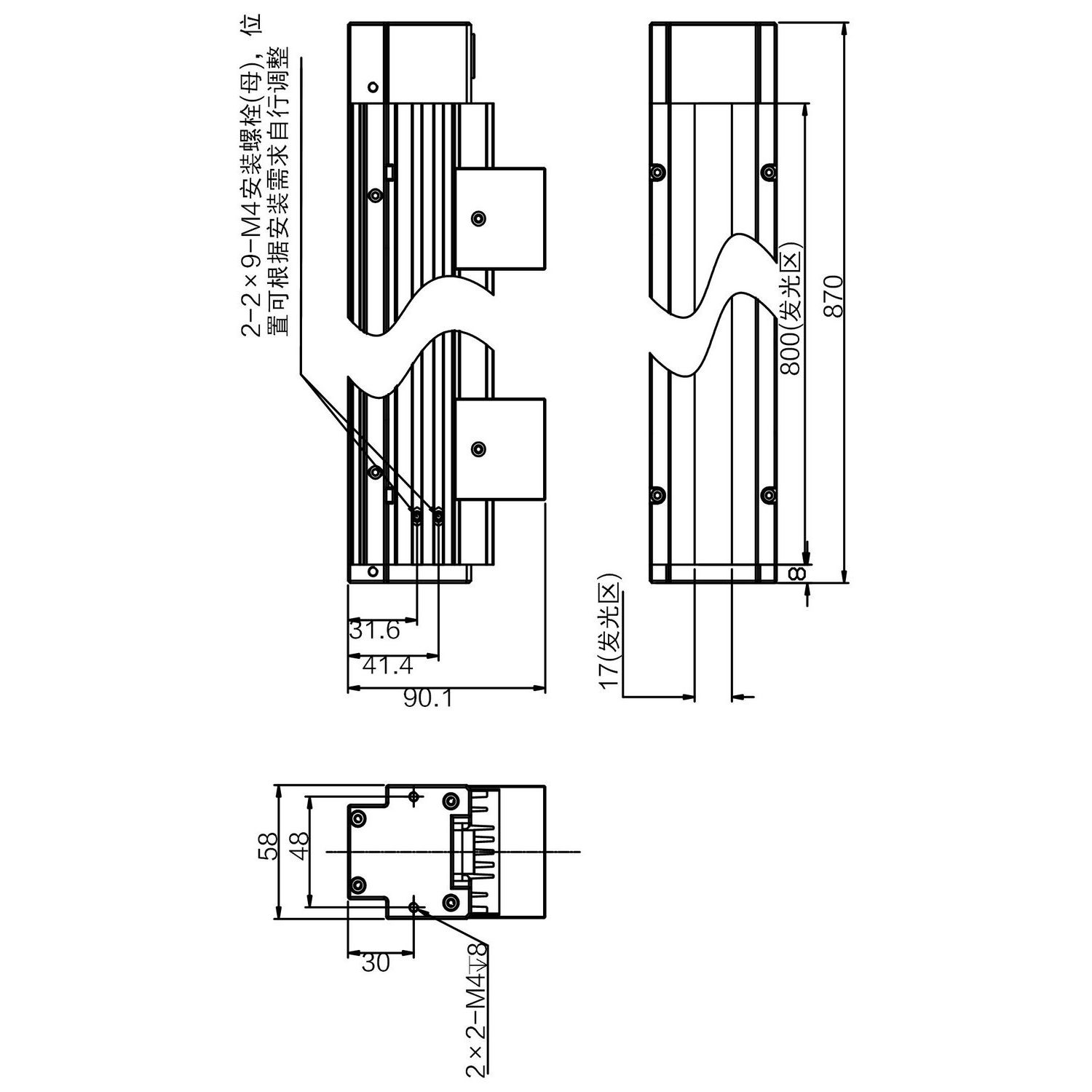

| Dimensions | 870 mm × 58 mm × 90.1 mm | |
| Light-emitting area dimensions | 800 mm × 17 mm | |
| Temperature | Working temperature 0~40°C, storage temperature -20~60°C | |
| Humidity | 20~85%RH without condensation | |
| Diffuser | Included |
