- Provides a variety of lengths to meet the installation methods of different distances of light sources
- Provides a variety of light source interfaces to adapt to various light source interface types
MV-LW-005-2-S
HIKROBOT Light Source extension cable, SMR-03V-B to SMR-03V-B, 5m
HIKROBOT Light Source extension cable, SMR-03V-B to SMR-03V-B, 5m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Model | MV-LW-005-2-S |

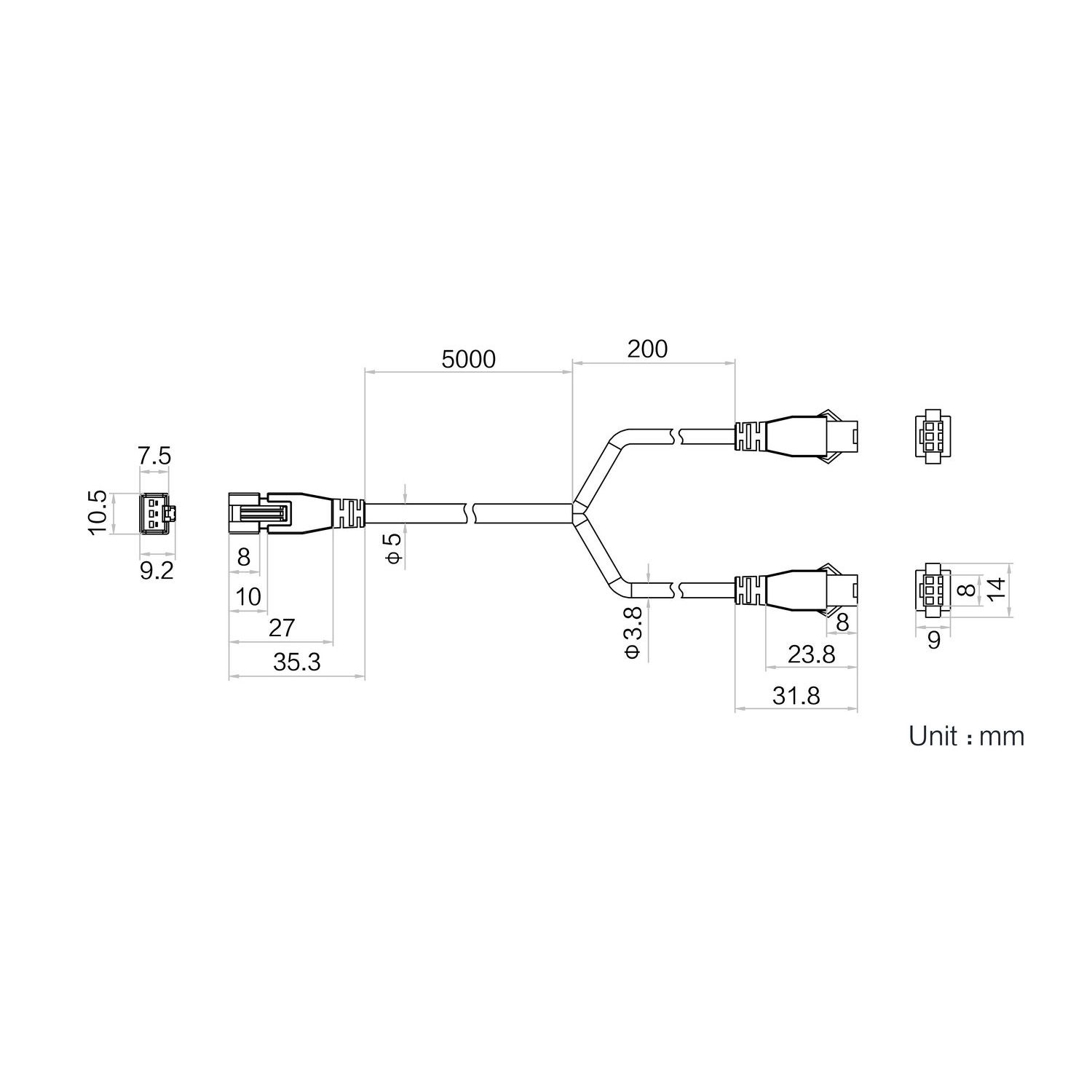

| Name | Light source extension cable, 1 to 2, 5m, SMR-03V-B interface | |
| Physical specifications | Number of channels | 2 |
| A-end interface | SMR-03V-BC | |
| B-end interface | SMR-03V-B | |
| Length | 5 m | |
| Wire harness diameter | φ5 mm | |
| Cable material | TPU | |
| ±90° bending cycle number | 5 million times | |
| Minimum bending radius | 60 mm | |
| Maximum number of pluggable times | 2 Ten thousand times | |
| Cable flammability level | 3 A | |
| Electrical specifications | Insulation characteristics | ≥ 10 MΩ |
| Withstand voltage | 300 | |
| Structure | Temperature | Working temperature -20 ~ 40°C, storage temperature -20 ~ 60°C |
| Humidity | 20% ~ 85%RH | |
| IP protection level | IP30 (when properly installed) | |
| General Specifications | Certification | RoHS |
