| Model | Model | MV-VC3702P-128G60 |
| Name | I7-8700, 8GB+128G SSD+2T HDD, no POE, supports PCIE expansion, without VM encryption | |
| Performance | Processor | Intel® CoreTM i7-8700 |
| Memory | 8 GB | |
| Storage | 128G SSD and 2T HDD, 1 mSATA expansion interface | |
| Graphics processor | Intel® HD Graphics 630 | |
| Operating system | Windows 10 64-bit, not activated | |
| External Interface | Video Output | 1 HDMI port, 1 VGA port Supports simultaneous independent display output Maximum support 1920 × 1080 @60Hz |
| Digital I/O | Supports 3-way optocoupler isolation input Supports 8-way optocoupler isolation output (supports NPN/PNP switching) | |
| Network Interface | 6 Intel Gigabit Ethernet port | |
| USB interface | 4 USB2.0 interfaces 4 USB3.0 interfaces 1 built-in USB2.0 interface | |
| Serial port | 2 full-function RS-232 | |
| Expansion interface | 1 PCIE3.0 x16 interface | |
| Electrical characteristics | Power supply | 24 VDC |
| Typical power consumption | 95 W | |

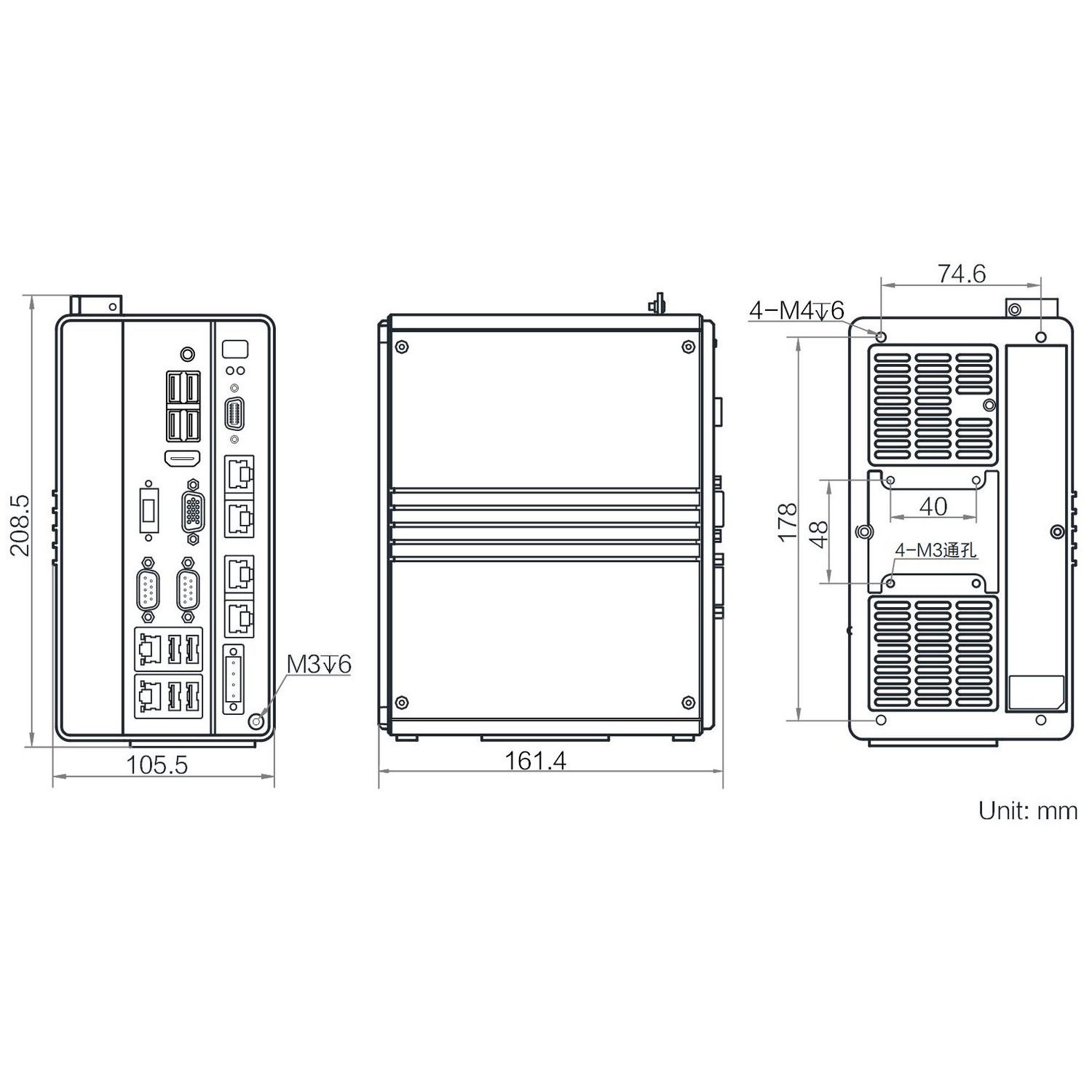

| Structure | Dimensions | 161.4 mm×208.5 mm×105.5 mm |
| Weight | Approx. 2.1 kg | |
| Temperature | 0 ~ 50 °C | |
| Humidity | 20%~95% RH non-condensing | |
| General Specifications | Certification | CE |
MV-VC3702P-128G60
HIKROBOT Vision Controller Industrial PC
HIKROBOT Vision Controller Industrial PC
- Equipped with desktop-level Intel 8th generation CPU, providing powerful computing performance
- Powerful expansion slot configuration, meeting the expansion of commonly used image acquisition interfaces for machine vision, stable performance
- Support GPIO function, output supports NPN/PNP switching
- Adopt Intel Gigabit network port, support high-speed and stable image transmission
- Support PCIE3.0 x16 interface
- Optional built-in USB interface or built-in dongle device, easy to deploy and maintain on site
- Additional light source and IO expansion modules, up to 2 modules supported
