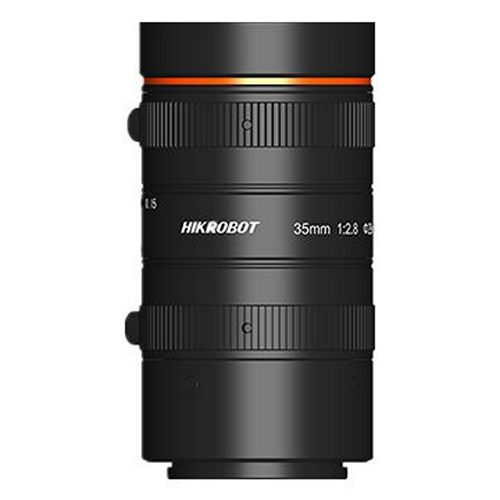

MVL-AF3528M-M42A

HIKROBOT Lens, FA Series, AF

35mm, F2.8 ~ F16, Ø 29mm, M42 × P1

HIKROBOT Lens, FA Series, AF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

DrawingData Sheet

SKU: MVL-AF3528M-M42A Categories: , Tags: , , ,
Compare
  • High precision lens for 8K7U line array cameras
  • Excellent picture sharpness consistency, low distortion
  • Superior resolution at maximum aperture of F2.8
  • Maximum image size Φ29mm

ModelProduct ModelMVL-AF3528M-M42A
Type35mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.164X, M42-Mount
PerformanceFocal length35 mm
F-NumberF2.8 ~ F16
Image SizeΦ29 mm
Optical Distortion-0.16%
Magnification Range0.164x ~ 0.001x
Working Distance Range200 ~ inf ±5 mm
MechanicalIris ControlManual
Focus ControlManual
Filter ThreadM52 × P0.75
MountM42 × P1
Flange Back Length12 mm

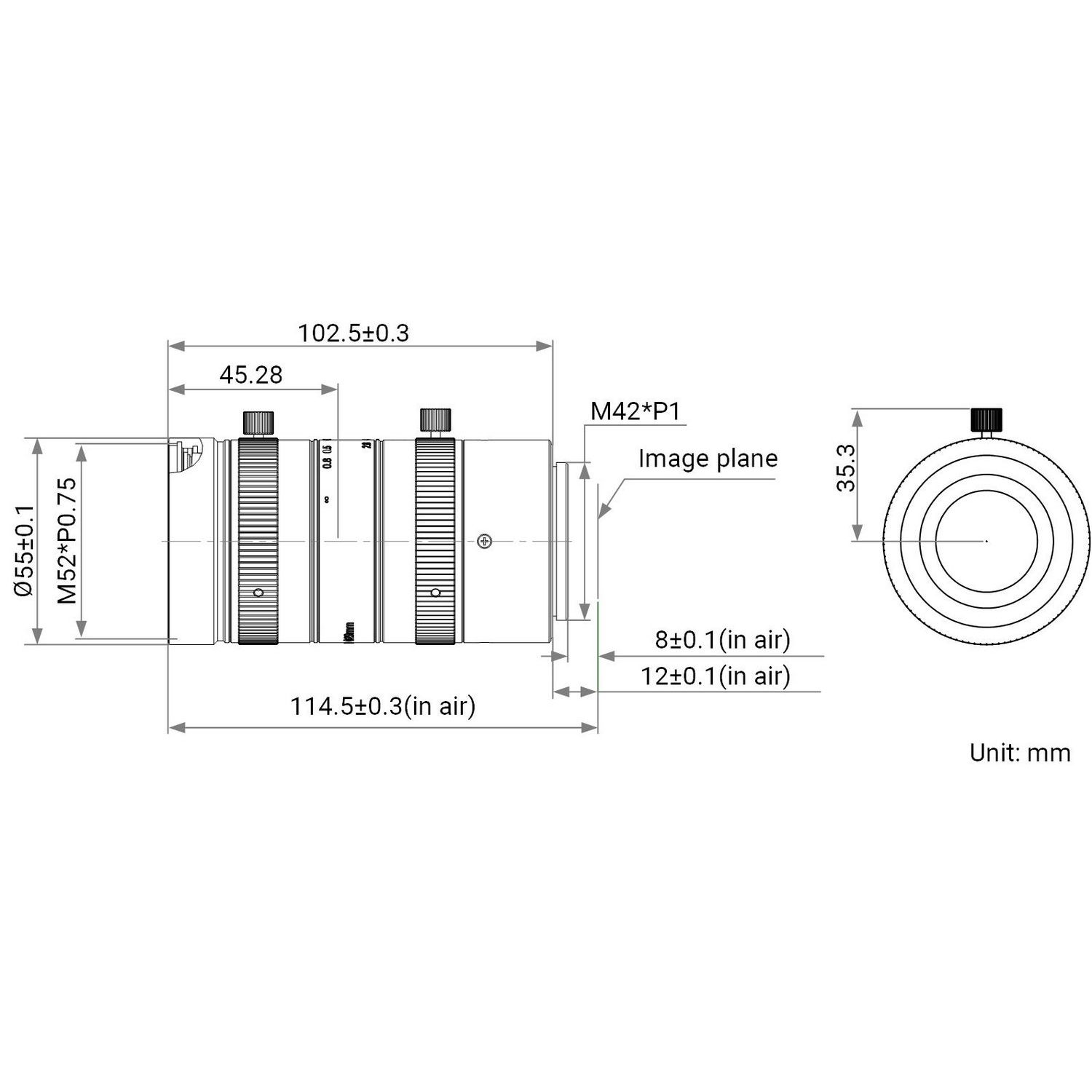

DimensionΦ55 × 102.5 mm
Temperature-10 ~ 50℃
GeneralCertificationRoHS2.0
