- Ultra high resolution and consistency of image clarity
- 1.2″ image circle, bigger aperture, lower distortion, higher illumination relative
- Achromatic optical system design, better imaging performance with color camera
- Maintain excellent optical properties at different object distances
- Excellent vibration resistance and stability at high and low temperature performance, optical axis shifting within pixel level
- Multilayer and broadband coating design, compatible with visible and near infrared applications

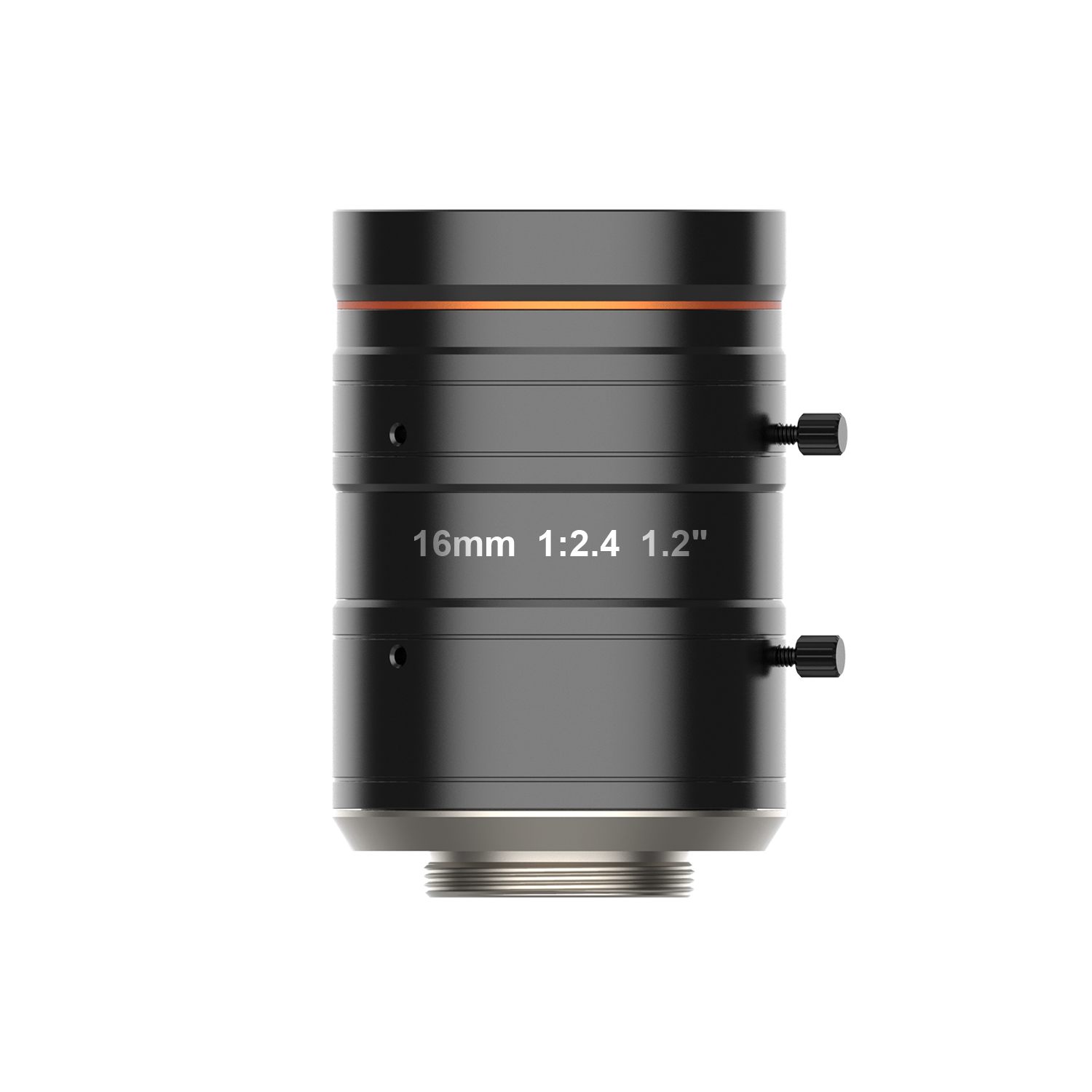

MVL-KF1624M-25MP
HIKROBOT Lens, FA Series, KF
HIKROBOT Lens, FA Series, KF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | MVL-KF1624M-25MP |
| Type | 16mm, F2.4, 1.2″, 25MP Lens, C-Mount | |
| Performance | Focal length | 16 mm |
| F-Number | F2.4 ~ F16 | |
| Image Size | Φ19.3 mm(1.2”) | |
| Distortion | 0.07% | |
| Minimum Object Distance | 0.1 m | |
| Field of View | D（19.30mm）：61.61°H（14.60mm）：48.82°V（12.63mm）：42.89° | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M40.5 × 0.5 | |
| Mount | C-Mount | |
| Flange Back Length | 17.526 mm | |

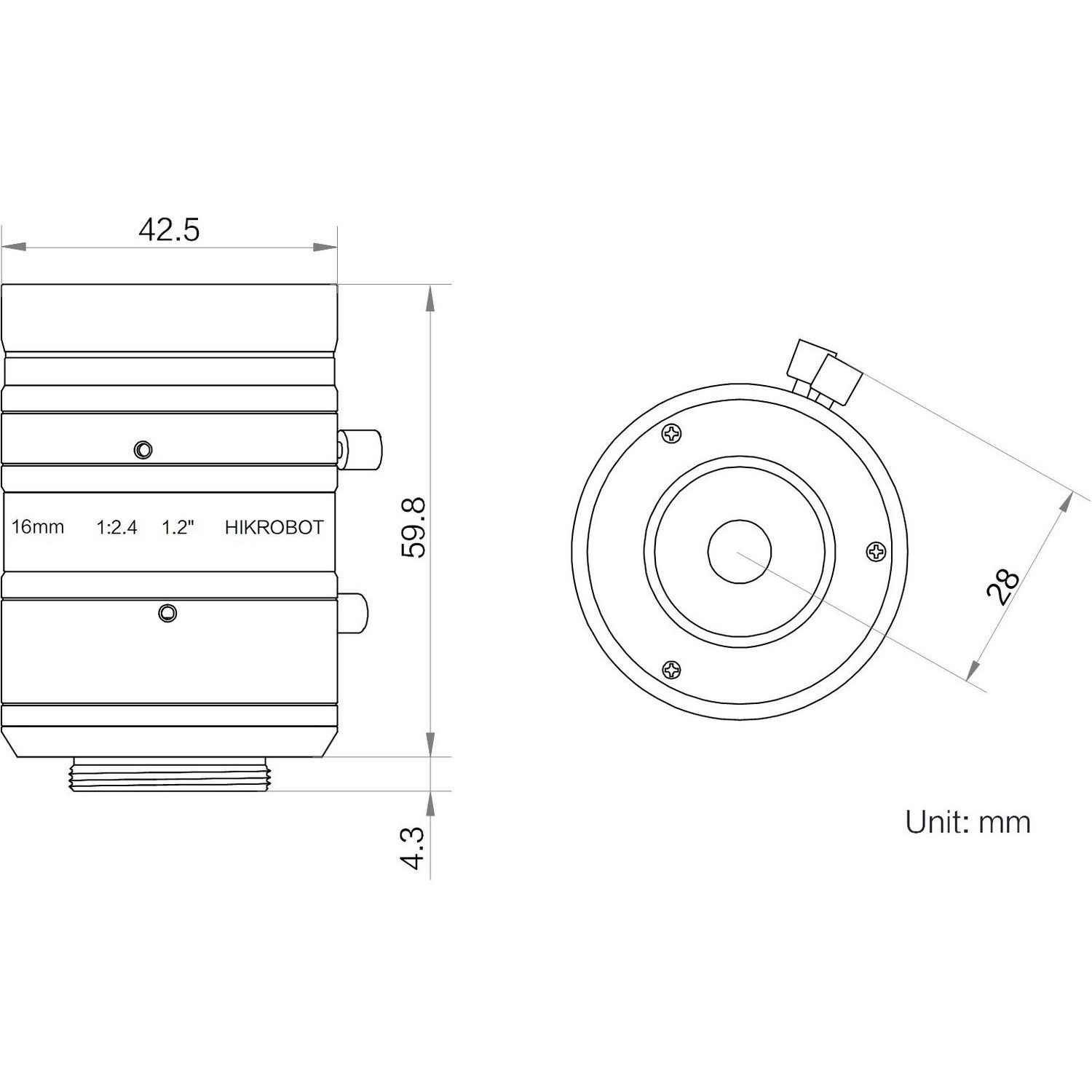

| Dimension | Φ42.5 × 59.8 mm | |
| Weight | 186 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
