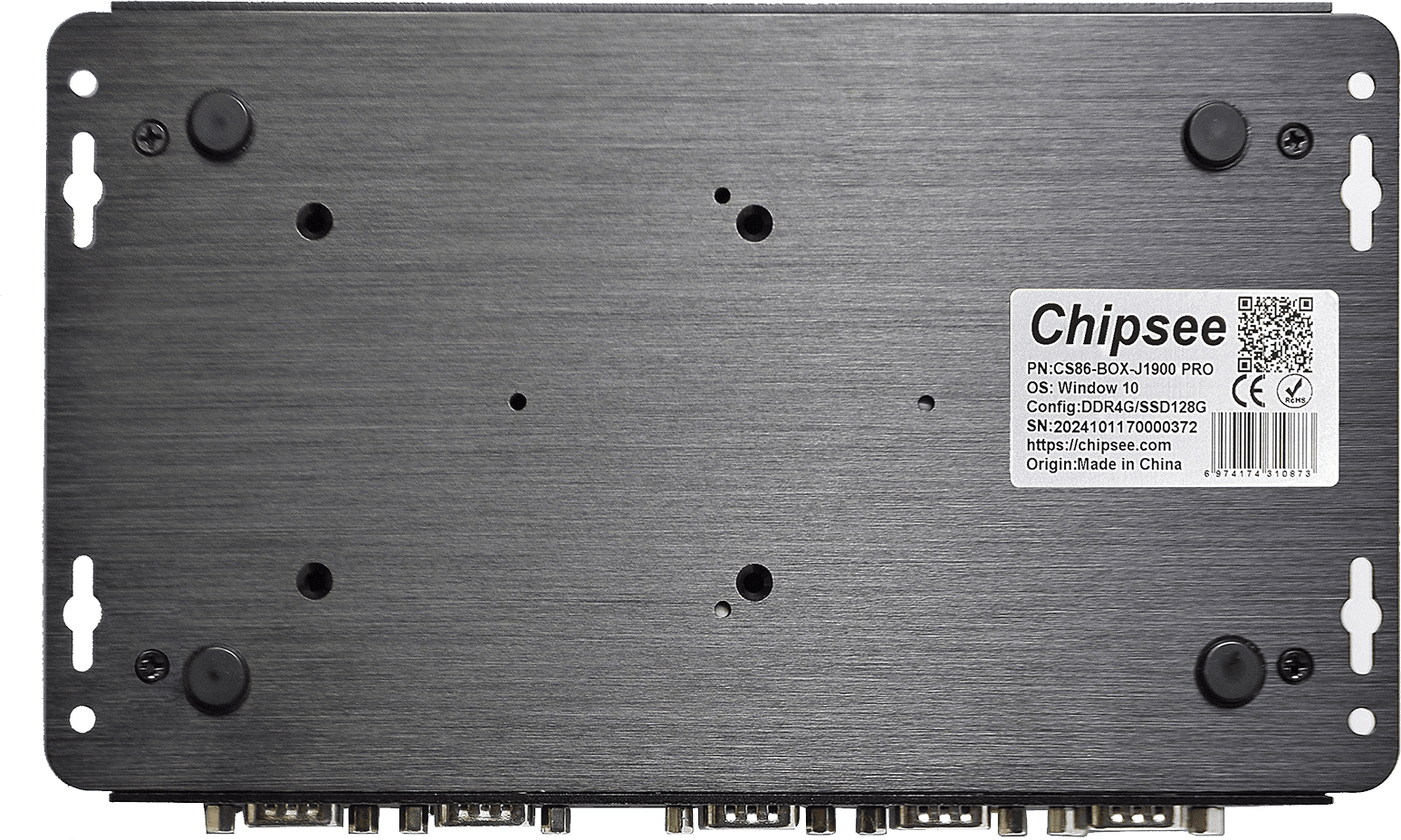

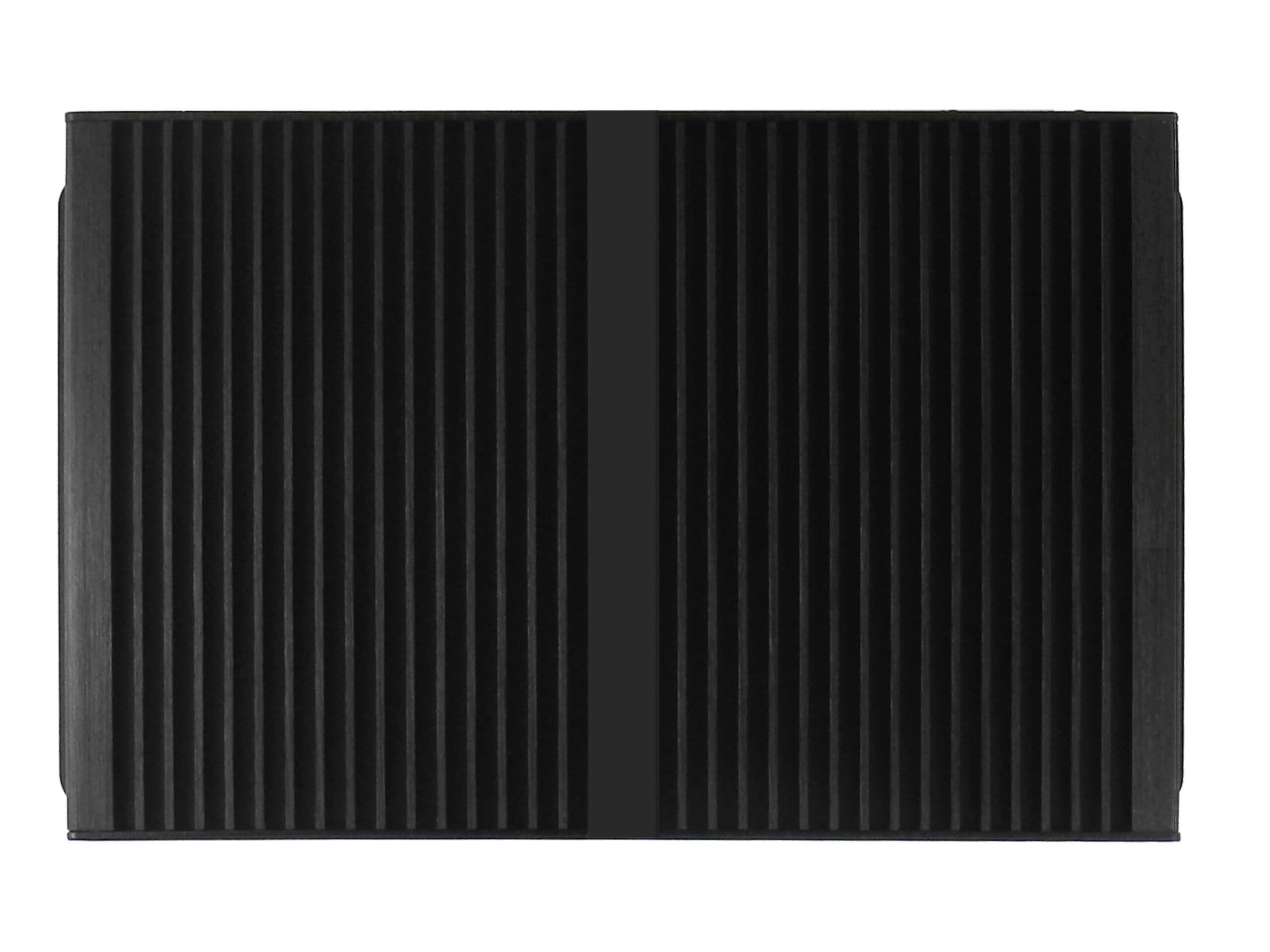

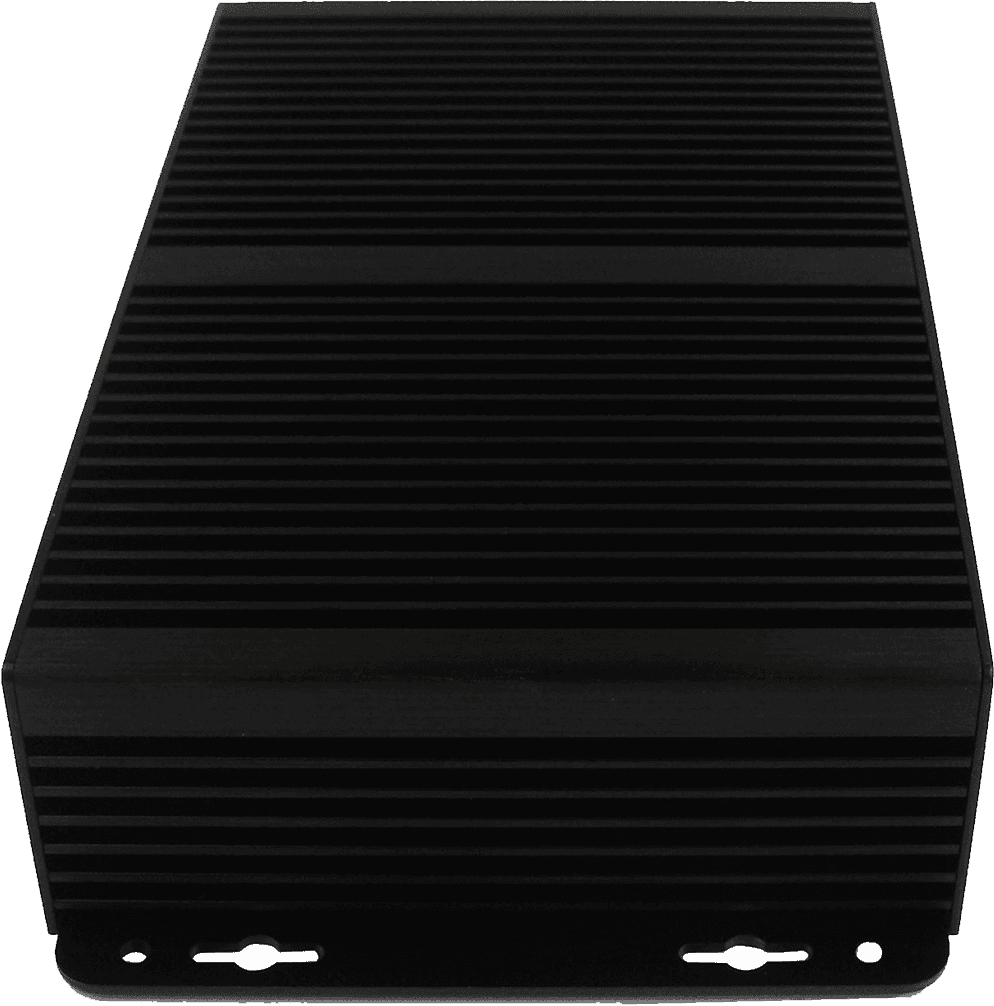

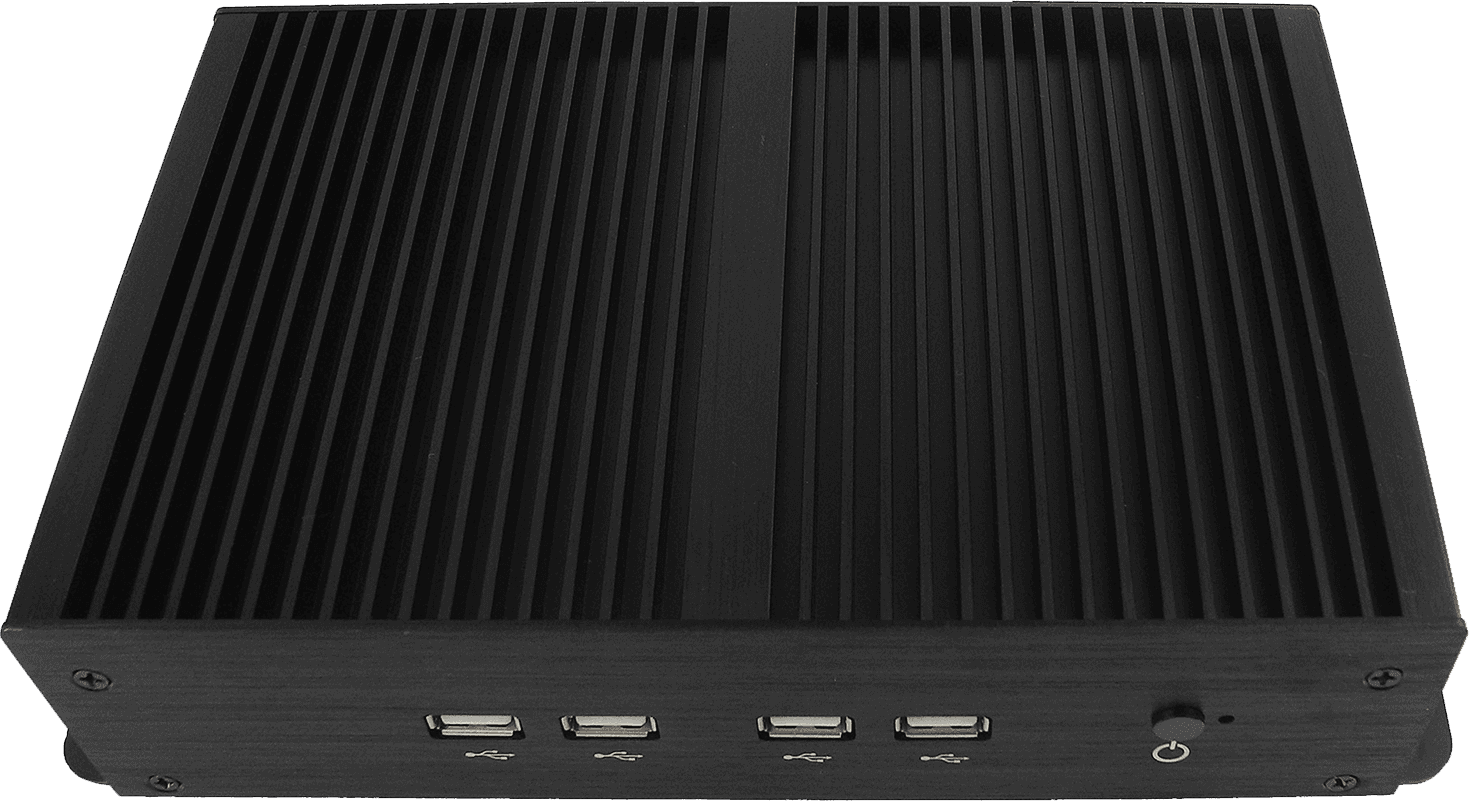

Бокс компютри — INTEL: Celeron J1900, 4GB(1 x 4GB) DDR3L 1600MHz (default), Up to 8GB (single channel, optional)
Спецификации
- SKU
- CS86-BOX-J1900-PRO
- Нетно тегло
- 1500 g
- Форм-фактор
- Box
- Процесор
- INTEL: Celeron J1900
- Дънна платка
- BayTrail, AMI BIOS
- Графичен процесор
- Intel® HD Graphics
- Оперативна памет
- 4GB(1 x 4GB) DDR3L 1600MHz (default), Up to 8GB (single channel, optional)
- Постоянна памет
- Default mSATA 128GB SSD (supports up to 2TB), supports 2.5” SATA HDD (SATA2.0)

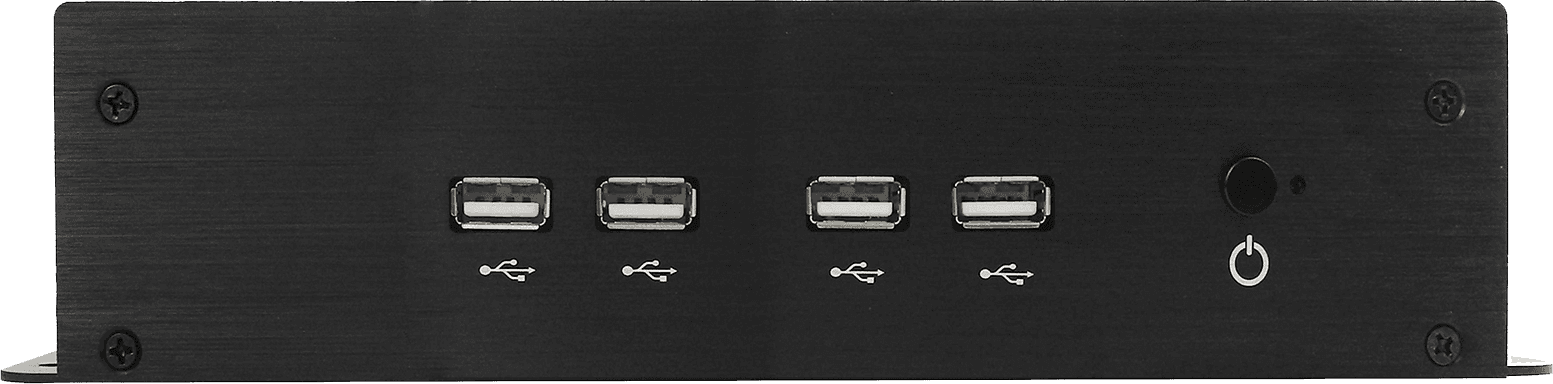

- USB
- 1 x USB 3.0; 5 x USB 2.0 HOST ports (Type A)

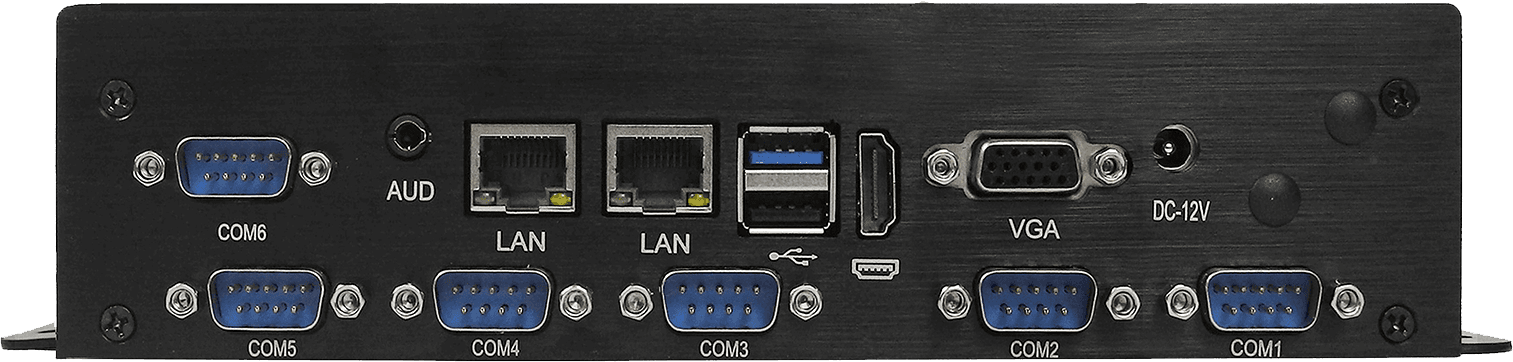

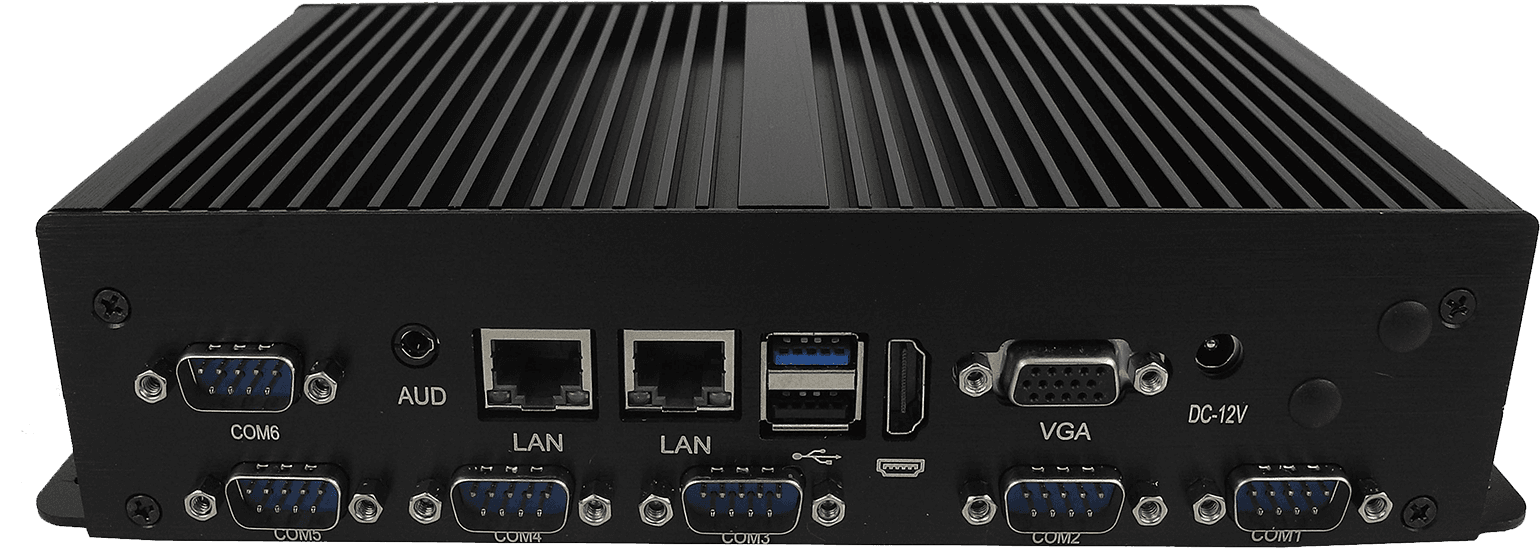

- UART
- Default 6 x RS232 (COM1 ~ COM5 can be configured to 5 x RS485 by using a internal RS232 to RS485 board)
- Ethernet
- 2 x RJ45, GbE (Intel® i211), Wake on LAN (WoL) support
- HDMI
- 1 x HDMI Out port, up to 2560x1600 60Hz, independent/identical display with VGA
- PCIe
- 1 x full size mini PCIe
- SATA
- 1 x Full size mSATA, 1 x SATA
- VGA
- 1 x VGA Out port, up to 1920x1080 60Hz, independent/identical display with HDMI
- 4G
- Not supported
- Wi-Fi
- Optional
- Аудио
- 1 x Audio interface, Realtek ALC662 chip, supports dual channel, stereo, Lineout
- Входно захранване
- 12V 3A DC
- Ток при 12 V
- 1.7A (100% CPU, 12V)
- Работна температура
- From -15°C to +80°C
- Операционна система
- Ubuntu; Windows 10; Windows 7
- Материал на корпуса
- Aluminum Alloy
- Начин на монтаж
- VESA, Desktop
