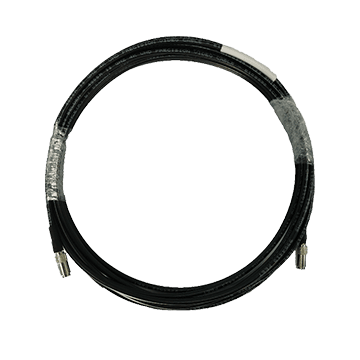

CoaXPress Кабели и аксесоари — DIN 1.0/2.3, 3 m, Static
Model
- Product Model
- MV-ACXP6-DIN-DIN-ST-3m
- Type
- MV-ACXP6-DIN-DIN-ST-3m
Physical specification
- End A connector
- DIN 1.0/2.3
- End B connector
- DIN 1.0/2.3
- Cable diameter
- 4 mm
- Length
- 3 m
- Cable mechanical
- Coaxial
- Jacket
- PVC
- Cable color
- Black
- Connector durability
- 500 cycles
- Min. bending radius
- 60 mm
- Applicable scenario
- Static scenes
Electrical specification
- Max. voltage
- 300 VDC
Additional information
- Working temperature
- -30°C-75°C
- Certification
- UL,CMR
- Packaging
- Individual package
Area Scan камери
MV-CH050-90XM-C-NN
5MP Area Scan Camera, GMAX2505, CXP-6, Mono, C-mount, without fan
MV-CH120-40XM-M58S-NN
12MP Area Scan Camera, CMV12000, CXP-6, Mono, M58-mount, Fanless

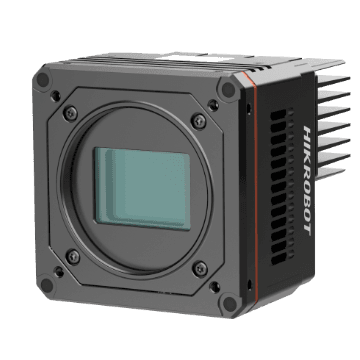

MV-CH650-90YM-M58S-NN
