- Compact design for flexible installation.
- Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.
- Adopts image interpolation algorithm for color cameras to have better color correction.
- Adopts USB3.0 interface to provide power supply and transmit data.
- Compatible with USB3 Vision Protocol, GenlCam standard, and third-party software based on these protocol and standard.

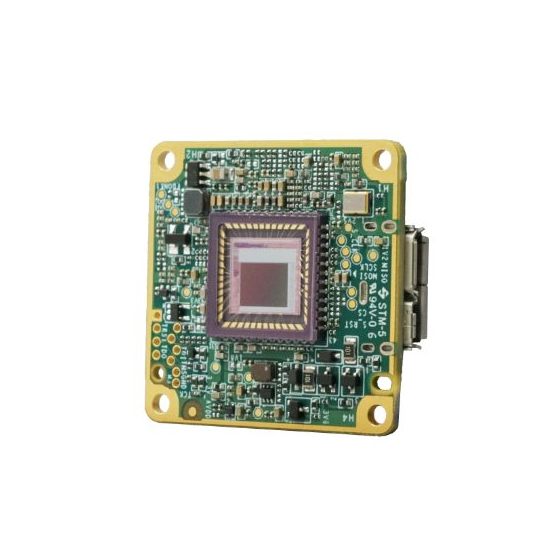

MV-CB013-A0UM-B
HIKROBOT Board Level Camera CB Series
HIKROBOT Board Level Camera CB Series
The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures.
The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.
Product Downloads:
| Model | Product Model | MV-CB013-A0UM-B |
| Type | 1.3MP Board Level Camera, USB3,ISG1307,Mono,Bare Board | |
| Performance | Sensor type | CMOS, global shutter |
| Pixel size | 4.8 μm × 4.8 μm | |
| Sensor size | 1/2" | |
| Resolution | 1280 × 1024 | |
| Max. frame rate | 201 fps @1280 × 1024 | |
| Dynamic range | 53 dB | |
| SNR | 40 dB | |
| Gain | 0 dB to 16 dB | |
| Exposure time | 9 μs to 10 sec | |
| Exposure mode | Off/ Once/ Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10p/12/12p | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) | |
| Power supply | USB3.0 power supply | |
| Power consumption | Typ. 1.6 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | None |

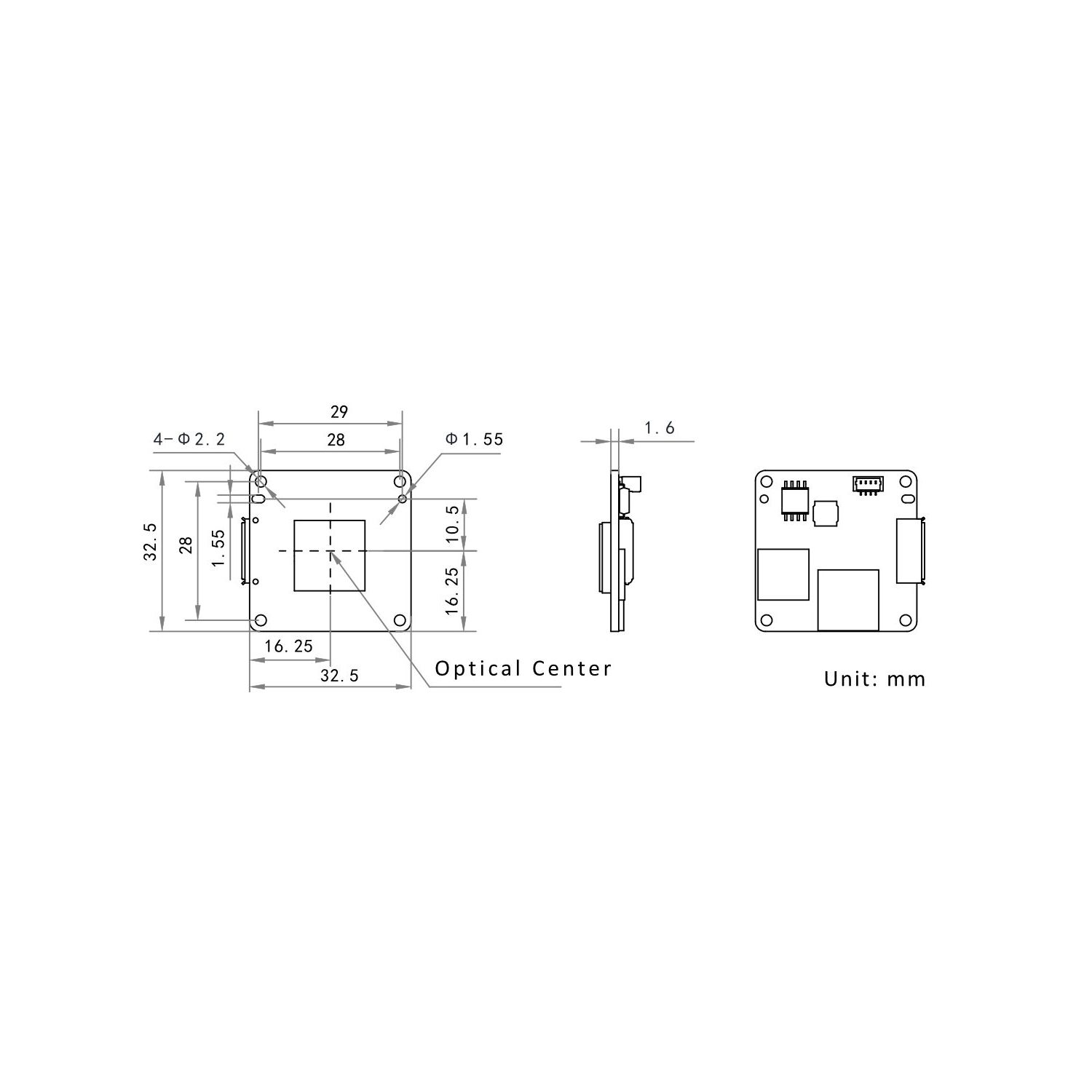

| Dimension | 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") | |
| Weight | Approx. 10 g (0.02 lb.) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software compatible with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS | |
| Compatibility | USB3 Vision, GenICam | |
| Certification | CE, FCC, RoHS, KC |
