- Supports different control modes of light source, including control panel and software.
- Supports using serial port or network interface to set parameters and manage the devic
- Provides multichannel inputs and outputs.
- Supports installation via slide rail or screw hole.
- Supports overcurrent, overload, short circuit protection.

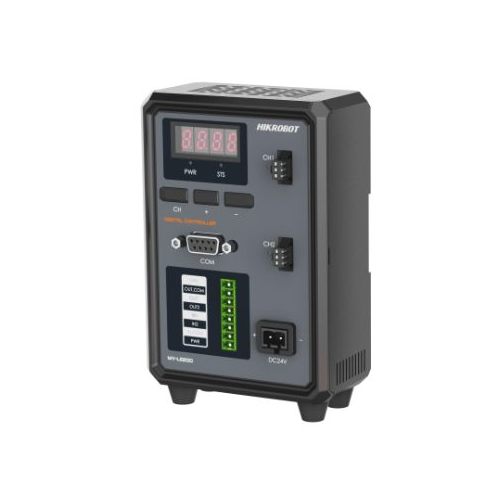

MV-LE200-48W24-2D
HIKROBOT Light Controller, Digital controller, constant current, Input: 24VDC, Output: 10W/5VDC, Channels: 2, DB9F
HIKROBOT Light Controller, Digital controller, constant current, Input: 24VDC, Output: 10W/5VDC, Channels: 2, DB9F
Hikrobot MV-LE series light controllers cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series by now with brand new family style design, stable and reliable performance, compatible with all light source product series.
The analog series support knob stepless dimming, helping users to achieve rapid deployment; The digital series support precise button dimming, can also flexibly configure parameters through the communication interfaces; Support Always-On & Trigger mode; Equipped with unique “Timer” linkage function, can flexibly realize multi-optical signal synchronization linkage.
Support various parameter configuration methods: panel/serial port/network port Provide demo tools (no installation needed), no need for users to query the controller communication protocol; Support MVS/SDK integration, highly match the development habits of industrial cameras, can reduce the complexity of secondary development.
Product Downloads:
| Model | Product Model | MV-LE200-48W24-2D |
| Type | Digital Light Controller，2 channel，48W/24V | |
| Performance | Drive mode | Digital, constant voltage |
| Lighting mode | Continued, trigger | |
| PWM frequency | 125 kHz | |
| Flash output | Not supported | |
| Channel | 2-channel | |
| Dimming mode | Control panel (via pressing button), software (serial port) | |
| Brightness level | 0 to 255 | |
| Lighting response time | < 10 μs | |
| Trigger mode | External trigger and internal trigger | |
| Communication protocol | Serial | |
| Applicable product | Ring lighting, bar lighting, flat lighting, coaxial lighting, etc. | |
| Electrical feature | Input voltage | 24 VDC |
| Input current | 2.5 A | |
| Output voltage | 24 VDC | |
| Output current | Max. 2A | |
| Output power | Max. 48 W | |
| Output current for each channel | Max. 2A | |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC | |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC | |
| Mechanical | Power supply interface | 5.08 mm × 2 terminal block |
| Console interface | DB9F serial port | |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 | |
| Lighting output connector | SMR-03V-BC | |

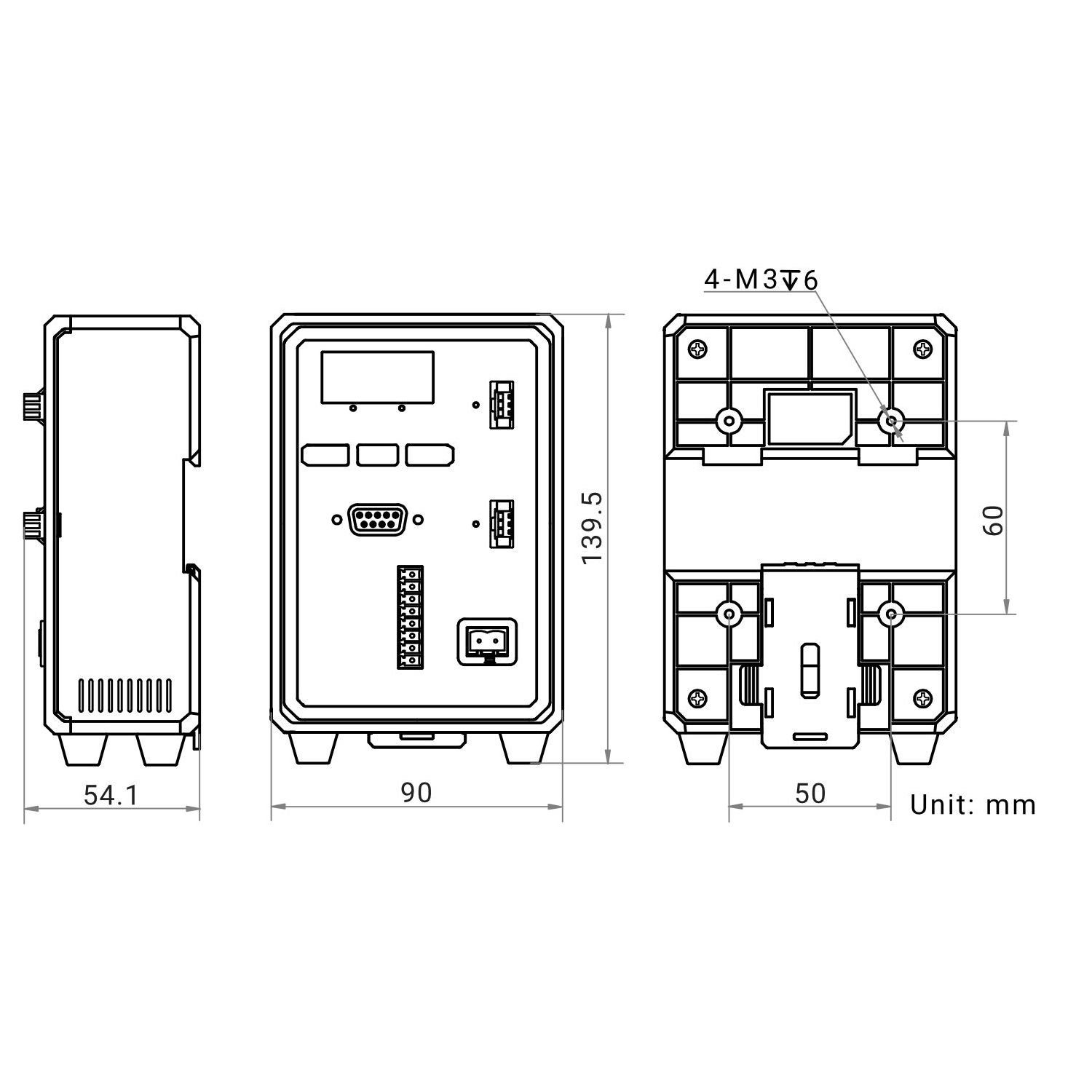

| Dimension | 90 mm × 54.1 mm × 139.5 mm (3.5" × 2.1" × 5.5") | |
| Shell material | Plastic | |
| Weight | Approx. 188 g (0.4 lb.) | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) | |
| Humidity | 20% to 85% RH, non-condensing | |
| Ingress protection | IP30 | |
| Cooling mode | Natural cooling | |
| General | Certification | CE, KC |
