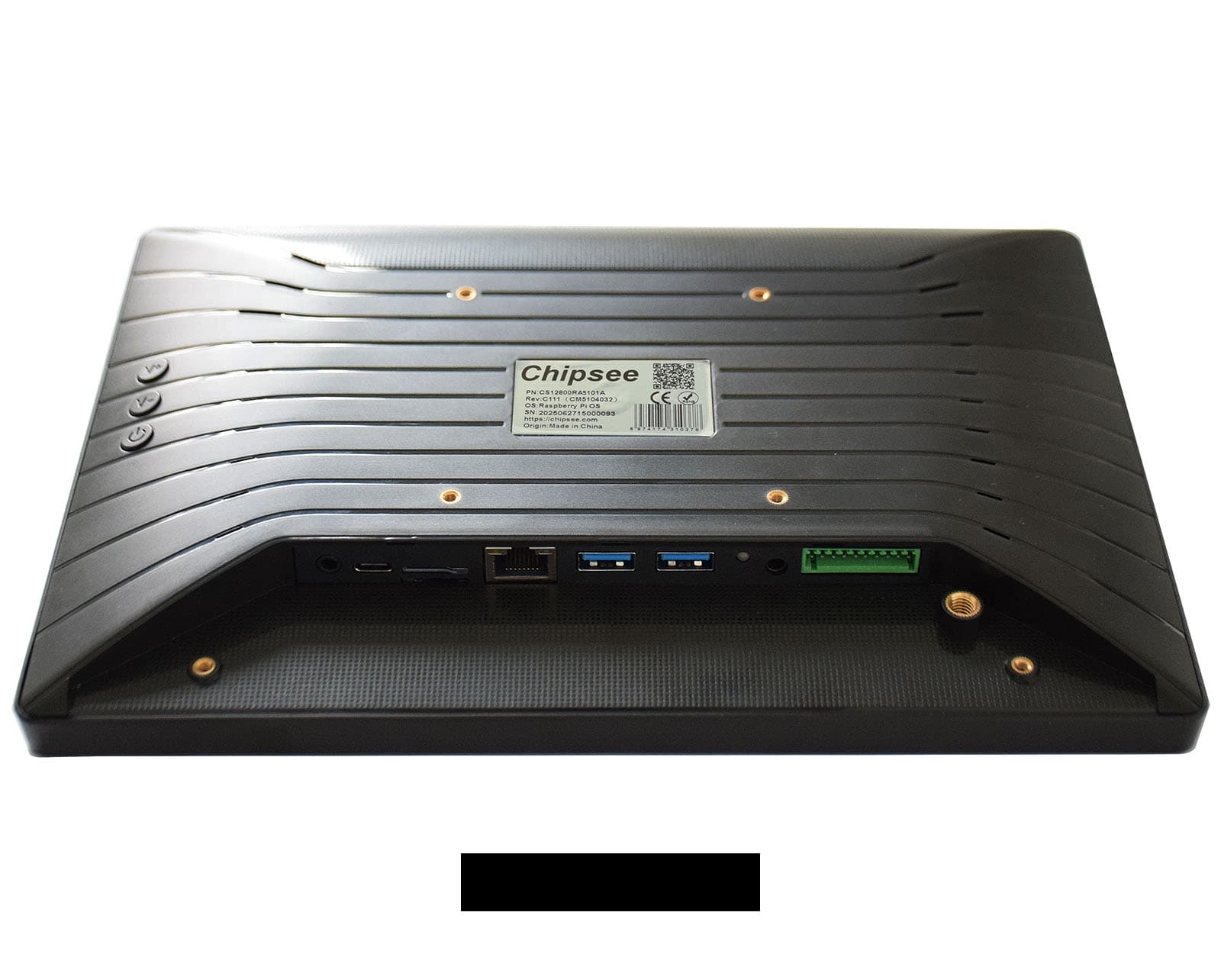

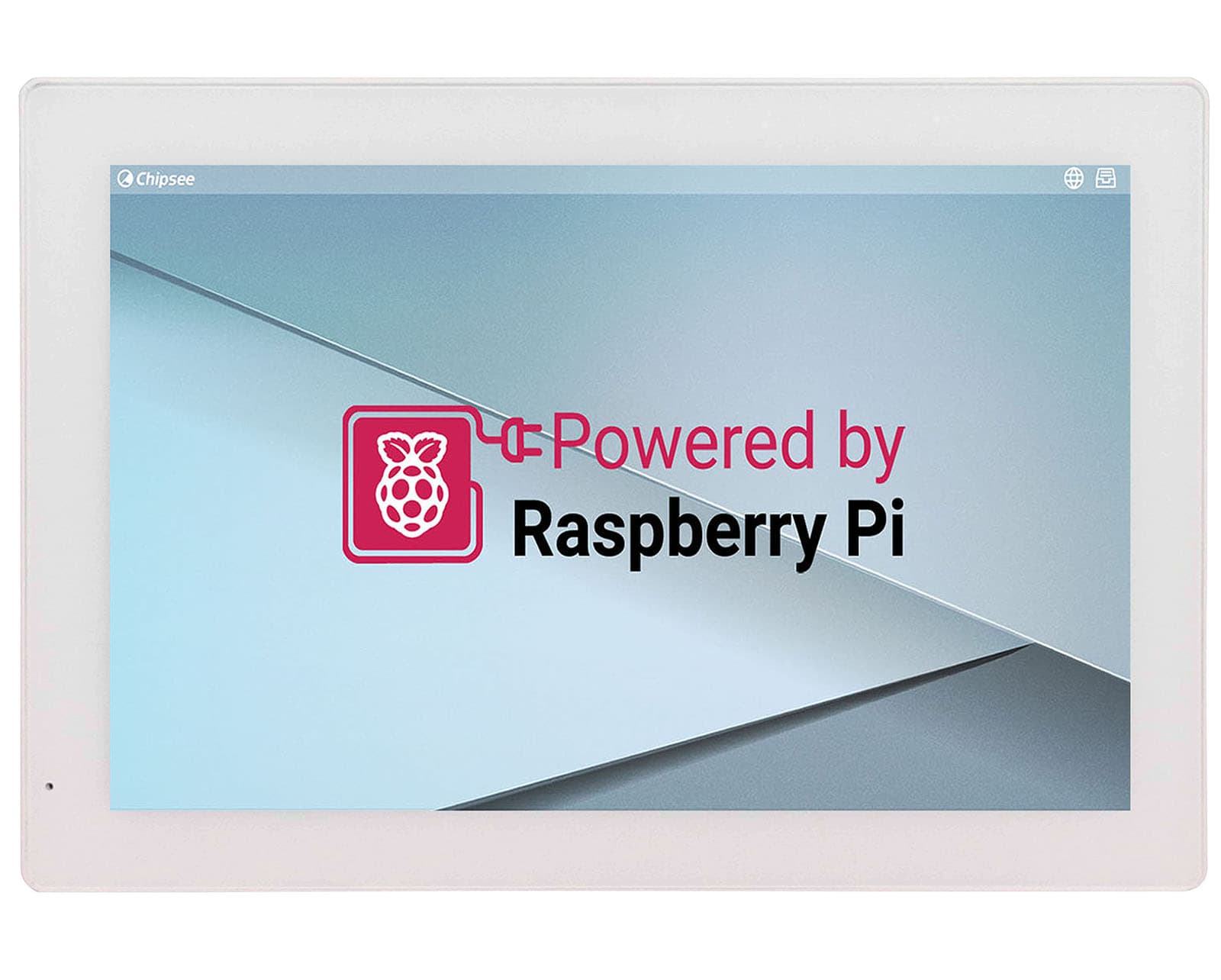

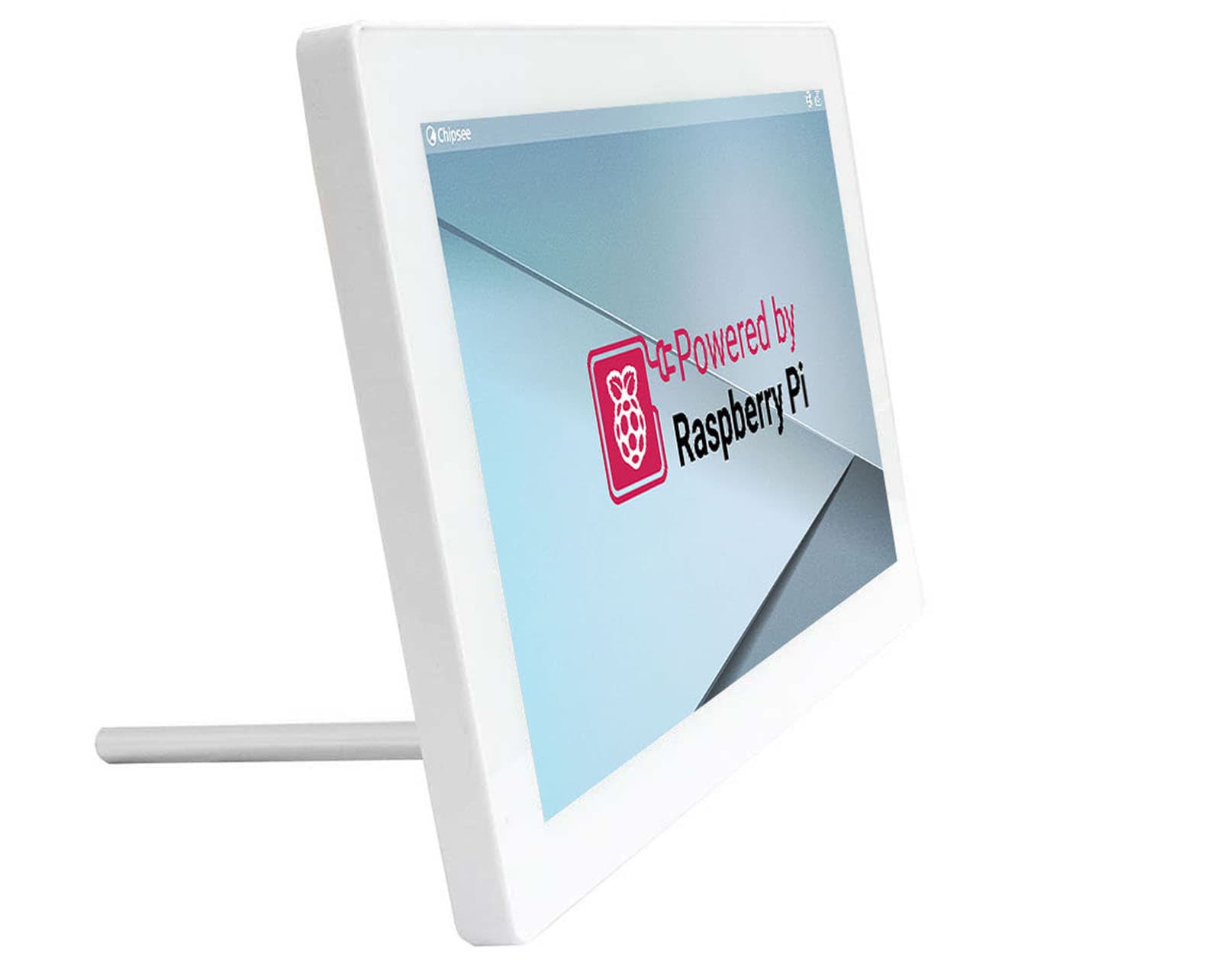

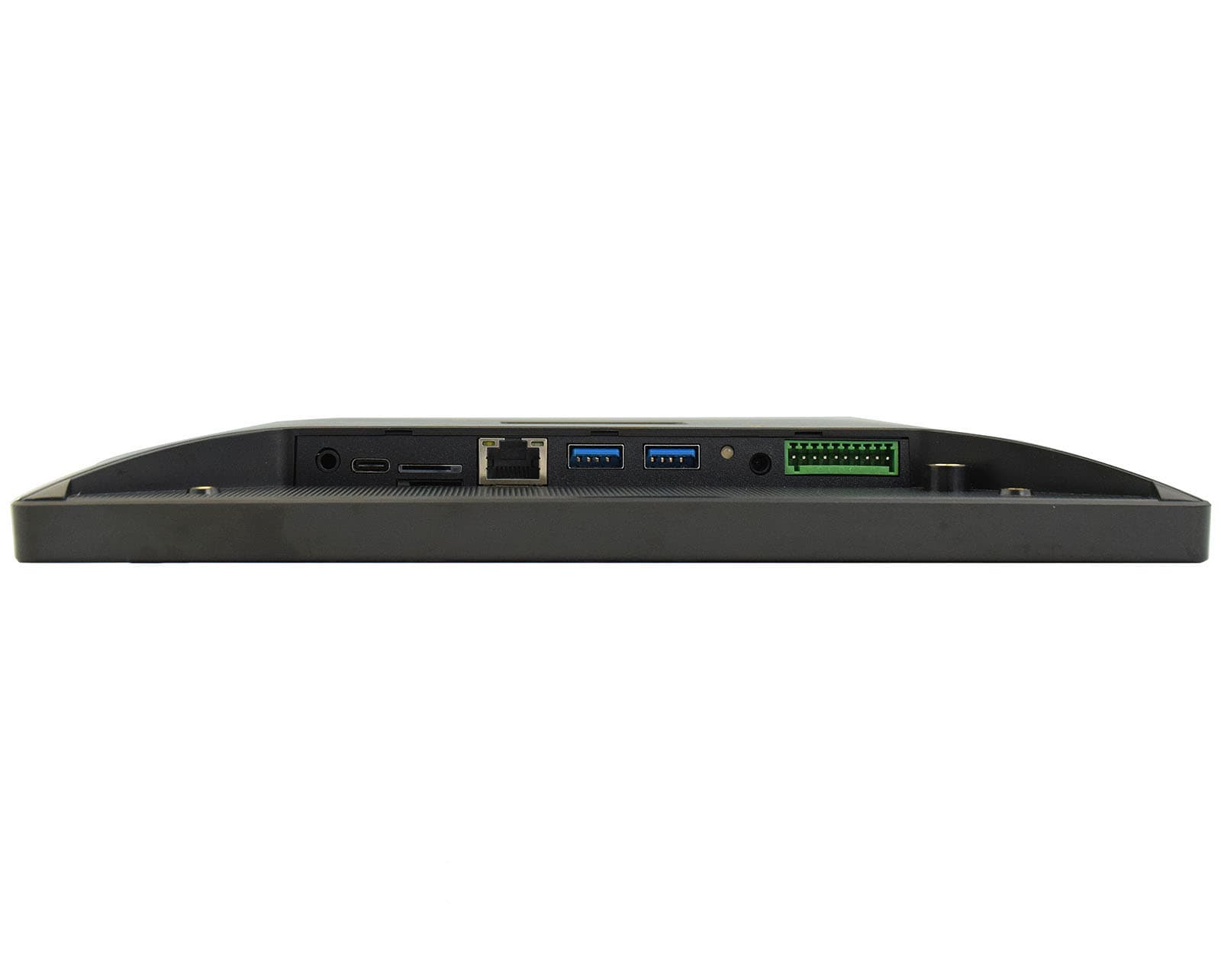

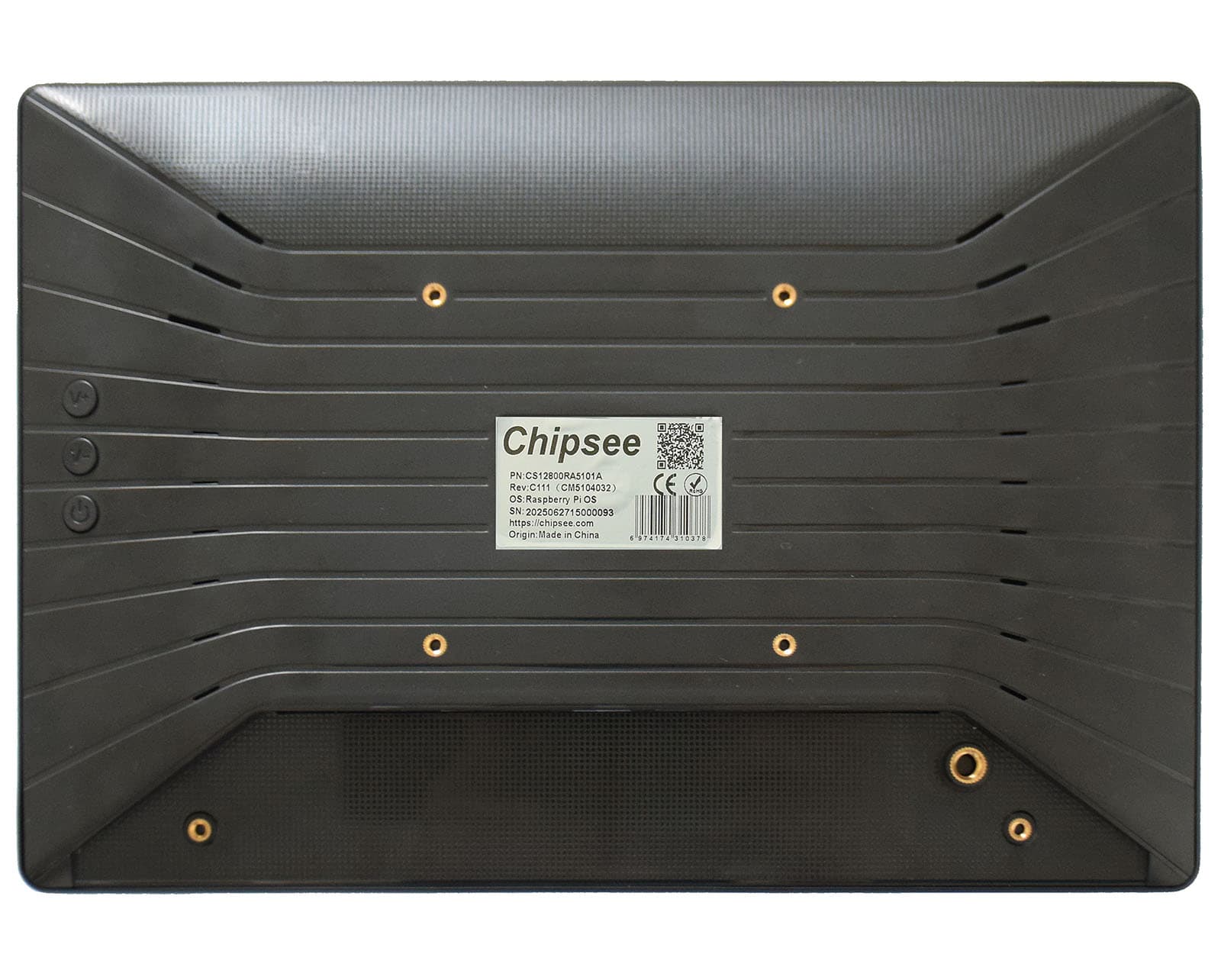

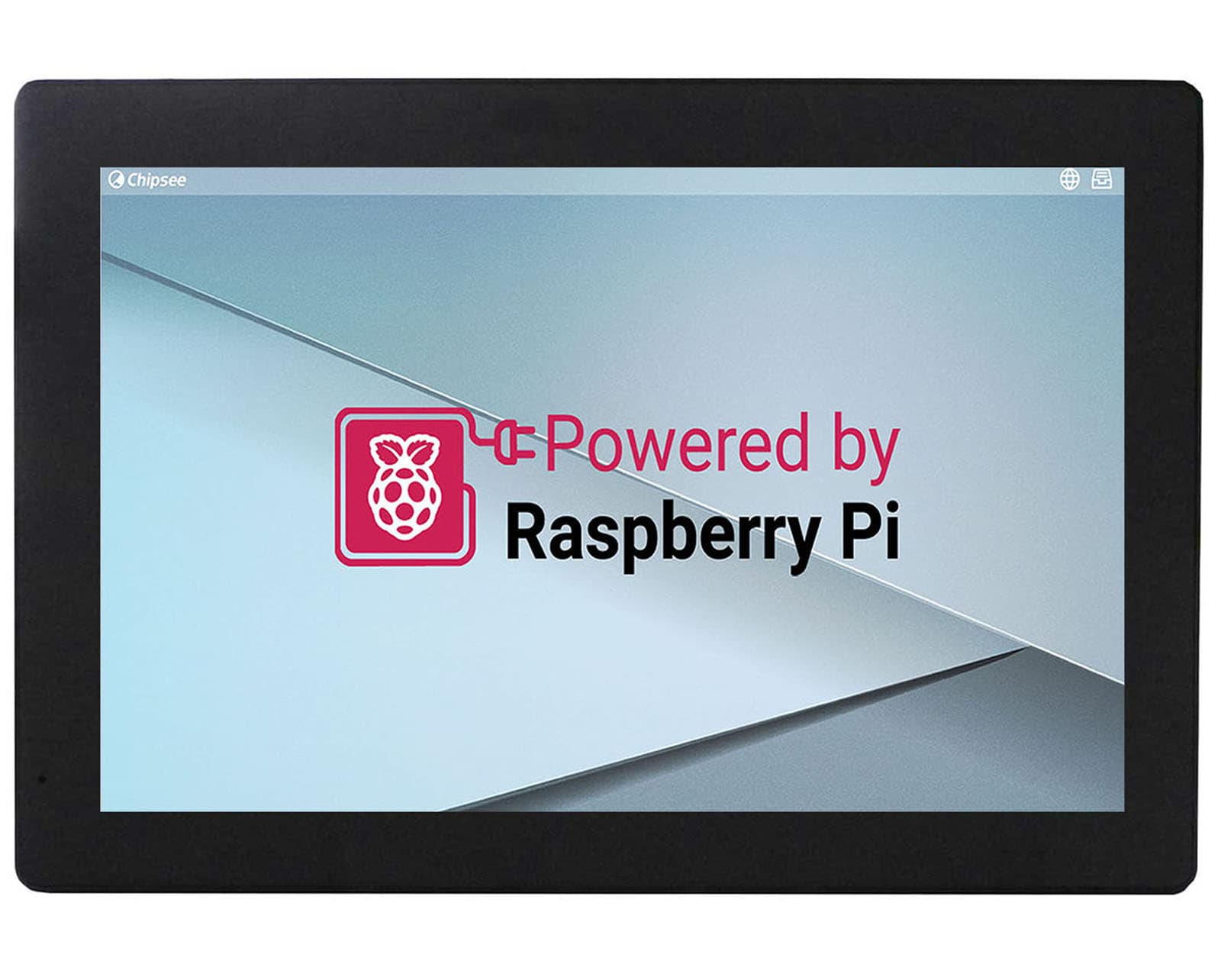

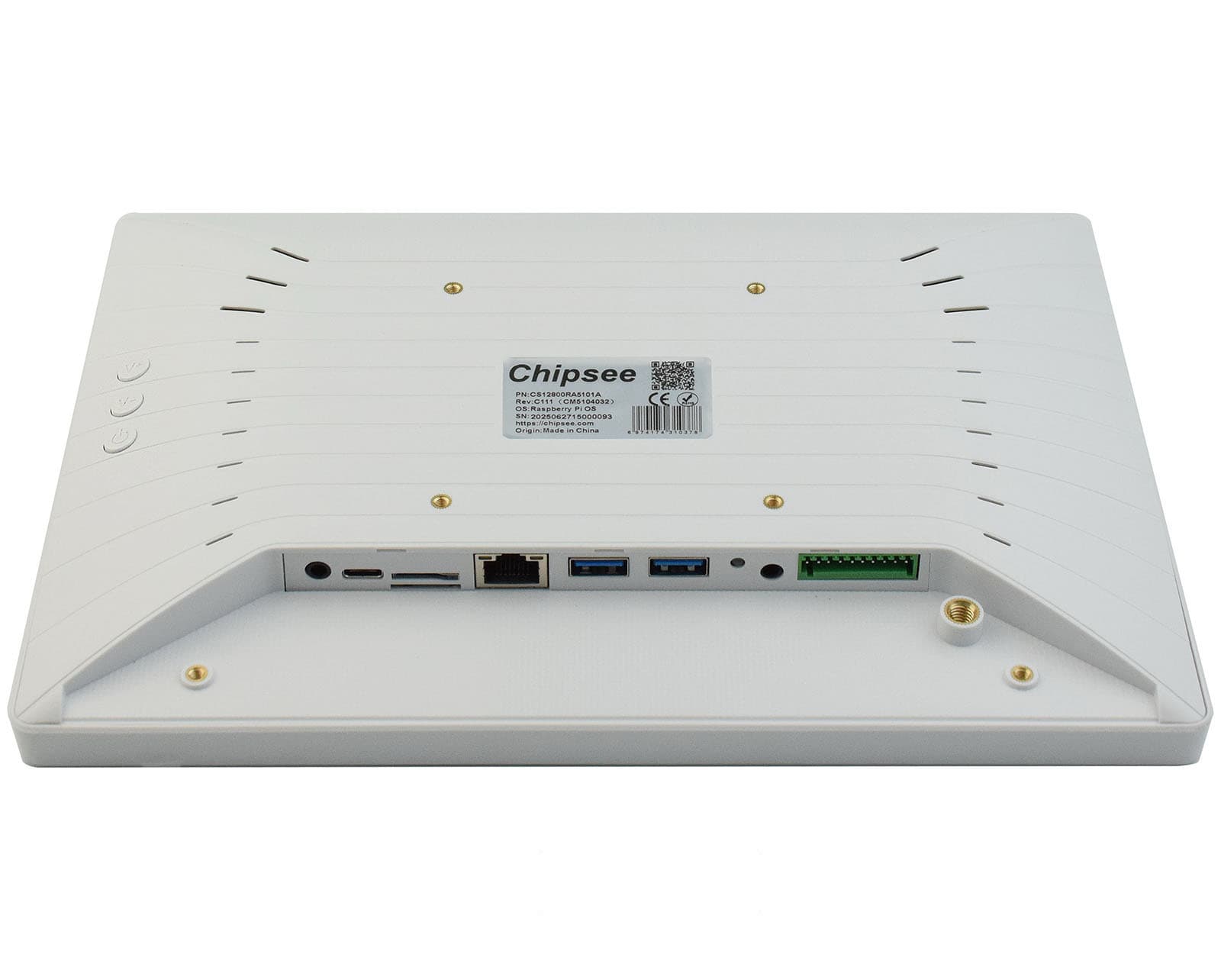

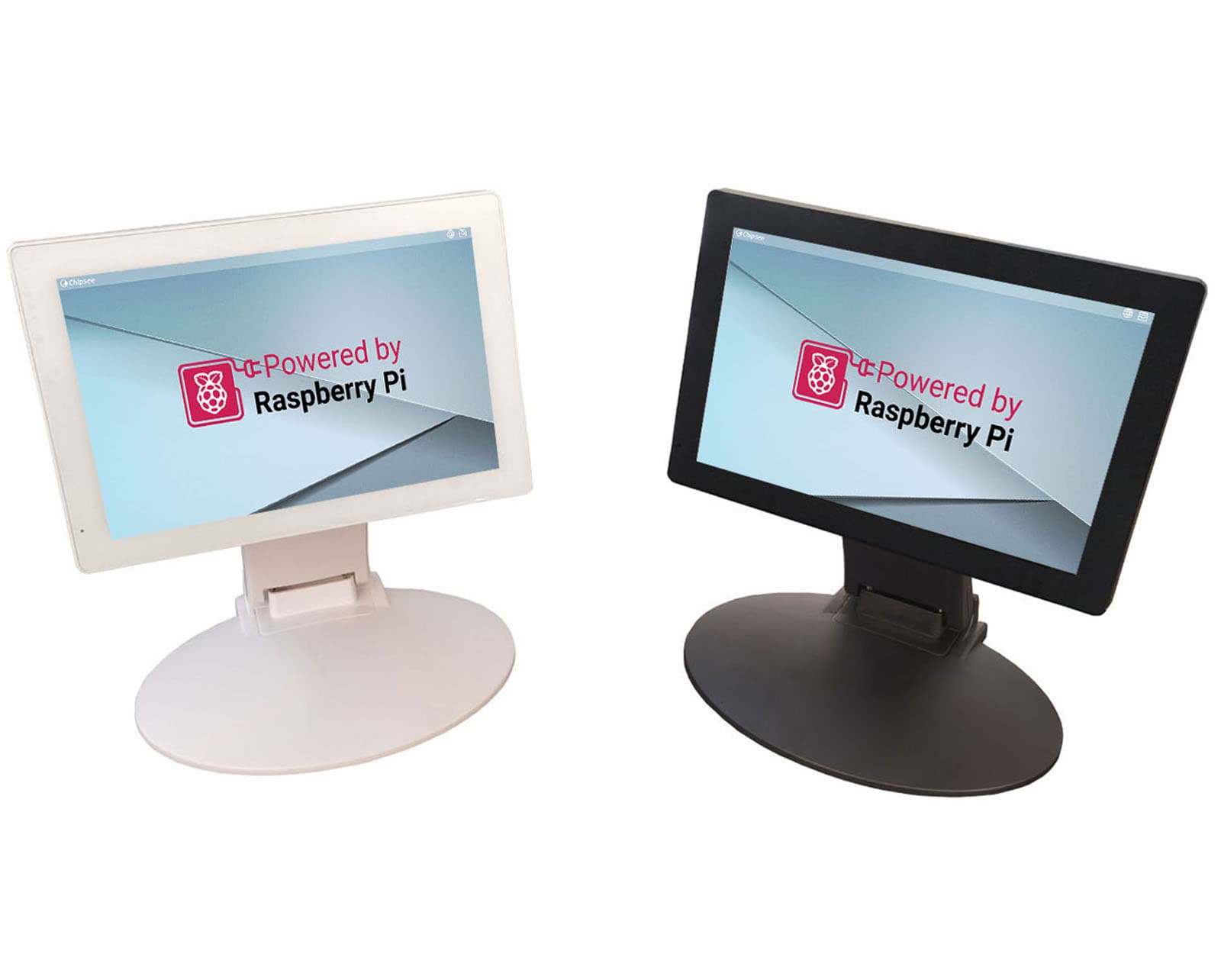

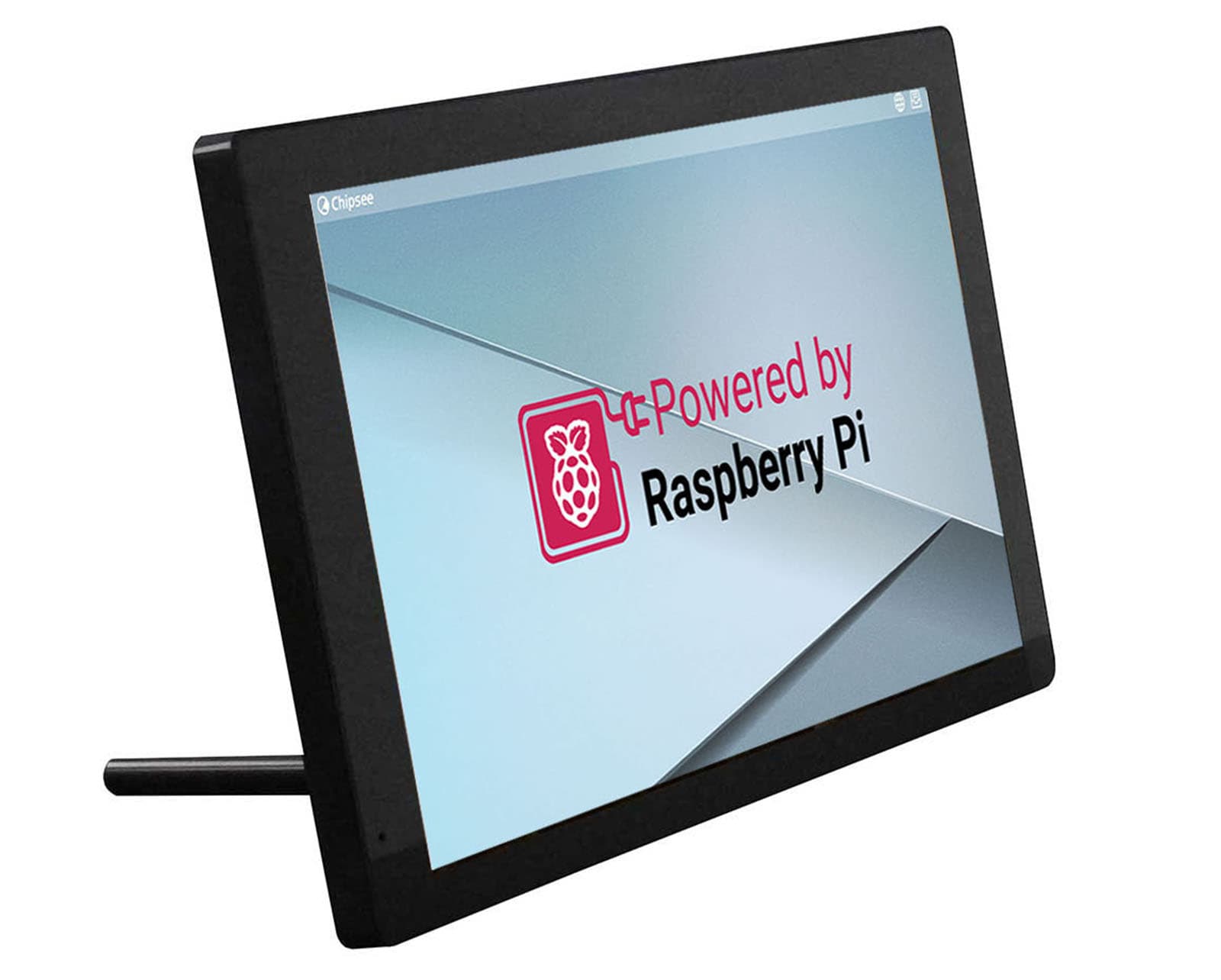

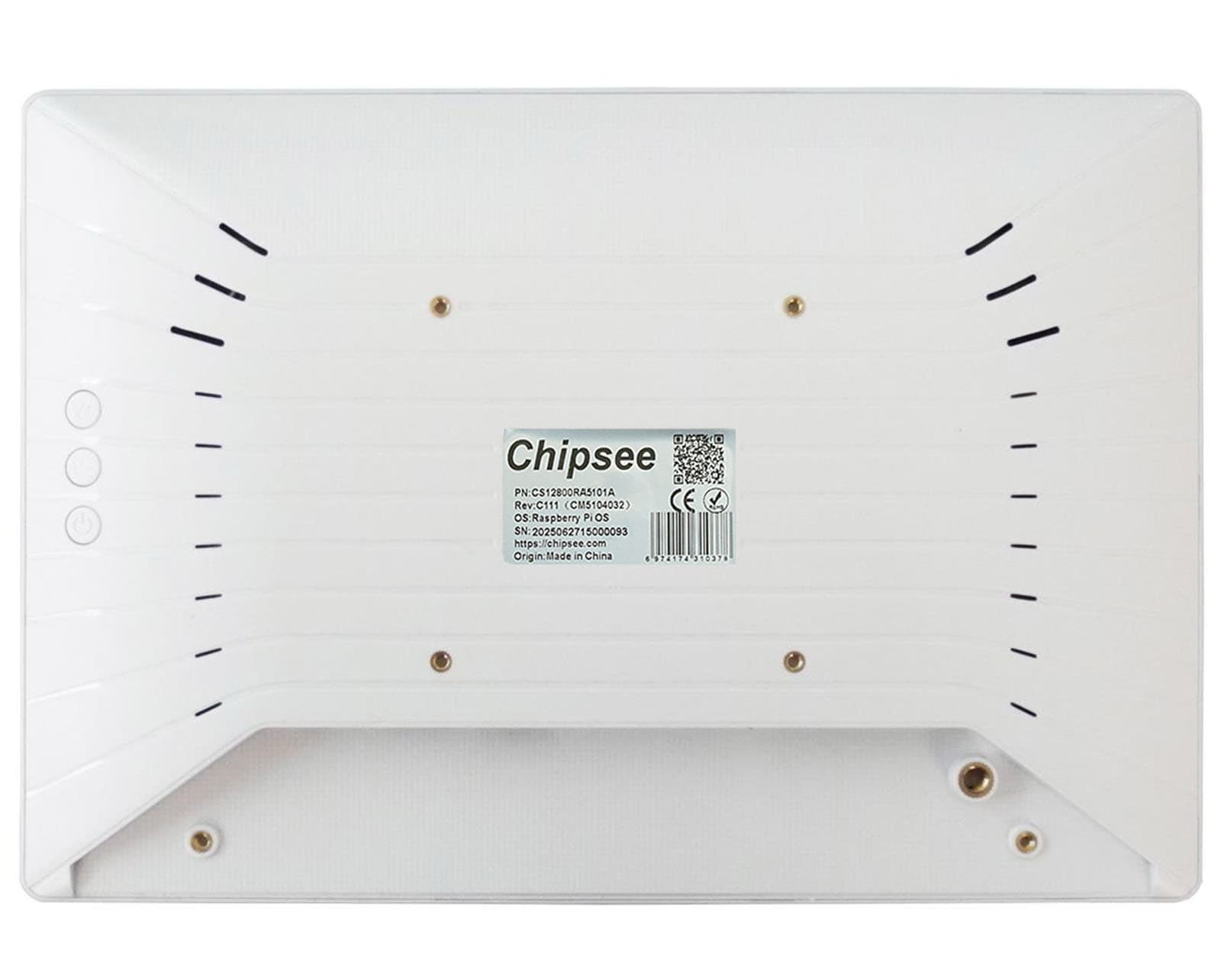

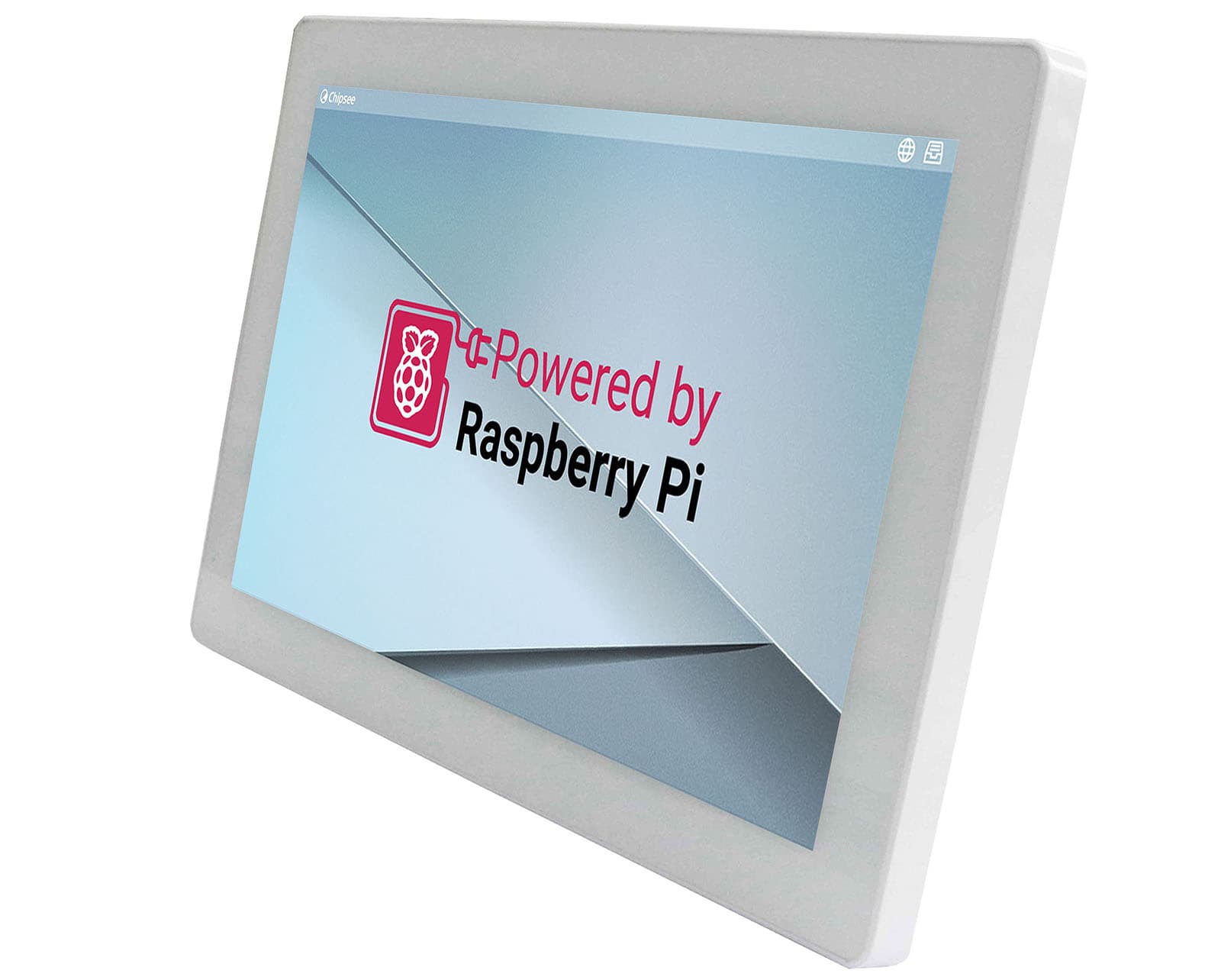

10.1" Панелни компютри и HMI — ARM: Raspberry Pi CM5, Based on CM5, Raspberry Pi OS, 1280 × 800
Спецификации
- SKU
- CS12800RA5101A
- Нетно тегло
- 620 g
- Форм-фактор
- All-In-One
- Процесор
- ARM: Raspberry Pi CM5
- Тактова честота на процесора
- Quad(4) Core Cortex-A76 at 2.4GHz
- Оперативна памет
- Based on CM5
- Вградена памет (eMMC)
- Based on CM5
- Постоянна памет
- Internal M.2 NVMe connector for SSD card (optional)
- Диагонал на екрана
- 10.1"
- Разделителна способност
- 1280*800
- Яркост
- 400 NIT
- Сензорен екран
- Capacitive
- PCIe
- M.2 2230/2242 M-key, PCIe Gen 2.0 x 1(5Gbps) (PCIe Gen 3.0 x1 is compatible but experimental)(Optional)

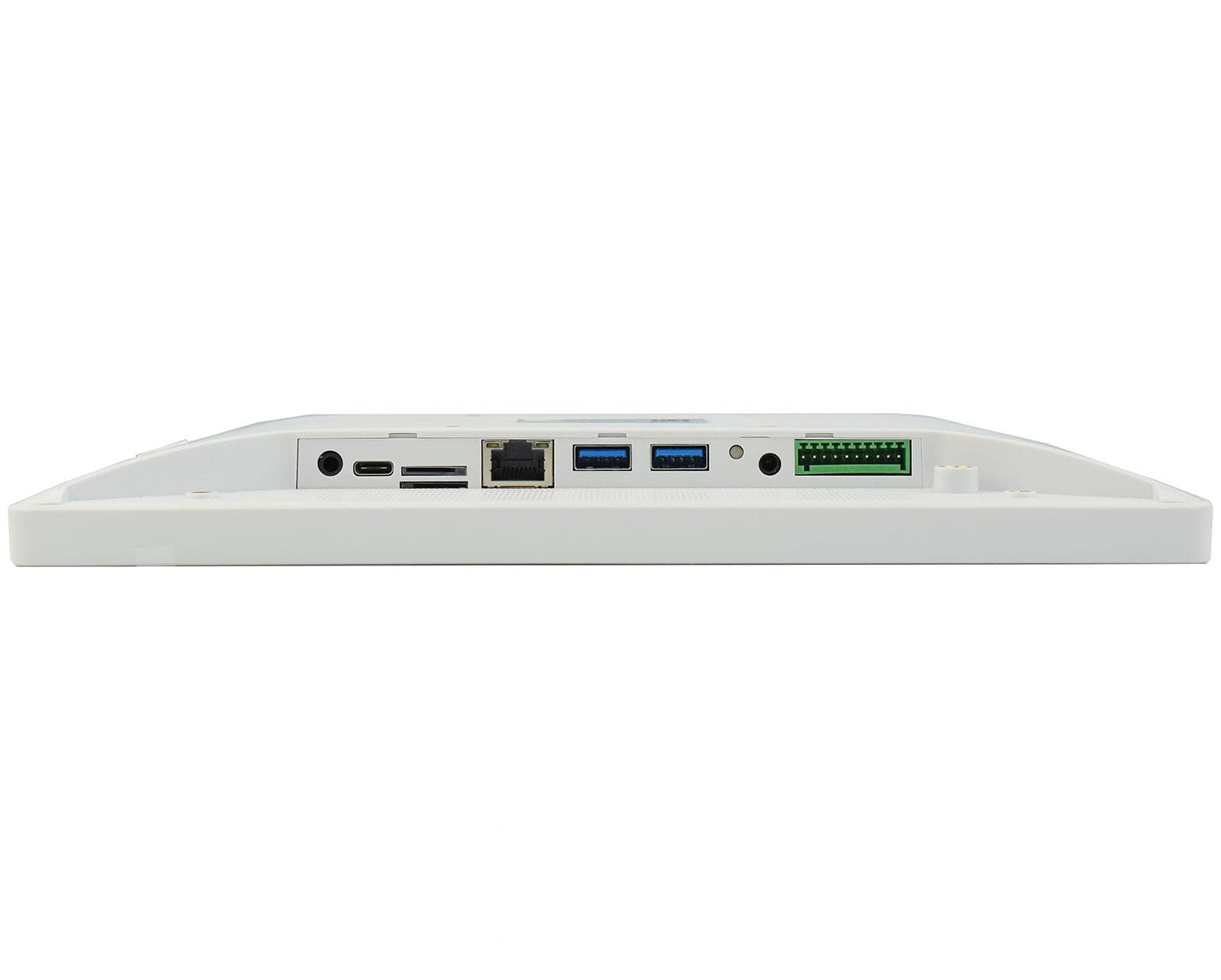

- USB
- 1 x USB Type-C OTG; 2 x USB 3.0 type-A Host
- CAN
- 0 x CAN by default; 1 x CAN FD BUS is optional. Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps.
- GPIO
- Optional
- HDMI
- Not supported
- RS232
- 2 x RS232
- RS485
- 1 x RS485 by default; up to 2 x RS485 (optional)
- Ethernet
- 1 x Giga LAN
- Wi-Fi / Bluetooth
- Depends on CM5
- 4G
- Optional
- Аудио
- 3.5mm Audio Out Connector; Internal 2W Speaker
- Зумер
- Onboard, driven by GPIO
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Входно захранване
- 15-30V DC
- Консумация
- 12W max; 7.5W typical
- Работна температура
- -20°C ~ 70°C.
- Операционна система
- Raspberry Pi OS
- Реле
- 1 x relay with “Normally Connected” and “Normally Open” output
- microSD слот
- 1 x TF(micro SD) card slot, only for CM5 Lite module to boot from TF
- Модул Raspberry Pi CM5
- CM5102016 ($113): WiFi+2GB DDR+16GB eMMC; CM5104032 ($156): WiFi+4GB DDR+32GB; CM5108032 ($233): WiFi+8GB DDR+32GB
