10.1" Панелни компютри и HMI — Espressif ESP32-P4, 768 KB HP L2MEM + 32 KB LP SRAM + 8 KB SPM; 32MB in-package PSRAM, 1280 × 800
Спецификации
- SKU
- CS12800-ESP32P4-101A
- Форм-фактор
- All-In-One
- Процесор
- Espressif ESP32-P4
- Постоянна памет
- 32MB external SPI Flash
- Оперативна памет
- 768 KB HP L2MEM + 32 KB LP SRAM + 8 KB SPM; 32MB in-package PSRAM
- Диагонал на екрана
- 10.1"
- Разделителна способност
- 1280*800
- Яркост
- 400 cd/m2
- Сензорен екран
- Capacitive
- LAN
- 1 x 100Mbps LAN
- Wi-Fi / Bluetooth
- Optional
- 4G
- Optional
- Аудио
- 3.5mm audio out interface; internal dual channel speaker; front microphone
- Зумер
- YES
- Реле
- 1 x relay with “Normally Connected” and “Normally Open” output
- RS232
- 2 x RS232 can be configured to RS485 (optional); 2 x RS232 can be configured to 4 x GPIO (optional)
- RS485
- 1 x RS485 by default; optionally up to 2 x RS485 by configuring RS232_2 as RS485;; 1 x RS485 can be configured to 2 x GPIO (optional); 120Ohm terminal resistor is not installed by default. if you need one, please add a note when placing your order.
- CAN
- 1 x CAN by default; 1 x CAN can by configured to 1 x relay (optional).; 120Ohm terminal resistor is not installed by default. If you need one, please add a note when placing your order.; CAN 2.0 (classic CAN, no CAN FD), up to 1Mbps.
- GPIO
- 0 x GPIO by default; 8 x GPIO (optional, by configuring 2 x RS232, 1 x RS485 and 1 x CAN as 8 x GPIO)
- USB
- 1 × USB 1.1 Type-C port for firmware flashing and debugging;; 2 x USB 2.0 Type-A high-speed host ports;; Type-C port supports powering the device while programming
- microSD слот
- 1 x TF(micro SD) card slot
- RTC
- High-accuracy RTC with supercapacitor, can work 1 week after power off (default).
- Входно захранване
- 9-32V DC
- Ток при 15 V
- 200mA typical
- Консумация
- 4W max, 3W typical
- Работна температура
- -20°C ~ 70°C.
- Тегло (g)
- 620g

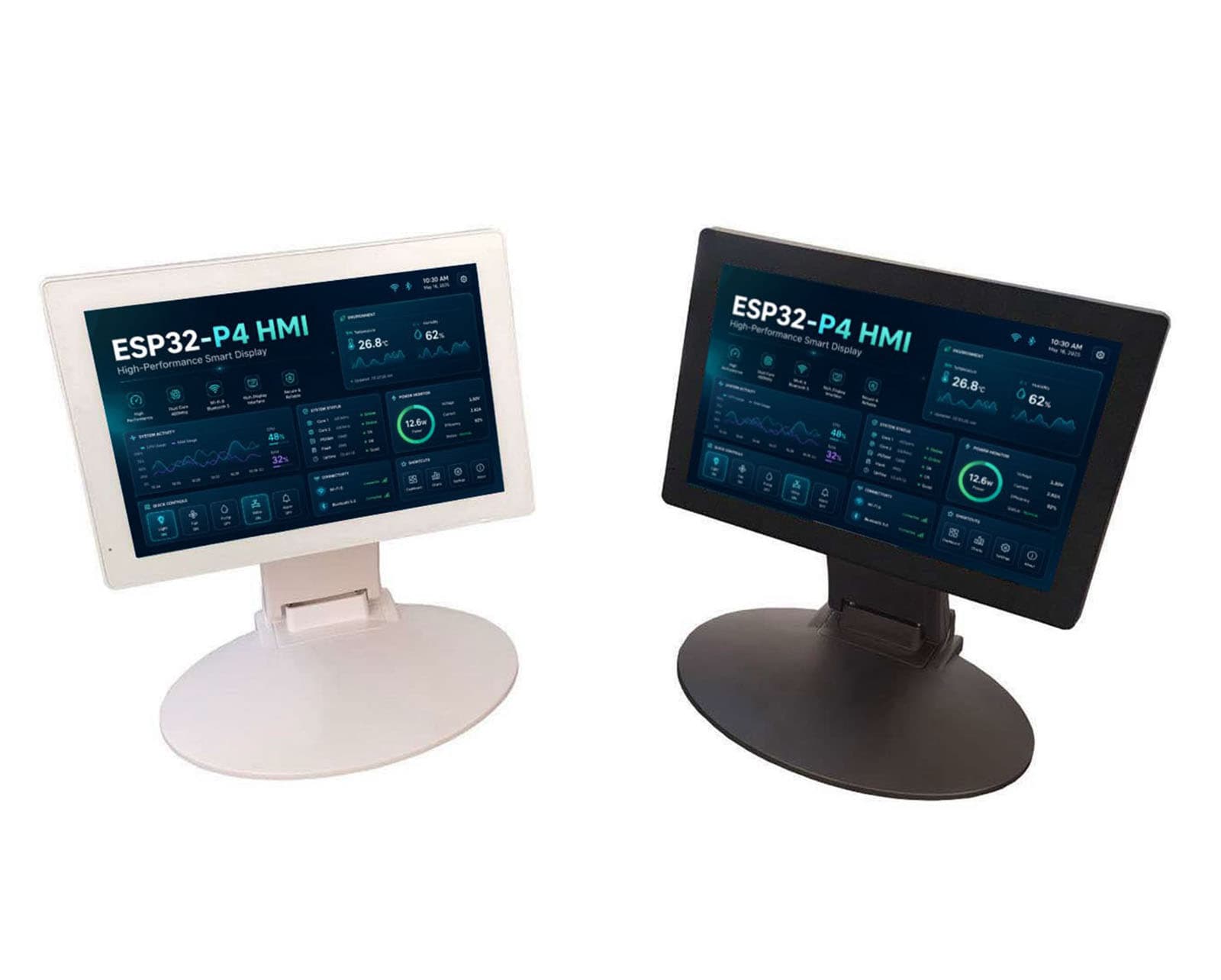

- Начин на монтаж
- Stand; VESA
- Цвят на корпуса
- Black I White
- Сертифициране
- CE; ROHS
