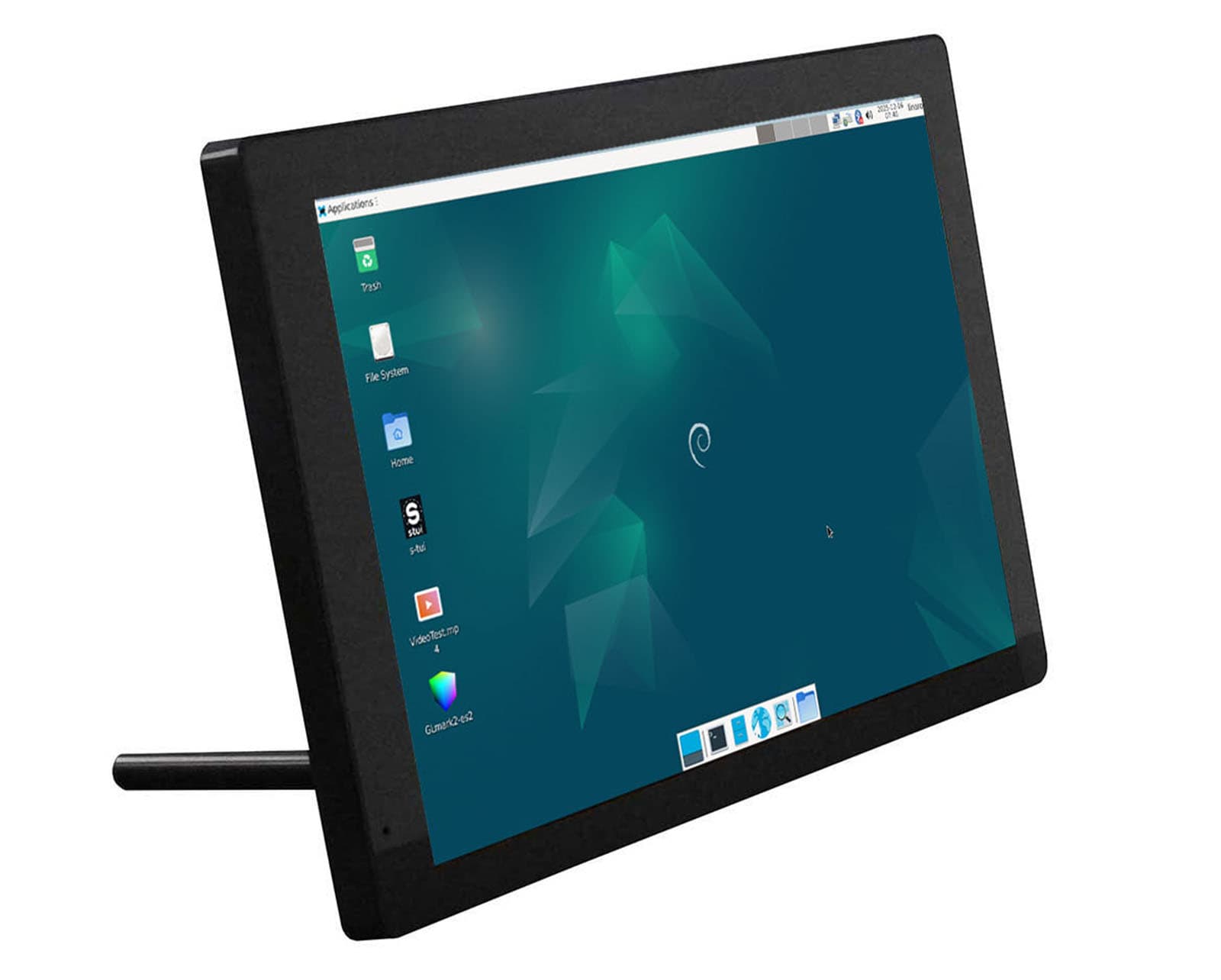

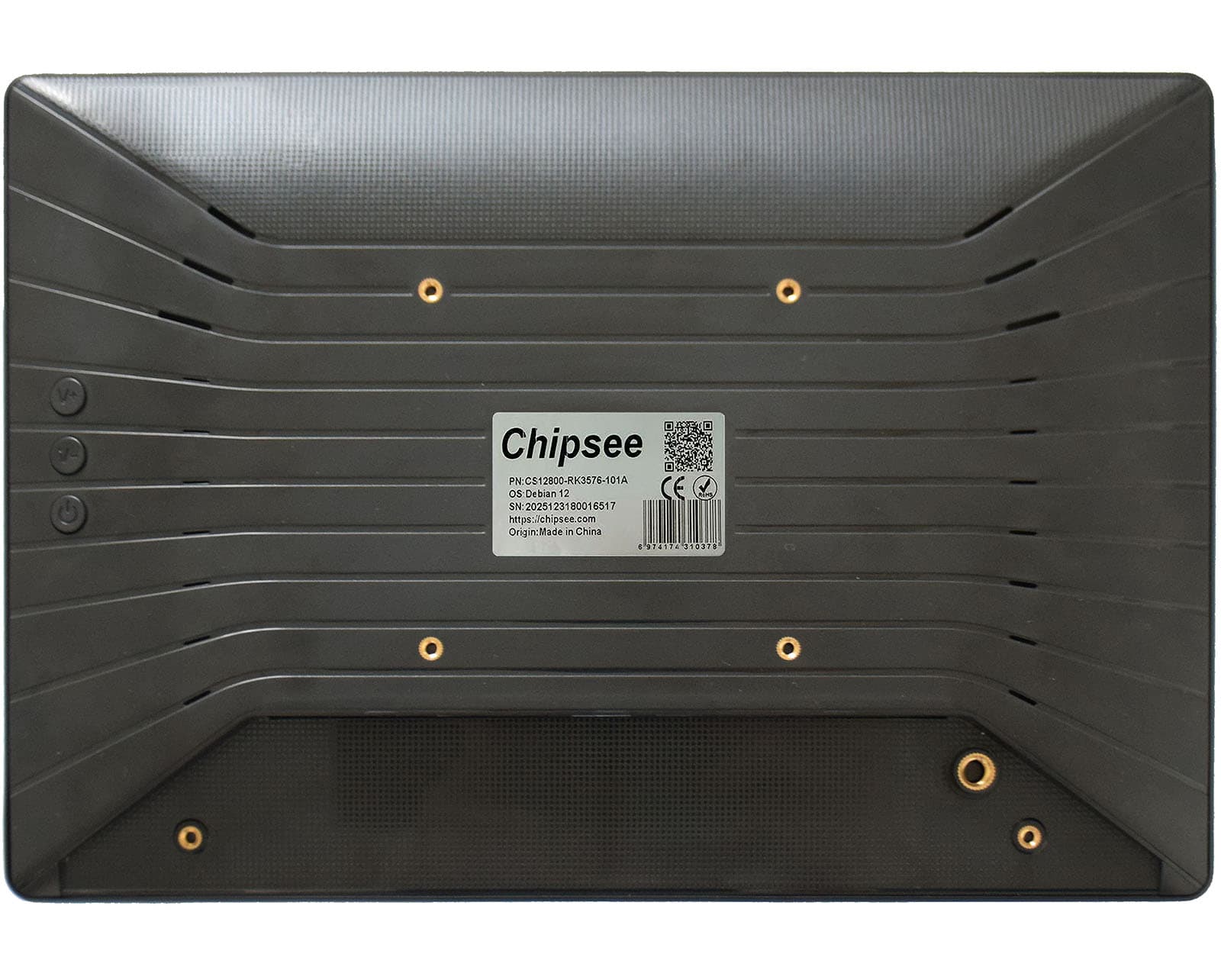

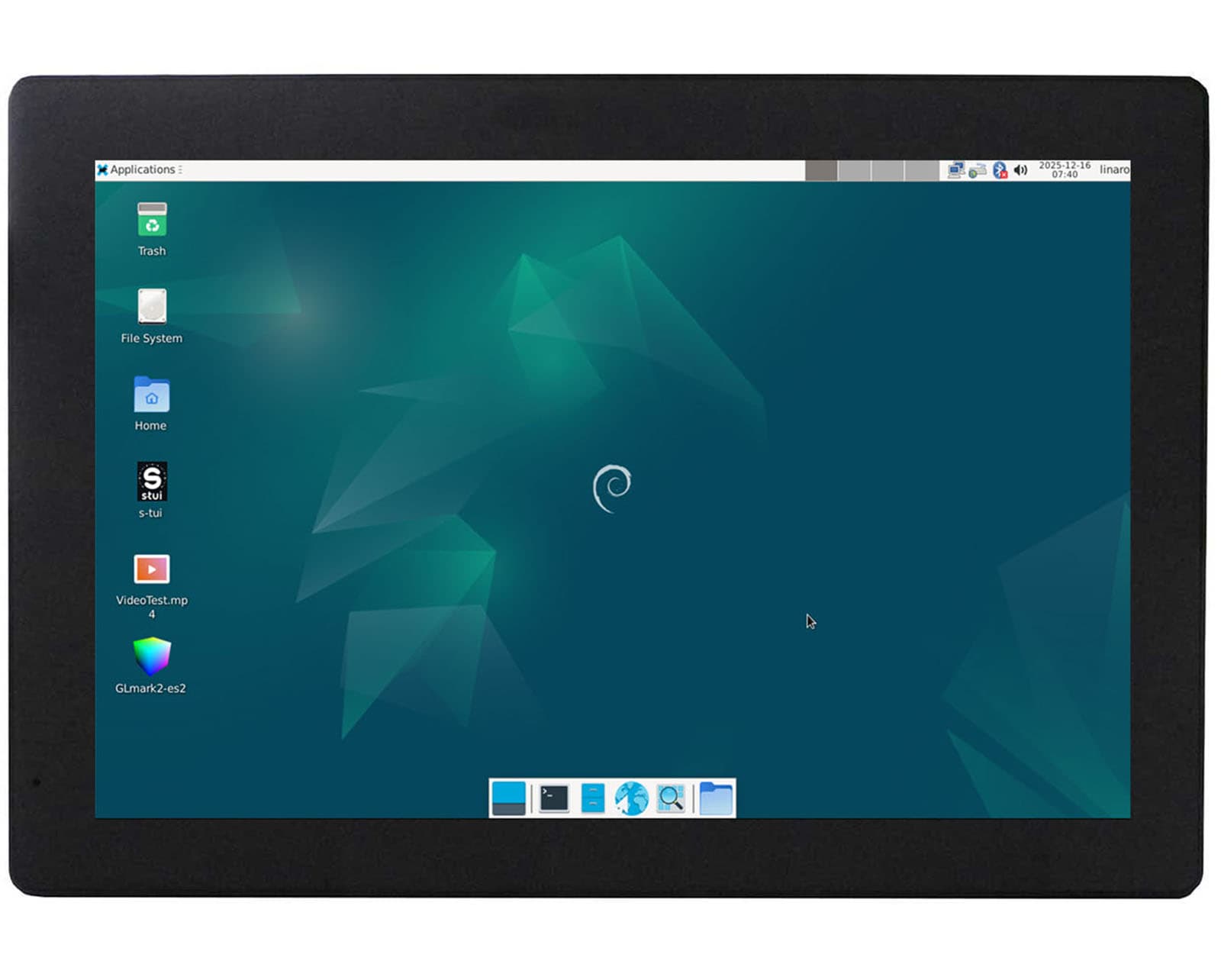

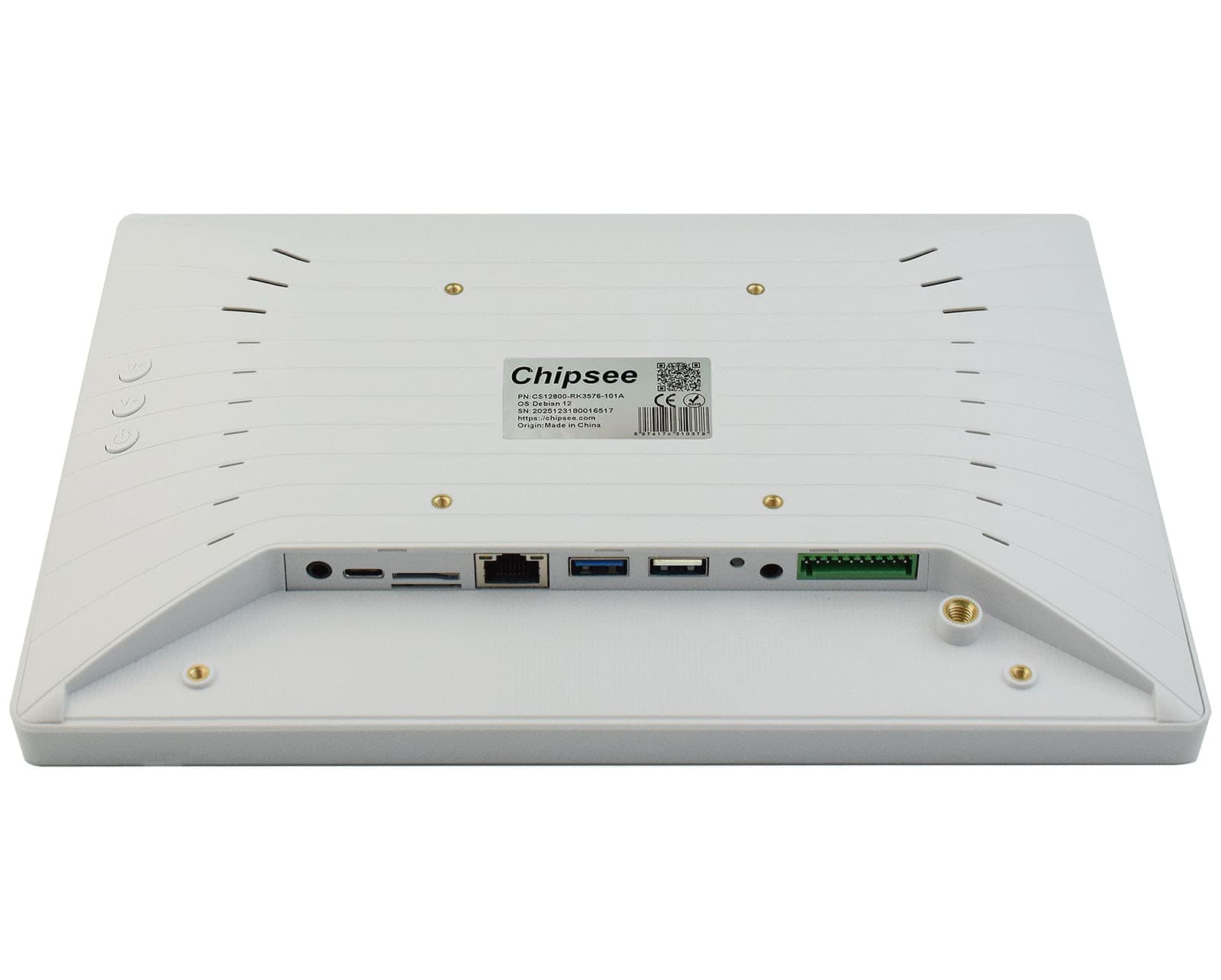

AIO-RK3576-101

Спецификации

SKU

CS12800-RK3576-101A

Нетно тегло

620 g

Форм-фактор

All-In-One

Процесор

ARM: Rockchip RK3576

Тактова честота на процесора

Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)

M.2

M.2 2230/2242 M-key, PCIe Gen 3.0 x1 (optional)

NPU ускорител

6 TOPS(Sparsity)@INT8

Графичен процесор

ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding

Оперативна памет

4GB LPDDR5

Вградена памет (eMMC)

64GB

Постоянна памет

Internal M.2 NVMe connector for SSD card (optional); MicroSD Card

microSD слот

1 x TF(micro SD) card slot

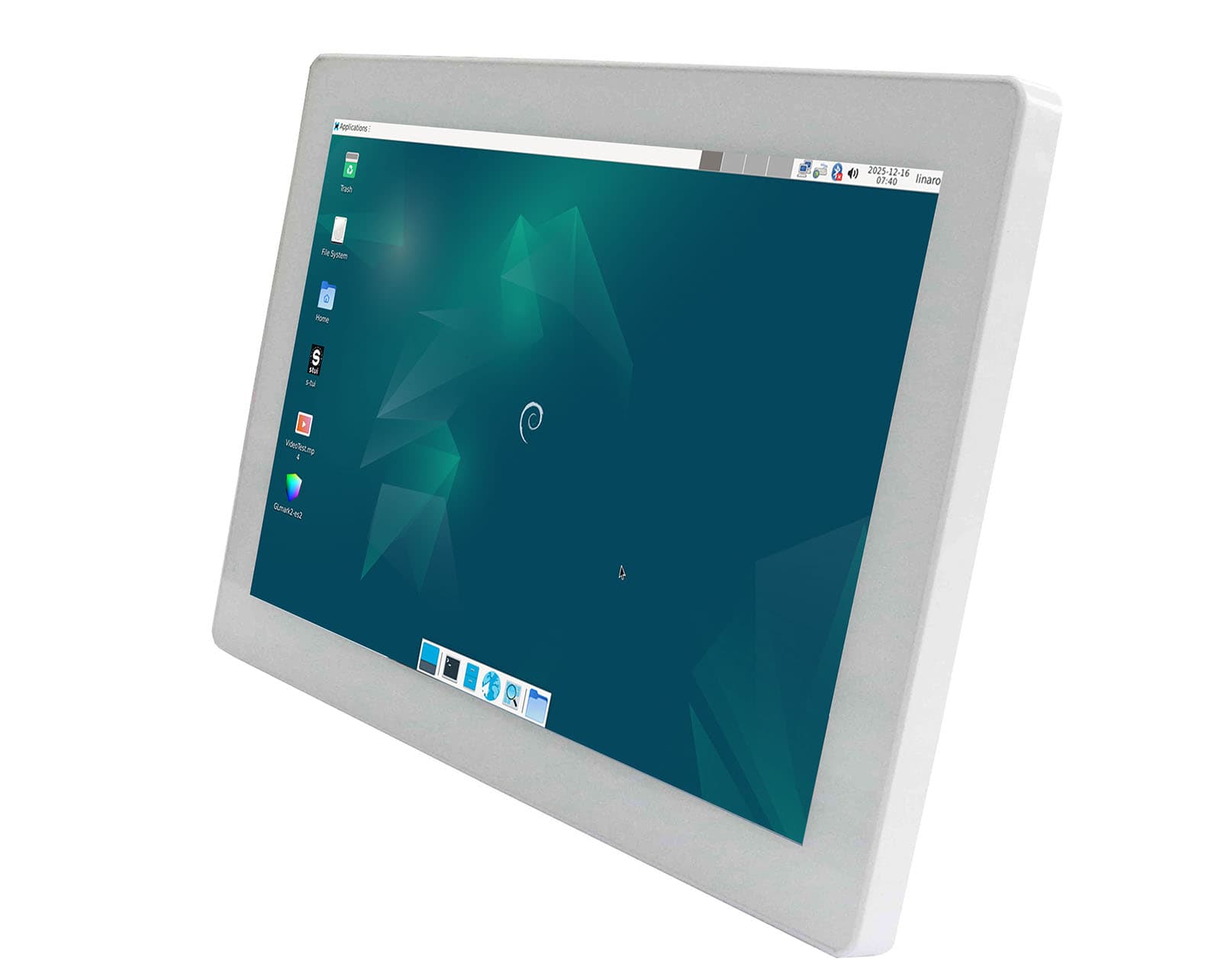

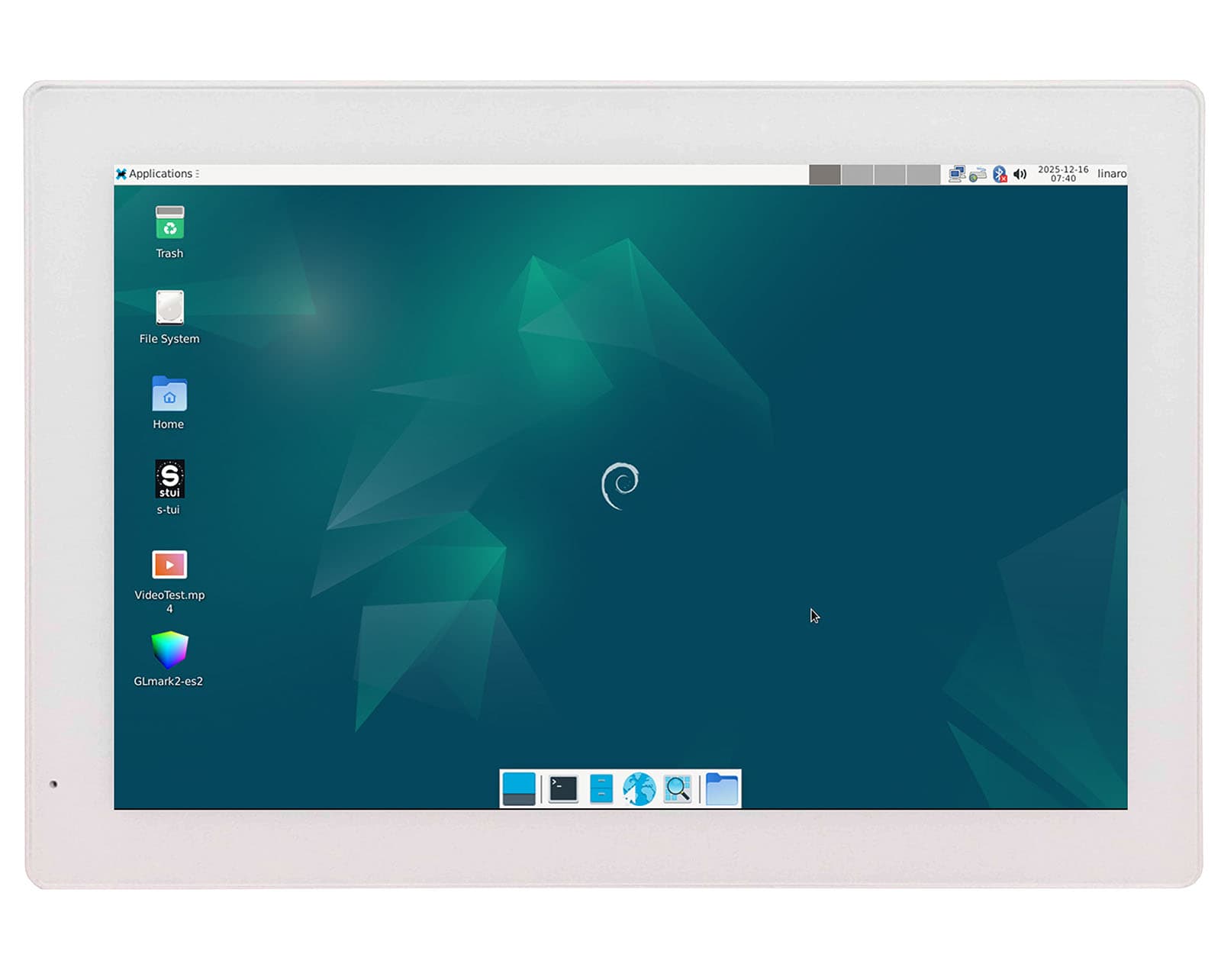

Диагонал на екрана

10.1"

Разделителна способност

1280*800

Яркост

400 NIT

Сензорен екран

Capacitive

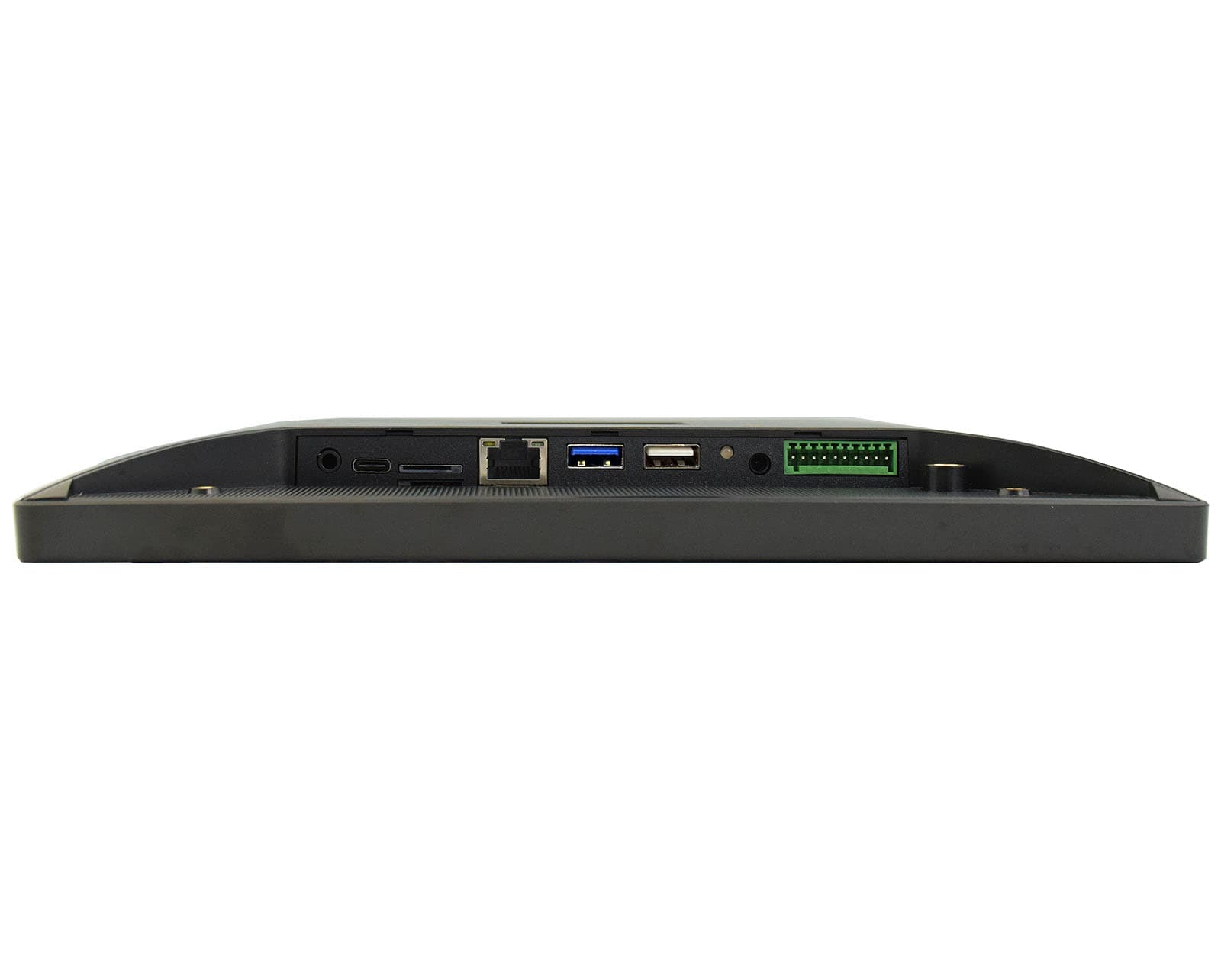

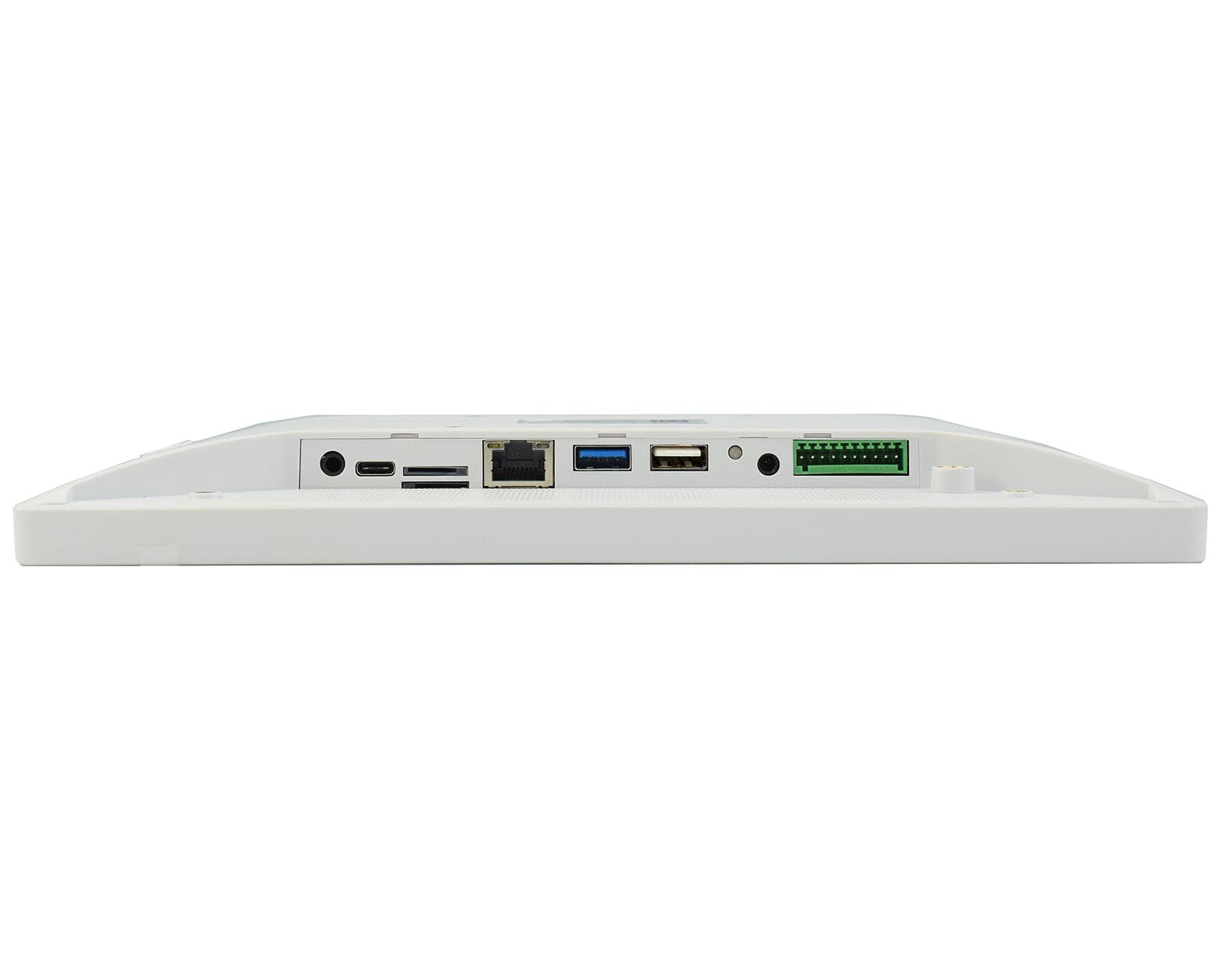

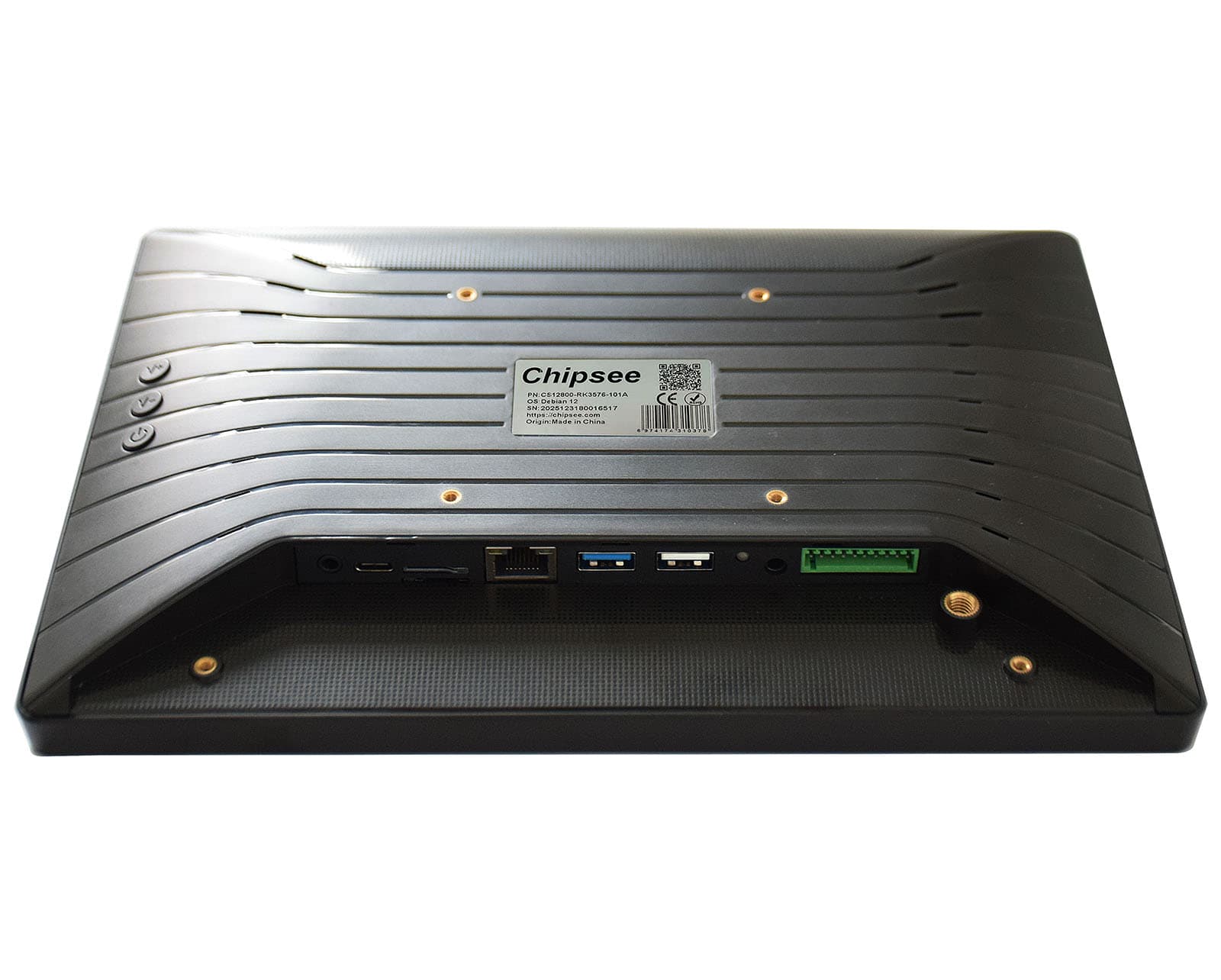

USB

(USB-C can’t be used together with USB-A 3.0 port); 1 x USB 2.0 type-A Host; 1 x USB 3.0 type-A Host; 1 x USB Type-C OTG

CAN

0 x CAN by default; 1 x CAN FD BUS is optional. Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps.

GPIO

Not supported

HDMI

Not supported

RS232

2 x RS232

RS485

1 x RS485 by default; up to 2 x RS485 (optional)

Реле

1 x relay with “Normally Connected” and “Normally Open” output

Ethernet

(no support for PoE); 1 x Giga LAN

Wi-Fi / Bluetooth

YES

4G

Optional

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Зумер

Onboard, driven by GPIO

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Входно захранване

15-30V DC

Консумация

7.5W typical; 9W Max

Работна температура

-20°C ~ 70°C.

Ток при 15 V

500mA typical; 600mA Max

Операционна система

Android; Buildroot; Debian; Ubuntu

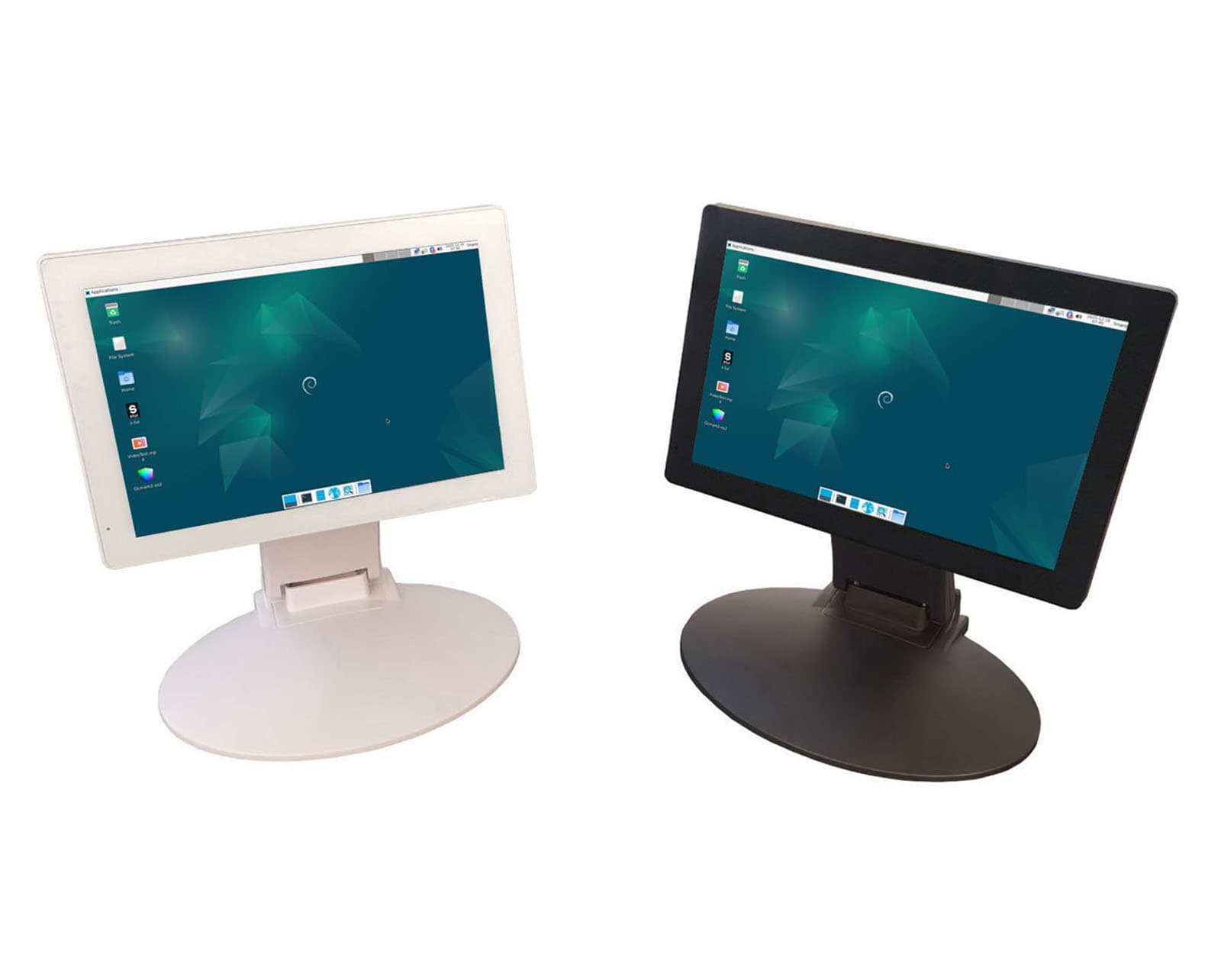

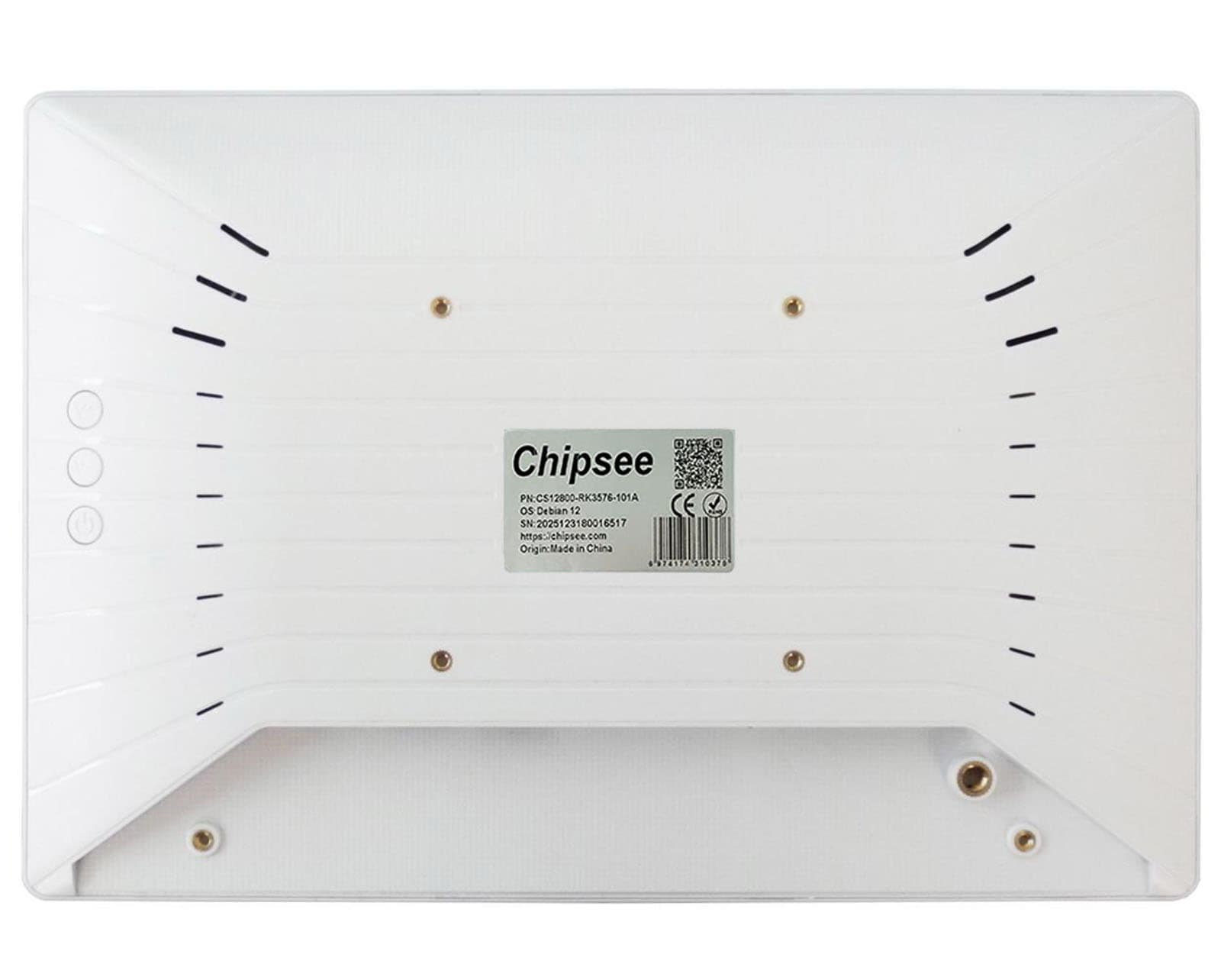

Начин на монтаж

Stand; VESA

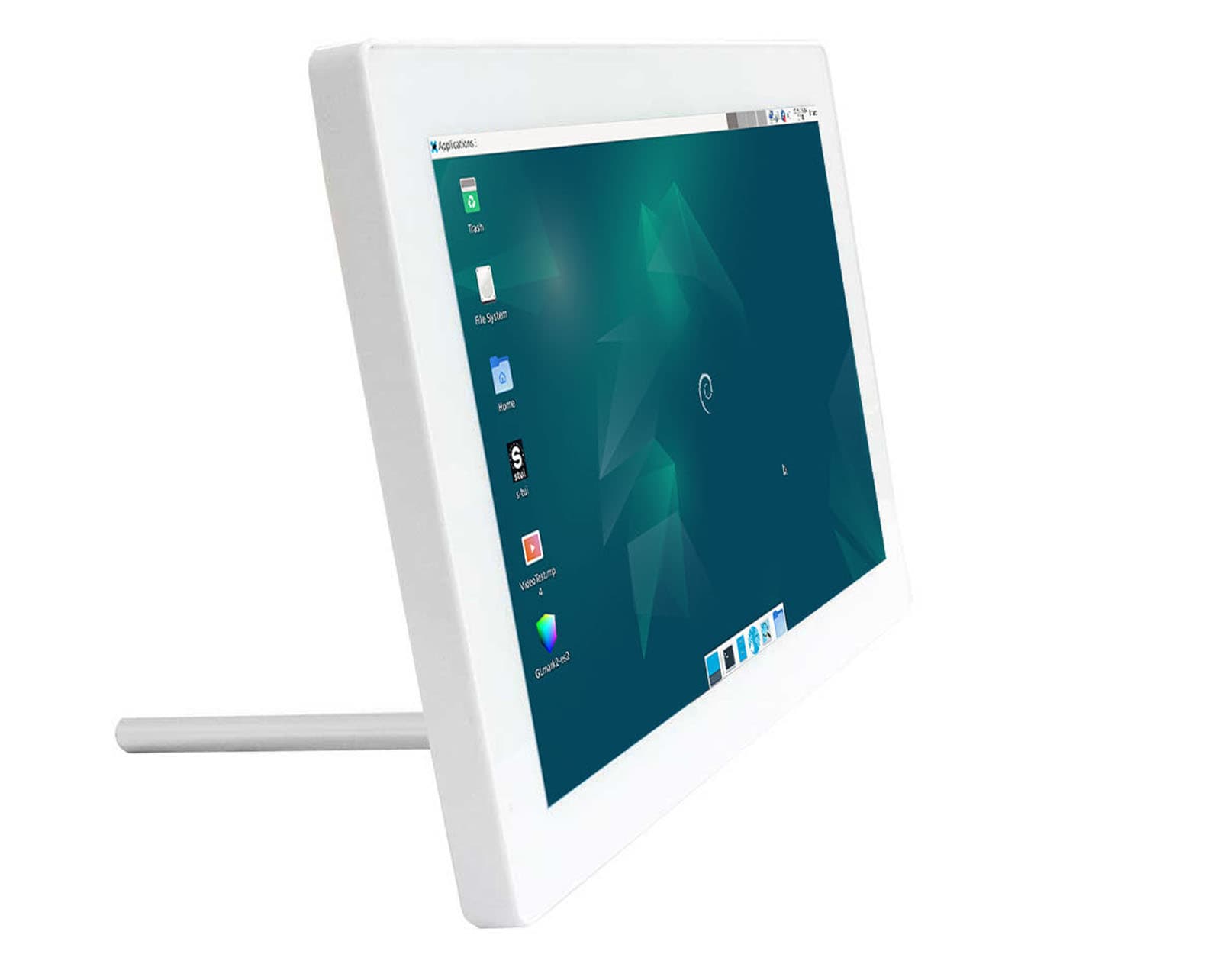

Цвят

Black; White
